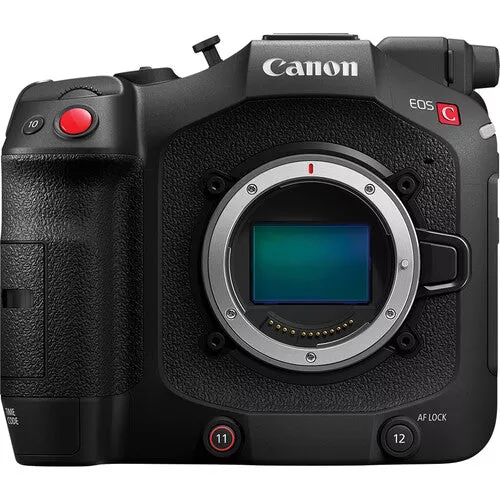

Canon EOS C80 6K Full-Frame RF-Mount Cinema Camera

Canon EOS C80 6K Full-Frame RF-Mount Cinema Camera

The Canon EOS C80 6K Full-Frame Cinema Camera is a compact RF-mount production camera built for 6K RAW acquisition, oversampled 4K video, and professional multicamera workflows. Its back-illuminated stacked sensor, triple-base ISO, advanced autofocus, internal ND filters, and 12G-SDI connectivity support documentary, commercial, broadcast, and narrative production.

Designed for solo operators and compact crews, the EOS C80 records 12-bit RAW internally and reaches 4K 120p or 2K 180p for detailed slow motion. Dual UHS-II SD slots support relay, backup, proxy, and mixed-format recording, while the articulating touchscreen and lightweight body streamline handheld, gimbal, drone, shoulder, and tripod configurations.

Canon Log 2 provides up to 16 stops of dynamic range, while Canon Log 3, HDR gamma options, custom LUT support, and 6K oversampling offer flexible color workflows. Built-in Wi-Fi, Gigabit Ethernet, Camera to Cloud compatibility, SRT streaming, separate SDI and timecode connections, and professional audio inputs help the camera integrate into connected production environments.

Key Features

• 6K Full-Frame Stacked Sensor: Uses a back-illuminated design for efficient light capture, fast readout, and detailed oversampled 4K imagery.
• Triple-Base ISO: Selects ISO 800, 3200, or 12,800 in RAW and Canon Log workflows to preserve dynamic range across changing light levels.
• Internal 12-Bit RAW Recording: Captures full-frame 6000 x 3164 footage at up to 29.97p or Super 35mm 4368 x 2304 footage at up to 59.94p.
• High-Frame-Rate Capture: Records up to DCI 4K 120p and 2K 180p for slow-motion commercial, sports, music, and action footage.
• Dual Pixel CMOS AF II: Tracks people and animals across a wide sensor area while supporting face, eye, head, and body detection.
• Motorized ND Filters: Provides 2, 4, and 6 stops of filtration, with extended 8- and 10-stop settings for bright shooting conditions.
• Professional Video Interfaces: Supplies separate 12G-SDI and timecode BNC connectors, full-size HDMI output, USB-C, and Gigabit Ethernet.
• Connected Production Workflow: Supports proxy transfer, IP streaming, remote camera control, internal Wi-Fi, and cloud-based collaboration.

Technical Specifications

Camera and Imaging

• Model: Canon EOS C80
• Manufacturer Part Number: 6389C002
• Lens Mount: Canon RF
• Compatible Native Lenses: Canon RF, RF-S, and RF cinema lenses
• Adapted Lens Support: Canon EF and EF cinema lenses with a compatible RF-to-EF adapter; PL lenses with the optional PL-RF adapter
• Lens Metadata: Cooke /i communication supported through the optional PL-RF adapter
• Sensor Type: Full-frame back-illuminated stacked CMOS
• Sensor Modes: Full-frame and Super 35mm crop
• Total Sensor Resolution: Approximately 26.67 megapixels, 6202 x 4300
• Maximum Effective Resolution: Approximately 19.05 megapixels, 6008 x 3170
• Pixel Size: 6 x 6 micrometers
• Full-Frame Imaging Area: Up to 36 x 19 mm
• Super 35mm Imaging Area: Up to 26.2 x 13.8 mm
• Image Stabilization: Five-axis digital stabilization with compatible lens coordination
• Dynamic Range: Up to 16 stops with Canon Log 2; up to 14 stops with Canon Log 3
• Color Spaces: Cinema Gamut, BT.2020 Gamut, and BT.709 Gamut
• Production Approval: Meets Netflix capture requirements and is approved for use on Netflix productions

Recording Formats and Resolutions

• RAW Format: 12-bit Cinema RAW Light
• Additional Recording Formats: XF-AVC, XF-AVC S, and XF-HEVC S
• Compression: H.264 AVC and H.265 HEVC with Intra-frame and Long GOP options
• Maximum Full-Frame RAW Resolution: 6000 x 3164 at up to 29.97p, 25p, or 24p depending on system frequency
• Maximum Super 35mm RAW Resolution: 4368 x 2304 at up to 59.94p or 50p
• DCI 4K Recording: 4096 x 2160
• UHD 4K Recording: 3840 x 2160
• DCI 2K Recording: 2048 x 1080
• Full HD Recording: 1920 x 1080
• Maximum 4K Slow Motion: Up to 120p
• Maximum 2K Slow Motion: Up to 180p in full-frame mode or 120p in Super 35mm mode
• Maximum Video Bit Rate: Up to 678 Mbps in RAW or 600 Mbps in XF-AVC and XF-AVC S modes
• Color Sampling: Up to 4:2:2 10-bit in XF-AVC, XF-AVC S, and XF-HEVC S
• System Frequencies: 59.94 Hz, 50 Hz, and 24 Hz
• Photo Format: JPEG
• Maximum Continuous Clip Length: Up to six hours for supported non-RAW recording modes

Recording Media

• Card Slots: Two SD card slots
• Compatible Media: SD, SDHC, and SDXC cards
• Bus Support: UHS-II
• Supported Video Speed Classes: V30, V60, and V90
• Recommended Media: V90 UHS-II cards for recording modes with the highest data rates
• Dual-Slot Functions: Relay recording, double-slot backup, proxy recording, sub recording, and different-format simultaneous recording
• Special Recording Modes: Slow and fast motion, pre-recording, continuous recording, frame recording, and interval recording

Exposure and Color Controls

• Standard ISO Range: ISO 160 to 25,600
• Extended ISO Range: ISO 100 to 102,400
• RAW and Log Base ISO: ISO 800, 3200, and 12,800 with automatic selection available
• Canon 709, Wide DR, PQ, and HLG Base ISO: ISO 400, 1600, and 6400
• BT.709 Standard Base ISO: ISO 160, 640, and 2500
• Gain Range: Up to -6 to 54 dB depending on base sensitivity and extended-range settings
• Fine Gain Adjustment: 0.5 dB increments in supported configurations
• Shutter Modes: Off, speed, angle, Clear Scan, slow shutter, and Auto Clear Scan
• Shutter Speed Range: 1 second to 1/2000 second, with additional slow-shutter settings
• Shutter Angle Range: 11.25 to 360 degrees
• Auto Clear Scan Detection: Detects light-source frequencies from 50 to 2011.2 Hz to reduce visible flicker
• White Balance: Auto, daylight, tungsten, settings A and B, and 2000 to 15,000K color temperature
• ND Filter: Motorized clear, 2-stop, 4-stop, and 6-stop settings; 8-stop and 10-stop extended settings
• Gamma Options: Canon Log 2, Canon Log 3, Canon 709, BT.709 Wide DR, BT.709 Standard, PQ, and HLG
• Custom LUT Support: User-imported look files and monitoring conversion support

Autofocus and Monitoring

• Autofocus System: Dual Pixel CMOS AF II
• Subject Detection: Human eye, face, head, and body detection; animal eye, face, and body detection
• Focus Modes: Continuous AF, One-Shot AF, manual focus, tracking AF, and focus lock
• Manual Focus Integration: Tracking can resume automatically after manual adjustment with the lens focus ring
• High-Speed Autofocus: Current firmware supports autofocus at 100 and 120 fps and subject detection from 72 to 120 fps in compatible 4:2:2 10-bit modes
• LCD: 3.5-inch high-brightness articulating touchscreen
• LCD Resolution: Approximately 2.76 million dots, 1280 x 720 RGB
• LCD Coverage: 100%
• Viewfinder: None
• Electronic Level: Roll and tilt indication
• Monitoring Tools: Focus guide, peaking, magnification, false color, zebras, waveform monitor, markers, and view assist

Audio

• Professional Audio Inputs: Two balanced three-pin mini-XLR microphone or line inputs
• Phantom Power: Supported through the mini-XLR inputs
• Auxiliary Audio Input: 3.5mm stereo microphone or line input with plug-in power support
• Built-In Microphone: Stereo
• Headphone Output: 3.5mm stereo jack
• Linear PCM Recording: Four channels, 24-bit, 48 kHz
• AAC Recording: Two channels, 16-bit, 48 kHz in compatible XF-AVC S and XF-HEVC S modes

Video, Control, and Network Connections

• SDI Output: One BNC connector supporting 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI
• Timecode: Separate BNC input and output connector
• HDMI Output: Full-size Type A connector
• HDMI RAW Output: Up to 6K 59.94p or 50p for compatible external recording devices
• USB: USB-C with USB 3.2 Gen 1 and UVC support
• Remote Terminal: 2.5mm connection
• Ethernet: RJ45 with 1000BASE-T support
• Wireless Networking: Internal IEEE 802.11a/b/g/n/ac Wi-Fi on supported 2.4 and 5 GHz bands
• Remote Protocol: Canon XC Protocol
• IP Streaming: Supports SRT and additional compatible IP streaming protocols
• Cloud Workflow: Native proxy transfer support for Frame.io Camera to Cloud
• Mobile Control: Compatible with Canon multicamera and remote-control applications
• Multi-Function Shoe: 21-pin intelligent accessory shoe
• Current Firmware Functions: USB gimbal control for recording, iris, shutter, ISO, and focus; playback view assist; and SRT automatic reconnection

Power and Physical Specifications

• Battery System: Canon BP-AN and BP-A series
• Included Battery: BP-A30N
• Compatible Batteries: BP-A30N, BP-A60N, BP-A30, and BP-A60
• External Power: 24V DC, 23.7 to 25V input range
• Maximum Power Consumption: Approximately 19.6W, depending on recording configuration
• Approximate BP-A30N Recording Time: 125 to 180 minutes depending on sensor mode, codec, resolution, and frame rate
• Body Dimensions: 6.3 x 5.4 x 4.6 inches W x H x D
• Configured Dimensions: 6.3 x 10.9 x 6.8 inches W x H x D with handle, microphone holder, and BP-A30N battery
• Body Weight: Approximately 2.9 lb
• Shooting Weight: Approximately 3.4 lb with BP-A30N battery and two cards
• Configured Shooting Weight: Approximately 3.9 lb with handle, microphone holder, BP-A30N battery, and two cards
• Mounting Points: One 3/8″-16 and two 1/4″-20 threaded mounting points
• Performance Temperature Range: 32 to 104 degrees Fahrenheit at up to 85% relative humidity
• Operating Temperature Range: 23 to 113 degrees Fahrenheit at up to 60% relative humidity

What’s In the Box

• Canon EOS C80 Digital Cinema Camera
• Handle Unit
• Canon BP-A30N Battery Pack
• Canon CA-CP300B Compact Power Adapter
• Canon CG-A20 Battery Charger
• Microphone Holder
• Canon SS-1200 Shoulder Strap
