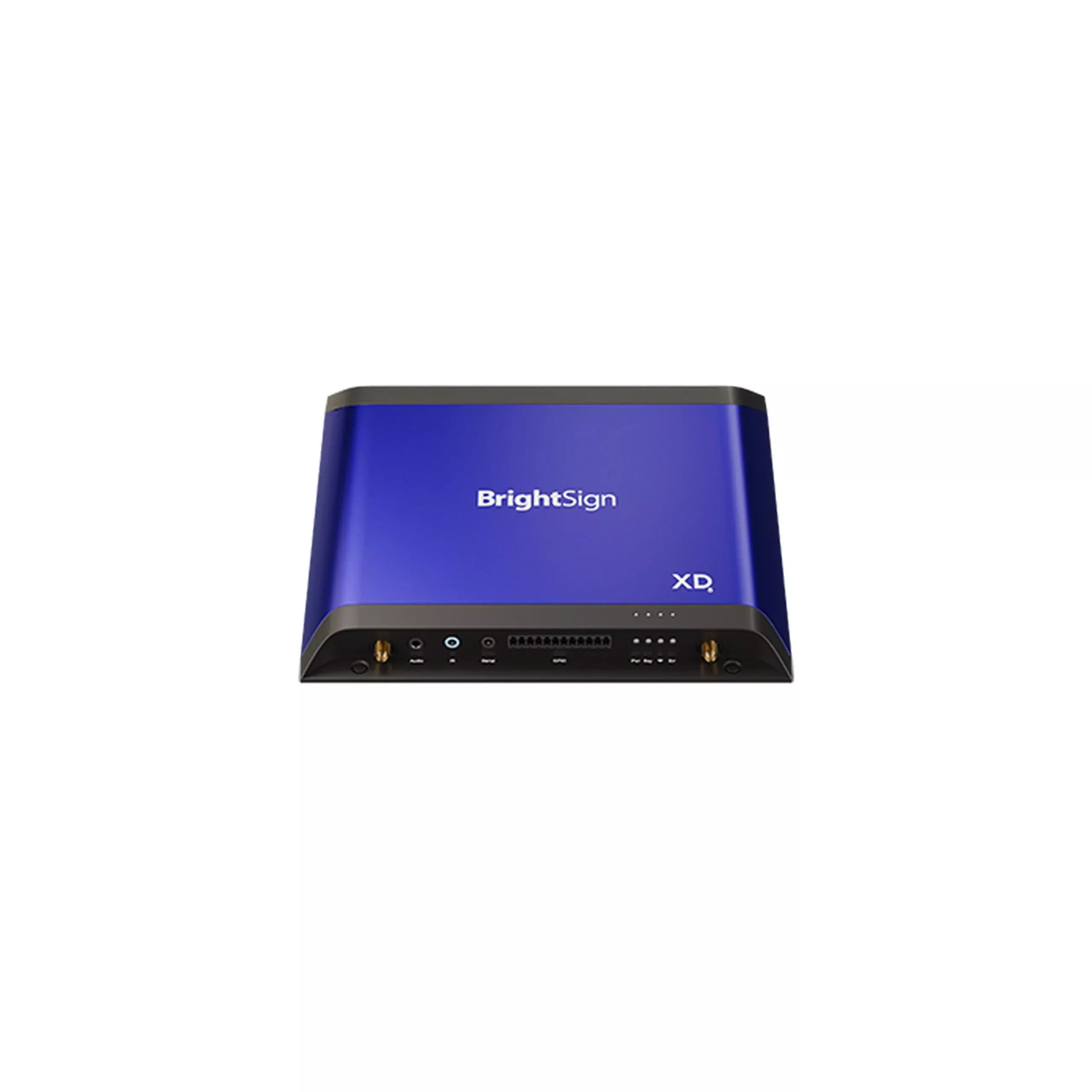

BrightSign XD1035 4K Expanded I/O Player
BrightSign XD5 has been redesignedto power state of the art digital signage experiences featuring PoE, a thinnerdesign and simplified Wi-Fi & SSD install. Its updated architecturedelivers enhanced video and motion graphics at faster frame rates in 4Klandscape or portrait orientations. Reengineered memory management makes HTML& JavaScript content faster and more responsive in presentations.BrightSign XD5 will not only stabilize our supply chain, but also exceed yourenterprise digital signage needs now and into the future.
Enterprise+ HTML Performance
- Dynamic memory allocation
- Optimized motion graphics
- Fast, smooth & responsive 4Kcontent
- Full OpenGL ES support
Enhanced 4K Video Engine
- Hardware accelerated 4K rotation
- Dynamic mosaic mode
- 4K60p video
- 4K images
Perfected Industrial Design
- Power over Ethernet (PoE+)
- Thinner footprint
- Simplifed Wi-Fi and SSDinstallation
- Patented aluminum enclosure todissipate heat
BrightSign OS
- Purpose-built for connecteddigital signage
- Delivers high reliability &security
- Unlocks features for full signagepotential
- Guaranteed updates & longevity
Technical Specifications
VIDEO & HTML ENGINES
Native 4K@60p video
Hardware accelerated 4K rotation
Dynamic Mosaic Mode
4K image and motion graphicsupport
Dual video decoding
HDR10 and HLG
HTML5 performance level:Enterprise+
Dynamic memory allocation
MEDIA FORMATS
Video codecs for 4K content:H.265/H.264
Video Containers for 4K H.265content: .ts, .mov, .mp4, .mkv
Video Codecs for Full HD: H.265,H.264(MPEG-4, Part 10), MPEG-2
Video Containers for Full HDcontent: .ts, .mpg, .vob, .mov, .mp4, .m2ts
Images: BMP, JPEG, PNG
Audio: MP2, MP3, AAC and WAV (AC3is passed through)
HTML5: Chromium-based, Open GL|ES
HARDWARE INTERFACES
Locking Power Connector
External micro SD Slot (SDHC andSDXC); SDHC Storage via SDXC (up to 2TB)
M.2 SSD PCIe Interface
Dual USB High Speed Host Ports -Type A & C (also supports content updates)
12-pin Phoenix GPIO port with 8bidirectional GPIOs
3.5mm RS-232 Serial Port
3.5mm IR In/Out
3.5mm Audio Out (analog &SPDIF digital)
HDMI™ Out (2.0a)
Gigabit Ethernet
Power over Ethernet (PoE+)
M.2 (E) Keyed Wi-Fi/BluetoothConnector
Status LEDs
Reset and Services Button
Real Time Clock
ACCESSORIES
USB Button Pads
Dual Antenna Wireless/BluetoothModule
MicroSD Class 10 Cards (variouscapacities)
MISCELLANEOUS
Perfected Industrial Design -Simplified Wi- Fi & SSD installation & Patented aluminum enclosuredissipates heat
Power: 12V / 3A (30 Watts)
Multi-Country Power &Regulatory Approvals
Built-in Wall Mounting Brackets
1 year warranty, parts and labor
Dimensions (W x H x D)
205 x 19.2 x 185.9 mm
8.07 x 0.756 x 7.32 in
