Brainstorm SR-112 Plus SR-TCG SR-112 Distripalyzer with Time Code Generator
Used extensively in live applications, the SR line hasbecome a standard for show control.
The SR-112 reshapes and distributes timecode through its 12outputs, sending it over long lines with no signal degradation. It analyzes thesource for quick diagnostic and generates or repairs timecode, locked to videoif required.
The industry standard SR-112 is designed to distribute timecode through its 12 buffered outputs while analyzing it. The reshaper sendsclean time code, even over long cables, making it ideal for live environments.

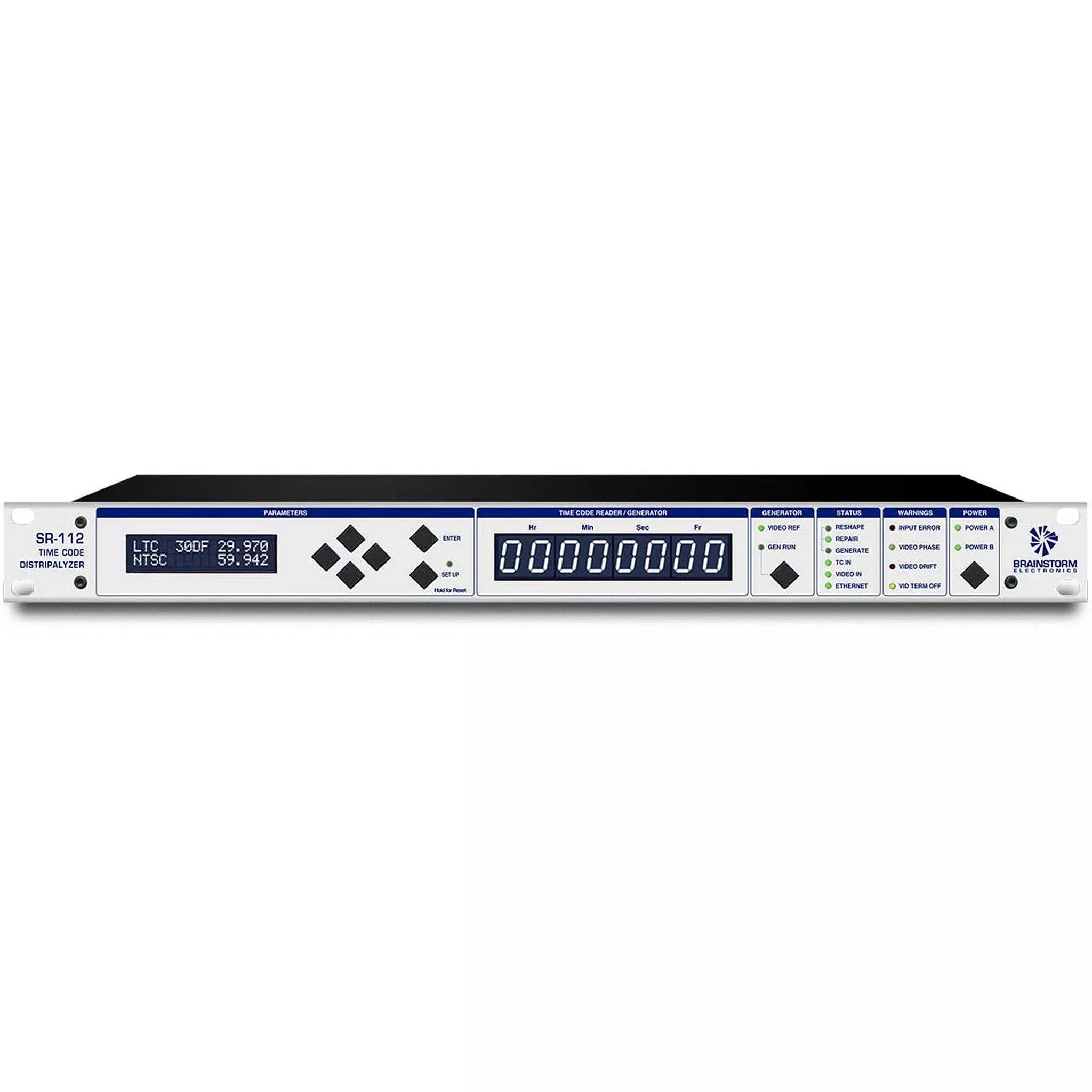

The front panel includes a large 8 digit reader and an LCDdisplay showing the units status and reporting errors as they are detected. Allmodern SMPTE and EBU SD/HD rates are supported.
With the option TCG, the SR-112 can also generate new timecode or repair exisitng one.
Distributor / Reshaper
The SR-112 distributes and reshapes time code through a 1x12distributor.
Reshaping
The Brainstorm Time Code Distributors are more than audioDA’s: they reshape the signal before distributing it and by doing so, theSR-112 eliminates amplitude distortions and input level fluctuations.
Output Levels
Output levels are adjustable individually via the OutputLevel menus. Since the signal is reshaped, output levels remain constant,regardless of the input level.
Time Code Generator (TCG) Included Firmware
The included TCG module has 2 main functions: Repairing timecode and generating new time code.
Repairing Time Code
In REPAIR mode, the SR-112 fixes drop outs by regeneratingthe incoming code (jam-sync). It can also correct video phase when it is misaligned.
Generating new Time Code
In GENERATE mode, the SR-112 generates new time code. Starttime, format and frame rate can be set. The generator can be genlocked toexternal video.
Please Note: The SR-112-SR-TCG is the SR-112Distripalyzer with Time Code Generator Only.
Key Features
- 1 x 12 Distributor / Reshaper
- Designed to send clean time code over long cables
- Eliminates level fluctuations
- Buffered outputs; balanced or unbalanced
- Time Code Analyzer
- Identifies time code format, reports errors (drop outs.)
- Monitors video phase
- Generates a comprehensive report via Ethernet
- Time Code Generator
- Generates new time code with or without video reference
- Repairs faulty time code (jam sync)
Technical Specifications
SR-112 Time Code Distripalyzer
TC Distributor
1×12
TC Input Connector
XLR Female
TC Output Connectors
1 x DB-25 F (8 outputs – Tascam/Avid analog pinconfiguration), 2 x XLR M, 2 x 1/4” TRS
Input Signal
SMPTE/EBU Longitudinal Time Code
Impedance
20K OHMS bal.; 10K OHMS unbal.
Level
-30dbU min; +20dbU Max
Output Signal
Waveform: switchable rise time: 1us (square); 25us (SMPTE);50us (EBU)
Impedance
600 OHMS bal.; 300 OHMS unbal.
Level
adjustable: full off to +8dbU bal.; to + 2dbU unbal.
Amplitude distortion
less than 2%
Status LEDs
Reshape Generate (TCG option) Video in Repair (TCG option)TC In Ethernet
Warning LEDs
Input Error (red) Video Drift (red) Video Phase (yellow)Video Termination Off (yellow)
Time Code Reader
The 8-digit LED Display indicates hours, minutes, secondsand frames. The display also flashes error descriptions when detected.
LCD Display
In addition to being used for SET UP, the 32-character LCDdisplay indicates the following:
Format and rate of the incoming time code
Format and rate of the video reference
User Bits
Video Phase
List of errors
Connectors
Time Code in
XLR Female (x 1)
Video Ref
BNC (x 1)
Time Code outputs
DB25 (1x) – Tascam/Avid analog pin configuration: outputs1-8, XLR Male (2x): outputs 9-10, 1/4” jacks (2x) – TRS: outputs 11-12
Ethernet
RJ45 jack (x 1)
Power
4 pin circular (x 2)
Power
12VDC @ 3A
Redundancy
two separate supplies can be connected to the 2 separatepower inputs. If one supply fails, the other takes over and an error isreported. The faulty supply can be swapped without having to power down.
Time Code Generator
Modes of Operation
Generate Repair
Generator Formats
24 fps – speed: 23.976
24 fps – speed: 24.000
25 fps – speed: 25.000
30 DF – speed: 29.970
30 ND – speed: 29.970
30 DF – speed: 30.000
30 ND – speed: 30.000
Repair Modes
Copy – continuously copies the time code input, as long asit continues to increment.
Jam – a one-time copy of the input time code is transferred,then generator increments as in GENERATE mode.
Show – a special setting for live shows where no frames areskipped or duplicated
Repair Flywheel Times: 5 Fr, 15 fr, Infinity
Repair Ramp up Time: None to 9.5 sec in 0.5 sec increments
Item Includes
1x SR-112 Distripalyzer with TCG Preinstalled
1x Power Supply
