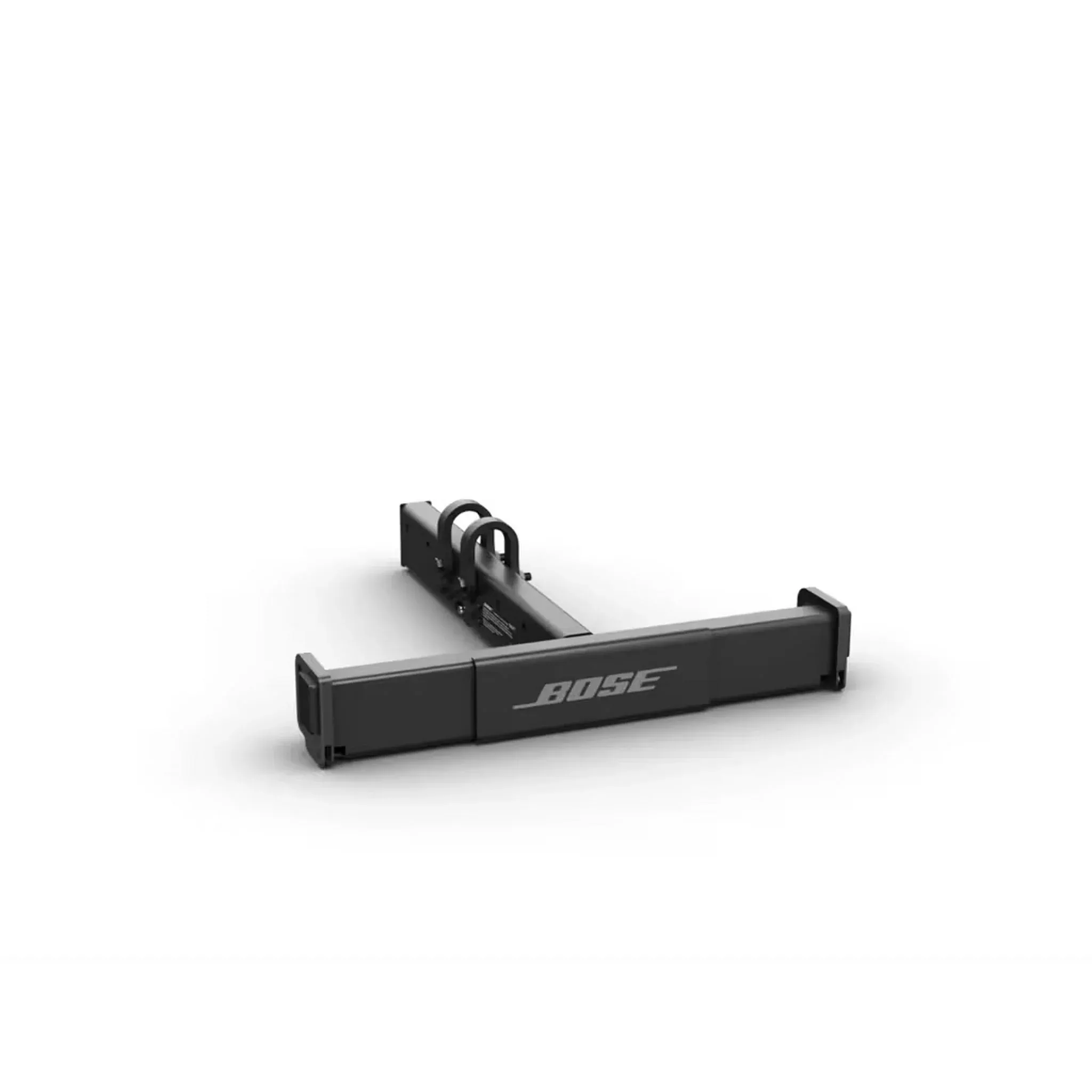

Bose Professional ShowMatch SMAFT T-Bar Array Frame
The Bose Professional ShowMatch SMAFT T-Bar Array Frame is designed to support overhead suspended arrays consisting of ShowMatch mid/high loudspeaker modules only. It provides a secure and manufacturer-approved solution for flown array configurations in professional audio installations.
Built for permanent indoor use, the SMAFT frame offers a high working load limit and integrates directly with ShowMatch rigging hardware. Its T-bar design supports stable suspension while maintaining proper array alignment and system safety.
Engineered to meet the demands of professional venues, the SMAFT is suitable for theaters, houses of worship, auditoriums, and other fixed-install environments requiring suspended ShowMatch arrays.
Key Features
- T-Bar Array Frame Design: Enables overhead suspension of ShowMatch mid/high modules
- High Load Capacity: Rated for demanding professional flown array applications
- Manufacturer-Approved Rigging: Designed specifically for Bose Professional ShowMatch systems
- Indoor Installation Use: Intended for permanent indoor audio installations
- Quick-Pin Compatibility: Includes hardware for fast and secure array assembly
Technical Specifications
Product Type
T-bar array frame for suspended loudspeaker arrays
Compatible Systems
Bose Professional ShowMatch mid/high array modules
Application
Indoor use
Working Load Limit (WLL)
1400 lb (630 kg)
Available Colors
Black
Product Dimensions (H × W × D)
117 × 727 × 712 mm (4.6 × 28.6 × 28.0 in)
Net Weight
18.4 kg (40.5 lb)
What’s in the Box
(1) ShowMatch SMAFT T-Bar Array Frame
(4) Quick Pins
(1) Installation Guide
