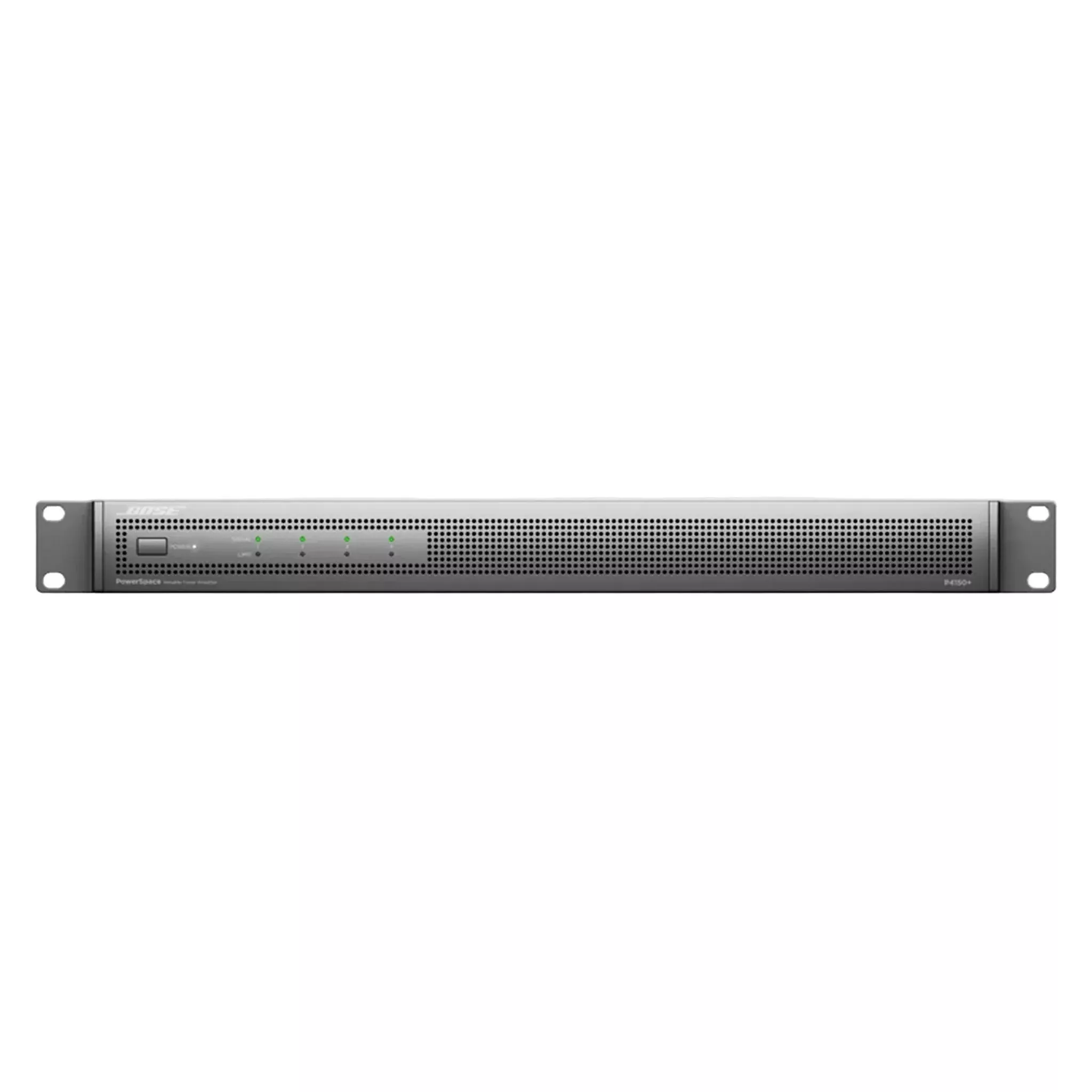

Bose Professional PowerSpace P4150+ Power Amplifier
Bose Professional PowerSpace P4150+ is a commercial power amplifier with integrated DSP designed for quick-turn distributed audio installations. It enables four-channel amplification and signal processing within a single rack-mounted unit for installers and system integrators. This makes it ideal for commercial environments where efficient setup, predictable performance, and flexible zone control are required.
The amplifier provides Class D amplification with load-independent outputs that support both low-impedance and 70/100V systems without bridging. Integrated DSP supports mixing, routing, equalization, delays, limiters, and loudspeaker presets through a browser-based configuration utility. Network connectivity enables configuration and monitoring using standard web browsers.
The P4150+ supports scalable commercial sound systems with simplified commissioning and intuitive end-user operation. Optional ControlCenter zone controllers allow local volume and source control. Automatic standby functionality reduces power consumption during idle periods in installed environments.
Key Features
- Four-Channel Amplification: Delivers 150 W per channel for distributed commercial audio systems
- Integrated DSP: Supports mixing, routing, EQ, delays, limiters, and loudspeaker presets
- Browser-Based Configuration: Built-in webserver enables setup and monitoring via standard browsers
- Load-Independent Outputs: Supports 4–8 Ω and 70/100V systems without bridging
- I-Share Output Mode: Combines channel current to deliver double power to a single zone
- Opti-Voice Paging: Provides smooth transitions between music and paging audio
- Auto-Standby Operation: Reduces power consumption when audio signal is inactive
- Zone Controller Support: Compatible with optional ControlCenter CC-1, CC-2, and CC-3 controllers
Technical Specifications
Amplifier Class
Class D
Number of Channels
4
Rated Power, Symmetrical
150 W per channel
Maximum Peak Power, Symmetrical
300 W
Frequency Response
20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω
20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V
Dynamic Range
≥ 100 dB at rated power, A-weighted
THD+N
<0.04% at 1 kHz, 4–8 Ω, 70V/100V
Channel Separation (Crosstalk)
> 80 dB at 1 kHz
> 65 dB at 20 kHz
Gain, Low-Impedance
29 dB
Gain, High-Impedance
35 dB (70V mode)
38 dB (100V mode)
Analog Audio Inputs
4 balanced channels
2 unbalanced channels
Input Connectors
(3) 3-pin Euroblock
(1) 4-pin Euroblock
(2) RCA stereo pairs
Analog Audio Outputs
4 loudspeaker outputs
2 auxiliary line outputs
Output Connectors
(1) 8-terminal block
(1) 3-pin Euroblock, line
Integrated DSP
Yes
DSP Sample Rate and Resolution
48 kHz / 24-bit A/D and D/A conversion
Audio Latency
<1 ms, analog input to analog loudspeaker output
Mains Voltage
100–240 VAC (±10%), 50/60 Hz
AC Power Consumption
25 W auto-standby
325 W maximum
Cooling System
Microprocessor-controlled variable-speed fans
Front-to-back airflow
Product Dimensions (H × W × D)
1.7 in × 19.0 in × 16.5 in
44 mm × 483 mm × 420 mm
Net Weight
14.6 lb (6.6 kg)
Shipping Weight
19.0 lb (8.6 kg)
Rack Space
1 RU
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Warranty Period
5 years
What’s in the Box
(1) PowerSpace P4150+ power amplifier
(1) IEC power cord
(1) Installation guide
(1) 2-pin Euroblock connector
(1) 4-pin Euroblock connector
(5) 3-pin Euroblock connectors
(2) I-Share jumpers
(10) Terminal forks, 14–16 AWG
