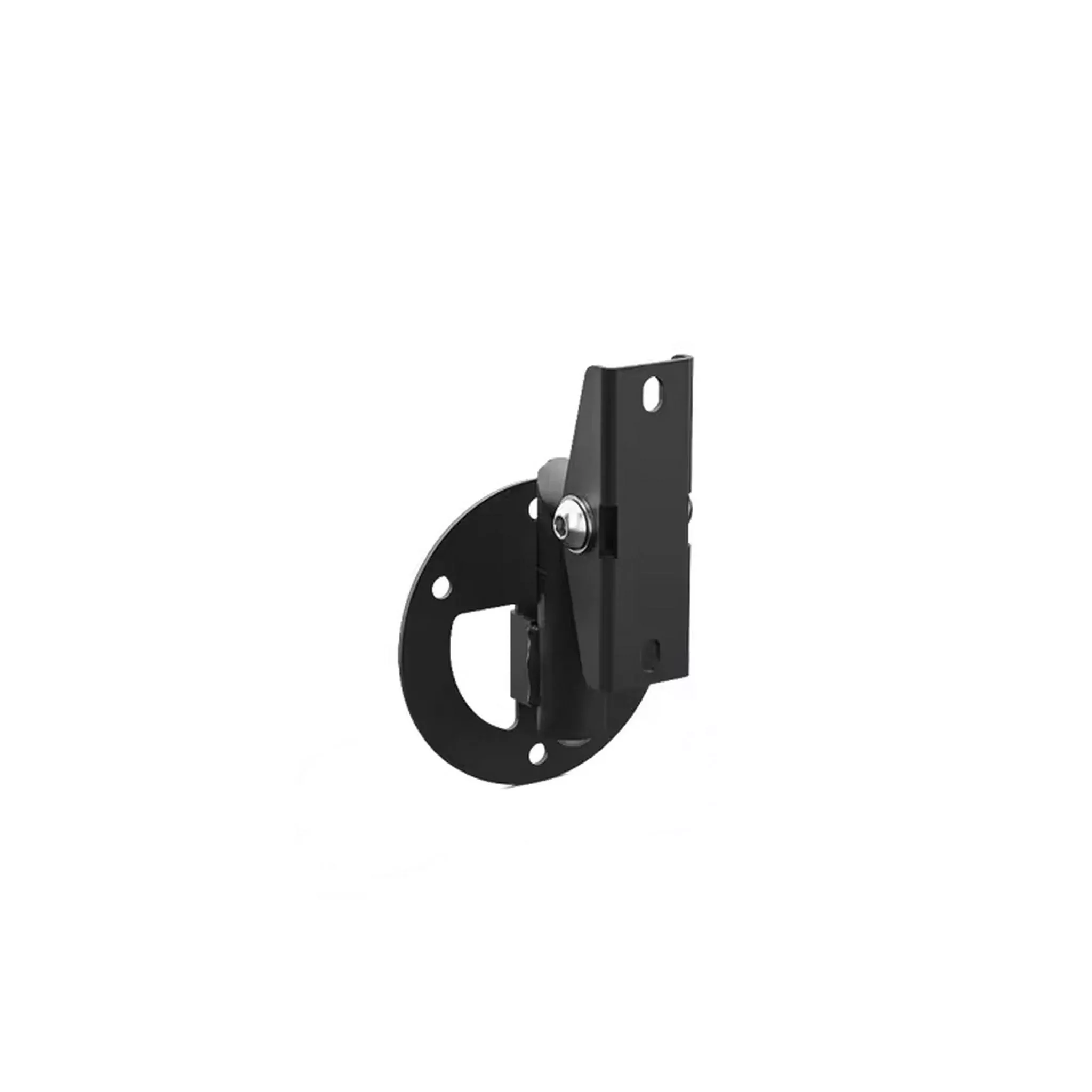

Bose Professional DesignMax Pan and Tilt Small Bracket
Bose Professional DesignMax Pan and Tilt Small Bracket is a mounting accessory designed for installing compatible DesignMax surface-mount loudspeakers in fixed indoor environments. It enables both pitch and yaw adjustment when the loudspeaker is mounted in either horizontal or vertical orientation. This makes it ideal for installations where precise aiming and alignment are required.
The bracket attaches to the rear threaded inserts of compatible DesignMax loudspeakers and supports wall or ceiling mounting. It allows installers to adjust speaker orientation after installation to optimize coverage. The design integrates into permanent mounting configurations.
The bracket supports consistent positioning in commercial and architectural audio installations. Included mounting components assist with installation and finishing. The design is intended for indoor use only.
Key Features
- Pan and Tilt Adjustment: Allows pitch and yaw adjustment for precise loudspeaker aiming
- Dual Orientation Support: Supports horizontal or vertical loudspeaker mounting
- DesignMax Compatibility: Designed for use with compatible DesignMax surface-mount loudspeakers
- Wall and Ceiling Mounting: Suitable for fixed wall or ceiling installations
- Indoor Installation: Intended for indoor-use mounting applications
Technical Specifications
Product Type
Pan and tilt loudspeaker mounting bracket
Compatible Loudspeakers
Bose Professional DesignMax DM3SE surface-mount loudspeaker
Bose Professional FreeSpace FS2SE surface-mount loudspeaker
Mounting Orientation
Horizontal or vertical
Mounting Location
Wall or ceiling
Installation Type
Indoor only
Available Colors
Black
White
What’s in the Box
(1) DesignMax pan and tilt small bracket
(1) Installation key tool
(1) Horizontal adapter plate
(1) Cosmetic cover
