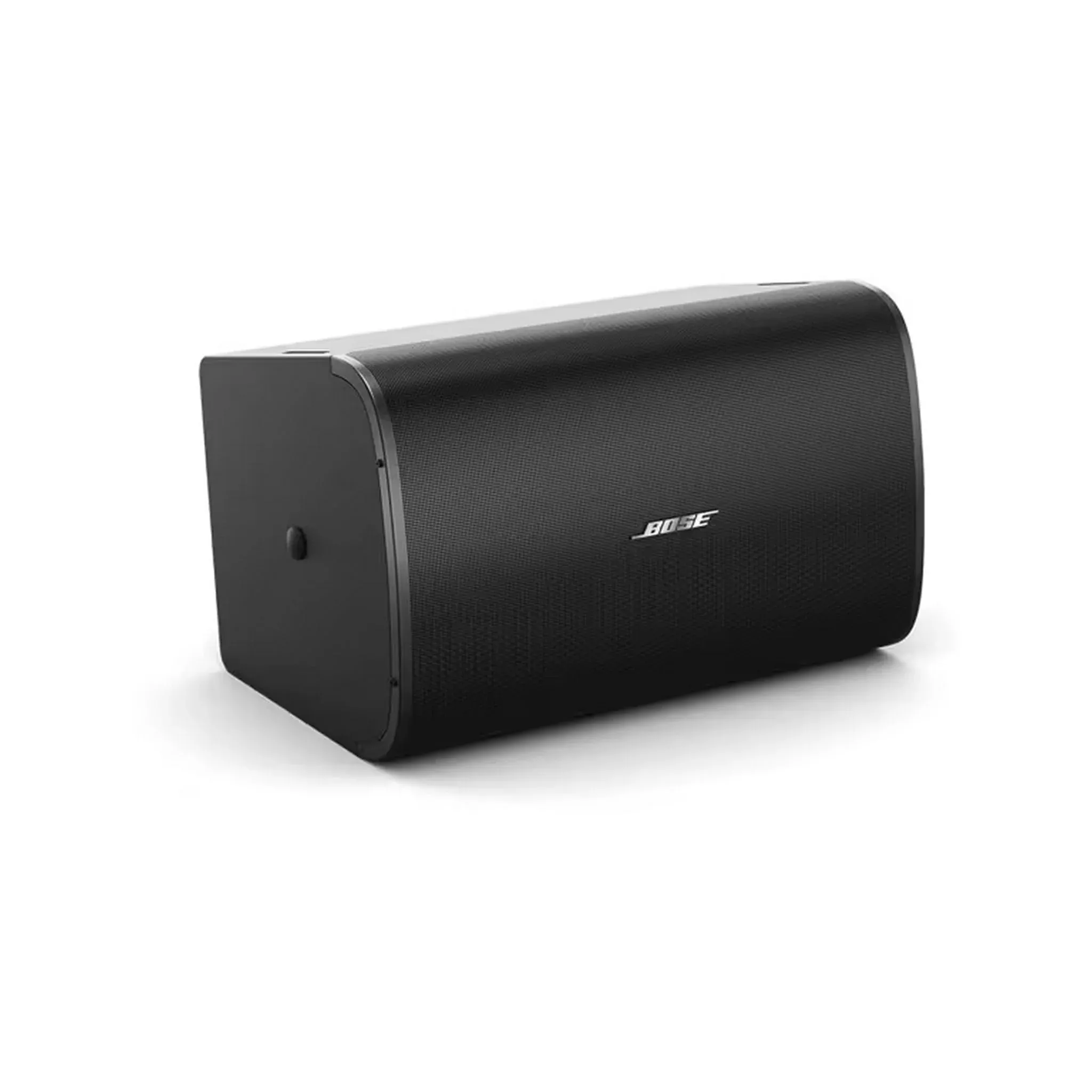

Bose Professional DesignMax DM10S-SUB Surface-Mount Subwoofer (Each)
Bose Professional DesignMax DM10S-SUB is a surface-mount subwoofer designed for indoor commercial audio installations. It enables low-frequency reinforcement for system designers and integrators, supporting DesignMax full-range loudspeaker systems. This makes it ideal for venues where controlled bass performance and compact surface mounting are required.
The subwoofer operates using a single 10-inch low-frequency driver housed in a rigid enclosure. It supports low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. Installation is performed using the QuickHold mounting system with an included U-bracket.
The system supports applications that require extended low-frequency output in distributed audio environments. It is suited for hospitality, retail, worship, and performance spaces. The design allows integration with compatible Bose Professional electronics and signal processing.
Key Features
- 10-inch low-frequency driver for deep bass performance
- 300W continuous power handling for commercial audio systems
- 35 Hz low-frequency extension for impactful bass reinforcement
- Surface-mount subwoofer design with QuickHold U-bracket installation
- 70V/100V transformer support with low-impedance bypass
- Seamless integration with Bose DesignMax loudspeaker systems
- Compact enclosure for discreet installations
- Removable logo for clean visual appearance
Technical Specifications
- General
- Product Model: DM10S-SUB
- Product Type: Passive surface-mount subwoofer
- Application: Commercial installed audio systems
- Environment: Indoor use only
- Driver
- Low-Frequency Driver: 1 × 10″ (254 mm) woofer
- Driver Protection: Recommended high-pass protection at 40 Hz (18 dB/octave)
- Performance
- Frequency Range (-10 dB): 35 Hz – 125 Hz
- Frequency Response (-3 dB): 41 Hz – 108 Hz
- Coverage (Horizontal): Omnidirectional below 200 Hz
- Coverage (Vertical): Omnidirectional below 200 Hz
- Sensitivity (SPL/1 W @ 1 m): 90 dB
- Maximum SPL @ 1 m: 115 dB
- Amplification
- Power Handling (Continuous): 300 W
- Power Handling (Peak): 1200 W
- Nominal Impedance: 8 Ω (transformer bypass)
- Electrical
- Transformer Taps (70V): 20 W, 40 W, 80 W, 150 W, bypass
- Transformer Taps (100V): 40 W, 80 W, 150 W, bypass
- Crossover: 80 Hz – 200 Hz via active crossover DSP
- Recommended Signal Processing: Not required; Bose EQ voicing and SmartBass processing available
- Physical
- Enclosure Material: High-density wood composite with solid color laminate (UV fade-resistant)
- Grille: Perforated steel, powder-coated, paintable, tamper-resistant
- Color: Black (RAL 9005), white (similar to RAL 9003), paintable
- Logo: Rotatable and removable
- Dimensions (H × W × D): 19.8″ × 12.5″ × 12.7″ (speaker); 19.8″ × 12.5″ × 13.6″ (with bracket)
- Net Weight: 35.5 lb (with grille and bracket)
- Shipping Weight: 41.5 lb
- Installation & Mounting
- Mounting System: QuickHold mounting system with included U-bracket
- Safety Attachment: 1 × M8 safety cable insert
- Environmental
- Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
- Compliance
- Safety Ratings: UL-1480A, UL Listed (S5591), NFPA70, CE compliant
Installation & Use Case
The DM10S is designed for commercial installations that require compact, high-performance bass reinforcement.
- Retail stores
- Restaurants and cafés
- Hospitality venues
- Corporate environments
- Background music systems
Package Contents
- (1) Bose DesignMax DM10S subwoofer
- (1) U-bracket
- (1) Installation guide
- (2) Rubber caps
- (2) M8 screws
