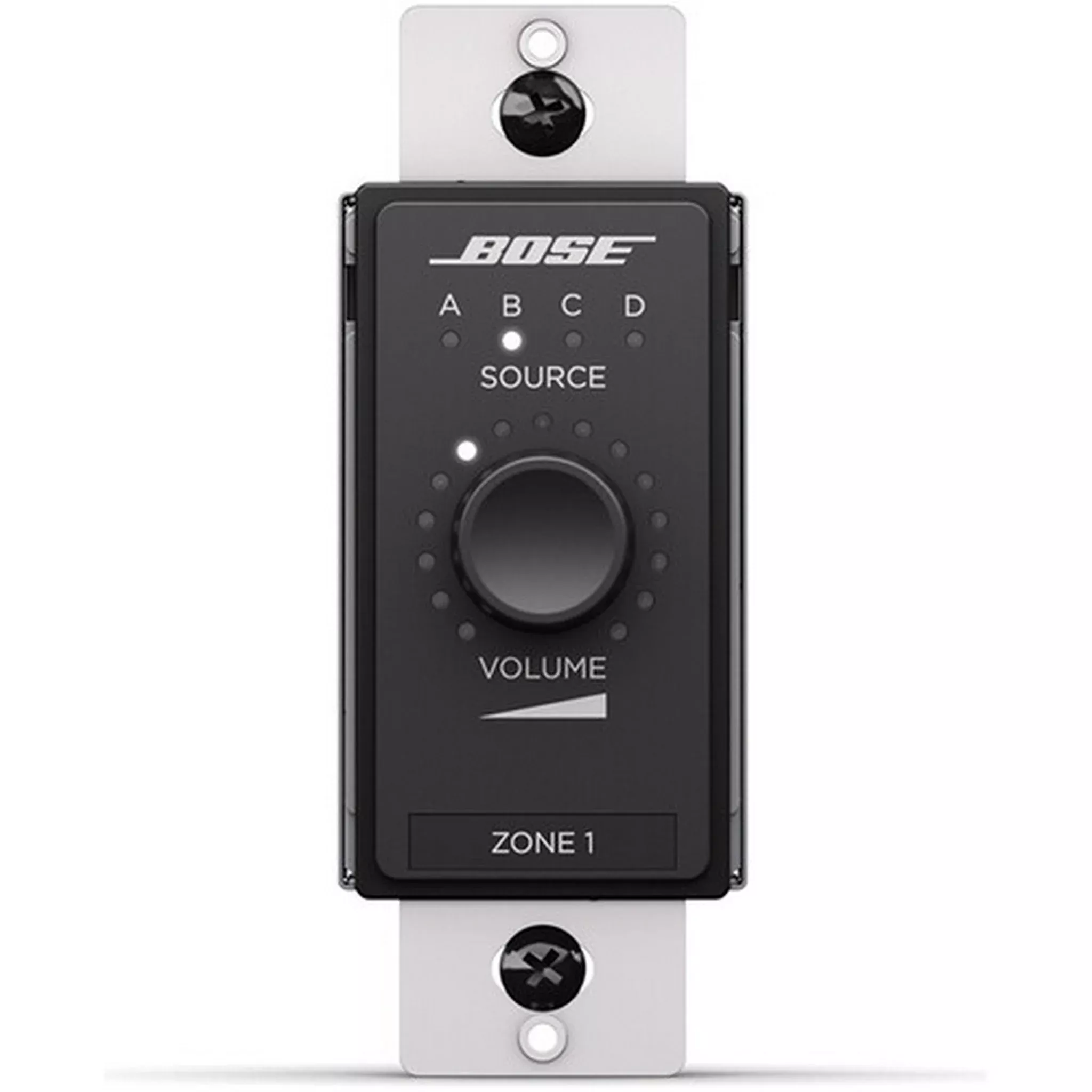

Bose Professional ControlCenter CC-3D Digital Zone Controller
Bose Professional ControlCenter CC-3D is a digital zone controller designed for use with Bose Professional sound processors in commercial audio systems. It enables local volume control and multi-source selection for installers and system operators managing distributed audio environments. This makes it ideal for applications where intuitive, wall-mounted control of multiple audio sources is required.
The controller operates over an Ethernet-based network and is powered using Power over Ethernet. It communicates with compatible Bose Professional processors and networked amplifiers to provide real-time zone control without external power supplies. Multiple controllers can be deployed simultaneously within a single system.
The CC-3D supports scalable commercial audio designs across retail, hospitality, and institutional spaces. Its form factor allows installation in standard single-gang electrical boxes. The controller is intended for fixed commercial installations requiring reliable, user-facing source and level control.
Key Features
- Digital Zone Control: Provides local volume control with A/B/C/D source selection
- PoE Powered: Powered via Power over Ethernet with no external power supply required
- Network-Based Operation: Operates over Ethernet for system-wide integration
- Scalable Deployment: Supports multiple controllers within a single audio system
- Standard Wall Mounting: Designed to fit standard single-gang electrical boxes
Technical Specifications
Product Type
Digital zone controller
Control Functions
Volume control
A/B/C/D source selection
Power Requirements
Power over Ethernet (PoE)
Network Connection
1 × Ethernet port (RJ-45)
System Compatibility
Bose Professional CSP processors
Bose Professional ControlSpace ESP processors
Bose Professional ControlSpace EX processors
Bose Professional PowerMatch networked amplifiers
Controller Capacity
Up to 16 units with Bose Professional CSP processors
Up to 32 units with ControlSpace ESP or EX processors
Mounting
Single-gang electrical box
Available Colors
Black
White
What’s in the Box
(1) ControlCenter CC-3D digital zone controller
