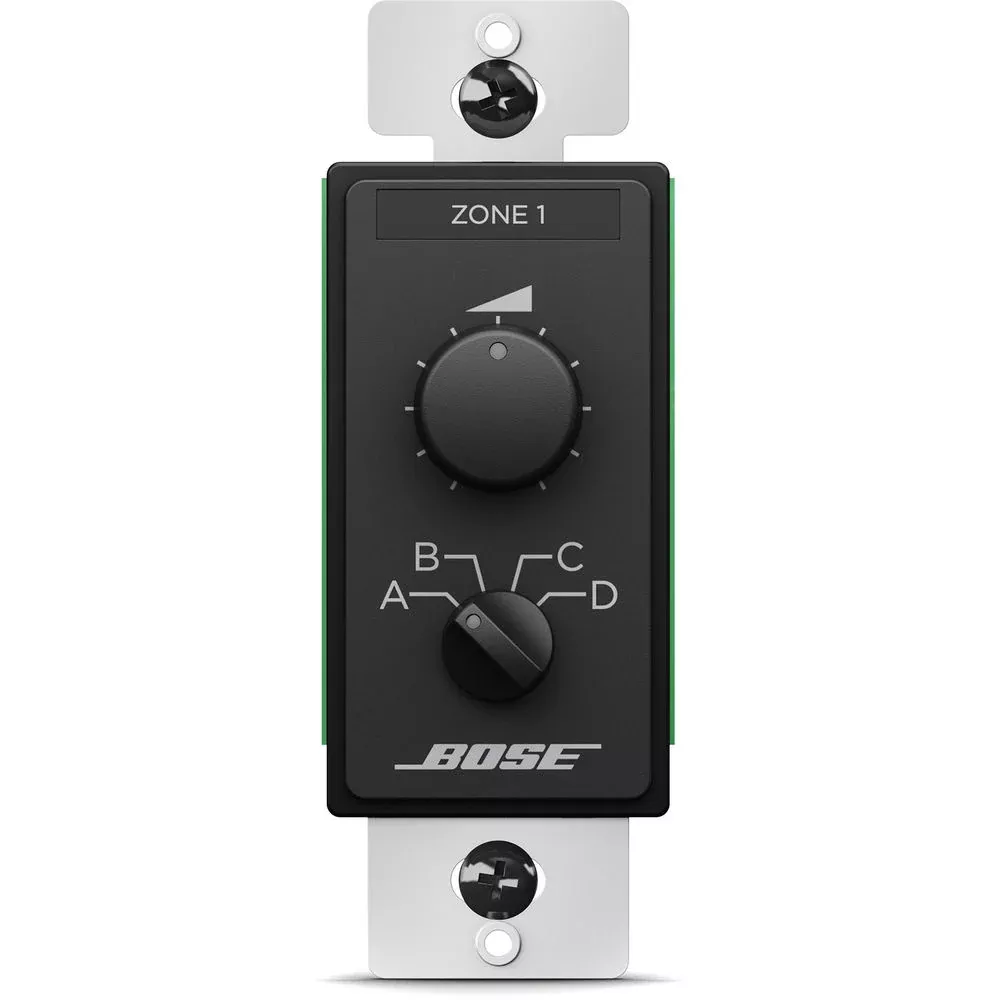

Bose Professional ControlCenter CC-3 Zone Controller
The Bose Professional ControlCenter CC-3 is a wall-mounted zone controller designed to provide local volume control with A/B/C/D source selection for compatible Bose Professional ControlSpace audio systems. It delivers a straightforward and reliable interface for managing audio zones in commercial environments.
The CC-3 features two rotary controls: one for adjusting zone volume and one for selecting between up to four audio sources. Custom labeling options allow clear identification of zones and sources, ensuring ease of use for non-technical end users.
Engineered for professional installations, the CC-3 fits into standard 1-gang electrical boxes and integrates seamlessly with Bose Professional processors and amplifiers. It is well suited for retail, hospitality, worship, and auxiliary zone applications.
Key Features
- Zone Volume Control: Dedicated rotary knob for precise audio level adjustment
- A/B/C/D Source Selection: Selector knob supports up to four input sources
- Simple User Interface: Intuitive controls for everyday operation
- Custom Labeling: Includes pre-printed and blank labels for flexible identification
- Flexible Installation: Fits standard 1-gang electrical boxes
Technical Specifications
Product Type
Zone controller with volume and A/B/C/D source selection
Compatible Systems
Bose Professional ControlSpace ESP-880A
Cable Requirements
Cat 5, shielded or unshielded
Maximum Cable Length
500 ft (152 m) shielded
100 ft (30 m) unshielded
Connectors
(1) RJ-45, TIA/EIA 568B wiring standard
Controls, Front Panel
(1) volume control knob
(1) source selection knob (A/B/C/D)
Mounting
1-gang electrical box (North America, Europe, Japan)
Available Colors
Black
White
Product Dimensions (H × W × D)
North America: 105 × 38 × 38 mm (4.1 × 1.5 × 1.5 in)
Europe: 86 × 86 × 38 mm (3.4 × 3.4 × 1.5 in)
Japan: 110 × 42 × 39 mm (4.3 × 1.7 × 1.5 in)
What’s in the Box
(1) ControlCenter CC-3 Zone Controller
(1) Installation Guide
