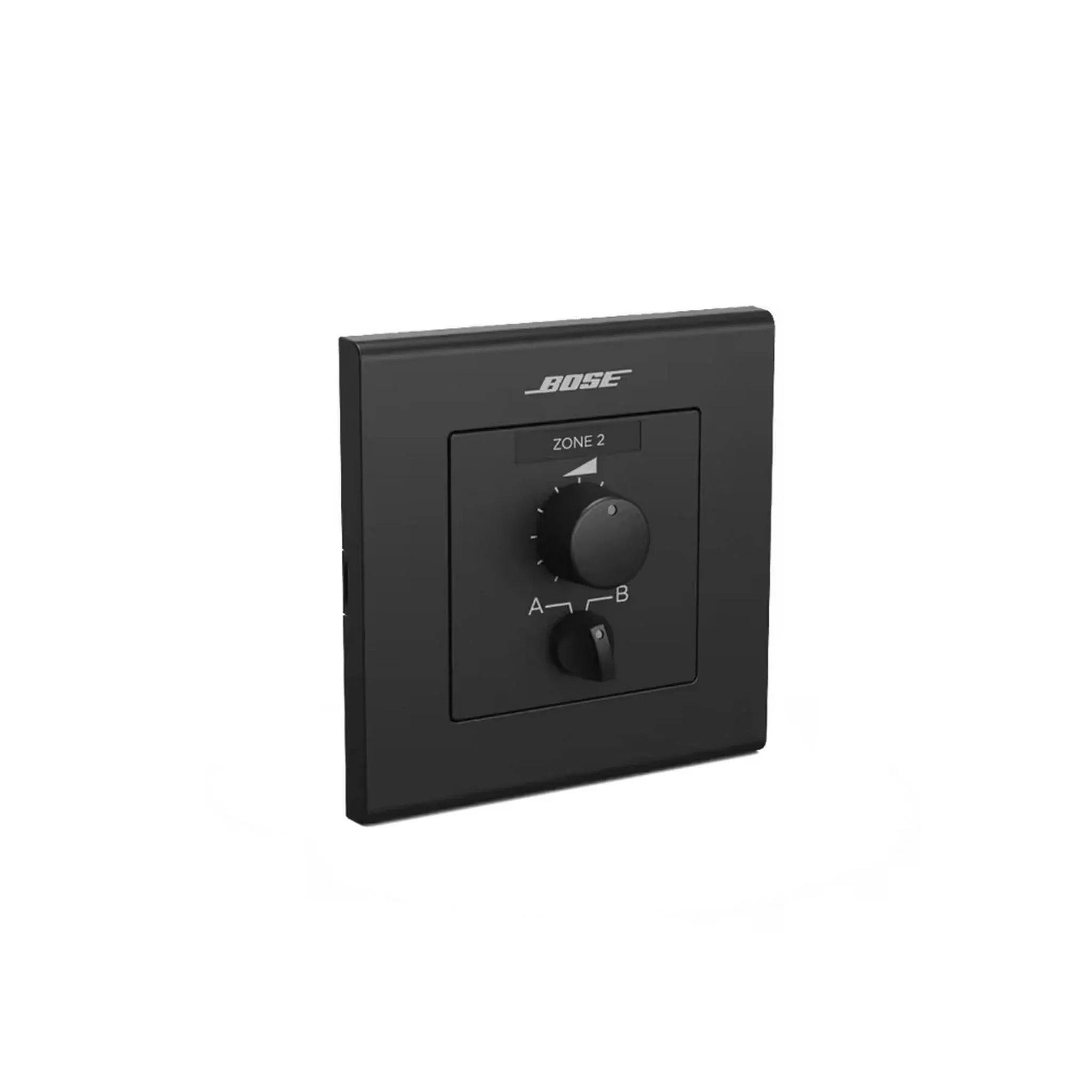

Bose Professional ControlCenter CC-2 Zone Controller
The Bose Professional ControlCenter CC-2 is a wall-mounted zone controller designed to provide local volume control and A/B source selection for compatible Bose Professional FreeSpace and ControlSpace audio systems. It offers a simple, intuitive interface for end users in distributed audio environments.
The CC-2 features two rotary controls: one for zone volume adjustment and one for selecting between two audio sources. Custom labeling options allow installers to clearly identify zones and sources, supporting easy operation in shared or public spaces.
Designed for commercial installations, the CC-2 fits into standard 1-gang electrical boxes and integrates seamlessly with Bose Professional amplification and processing products. It is well suited for retail, hospitality, worship, and auxiliary zone applications.
Key Features
- Zone Volume Control: Dedicated rotary knob for precise level adjustment
- A/B Source Selection: Separate selector knob for switching between two audio sources
- Simple User Interface: Intuitive controls for non-technical end users
- Custom Labeling: Includes pre-printed and blank labels for clear zone identification
- Flexible Installation: Fits standard 1-gang electrical boxes
Technical Specifications
Product Type
Zone controller with volume and A/B source selection
Compatible Systems
Bose Professional FreeSpace amplifiers
Bose Professional ControlSpace processors
Cable Requirements
Cat 5, shielded or unshielded
Maximum Cable Length
2000 ft (609 m) to FreeSpace amplifiers
500 ft (152 m) shielded or 100 ft (30 m) unshielded to ControlSpace processors
Connectors
(2) RJ-45, TIA/EIA 568B wiring standard
Controls, Front Panel
(1) volume control knob
(1) source selection knob (A/B)
Mounting
1-gang electrical box (North America, Europe, Japan)
Available Colors
Black
White
Product Dimensions (H × W × D)
North America: 105 × 38 × 38 mm (4.1 × 1.5 × 1.5 in)
Europe: 86 × 86 × 38 mm (3.4 × 3.4 × 1.5 in)
Japan: 110 × 42 × 39 mm (4.3 × 1.7 × 1.5 in)
What’s in the Box
(1) ControlCenter CC-2 Zone Controller
(1) Installation Guide
(1) Label Sheet
