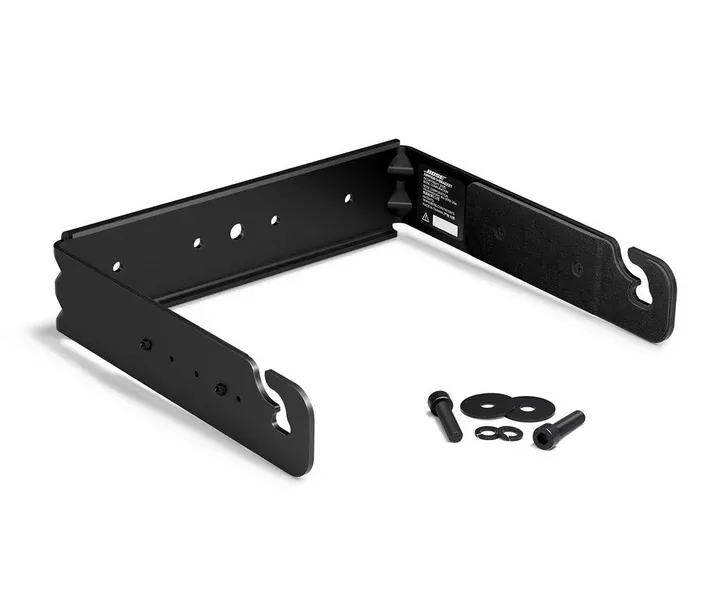

Bose Professional AMM108 U-Bracket Loudspeaker Mount
Bose Professional AMM108 U-Bracket is a mounting accessory designed for professional audio installation environments. It enables secure positioning and angle adjustment for a single AMM108 loudspeaker for system integrators, supporting wall, ceiling, or structural mounting workflows. This makes it ideal for installed sound applications where controlled orientation and mechanical stability are critical.
The bracket attaches directly to the loudspeaker using factory M10 threaded inserts on the enclosure sides. Its rigid construction supports either two-point attachment to flat surfaces or single-point attachment through the center mounting hole to secondary structures.
The design allows adjustable pitch angles while maintaining consistent loudspeaker alignment. It is intended for indoor use and is not designed for permanent outdoor installation.
Key Features
- Dedicated AMM108 compatibility: Designed specifically for mounting a single Bose Professional AMM108 loudspeaker
- Adjustable mounting angles: Provides ample rotation for accommodating various pitch requirements
- Dual attachment options: Supports two-point surface mounting or single-point center mounting
- M10 mounting interface: Fits M10 × 20 mm threaded inserts on the loudspeaker enclosure
- Included mounting hardware: Ships with required fasteners for bracket-to-loudspeaker attachment
Technical Specifications
Color
Black
Product Dimensions H×W×D
3.2″ × 13.1″ × 11.8″
81 mm × 332 mm × 300 mm
Net Weight
4.9 lbs (2.2 kg)
Mounting Interface
M10 × 20 mm threaded attachment points
Intended Use
Indoor installation only
What’s in the Box
(1) AMM108 U-Bracket
(2) M10 × 20 mm screws
(2) M10 flat washers
(2) M10 lock washers
(1) Installation guide
