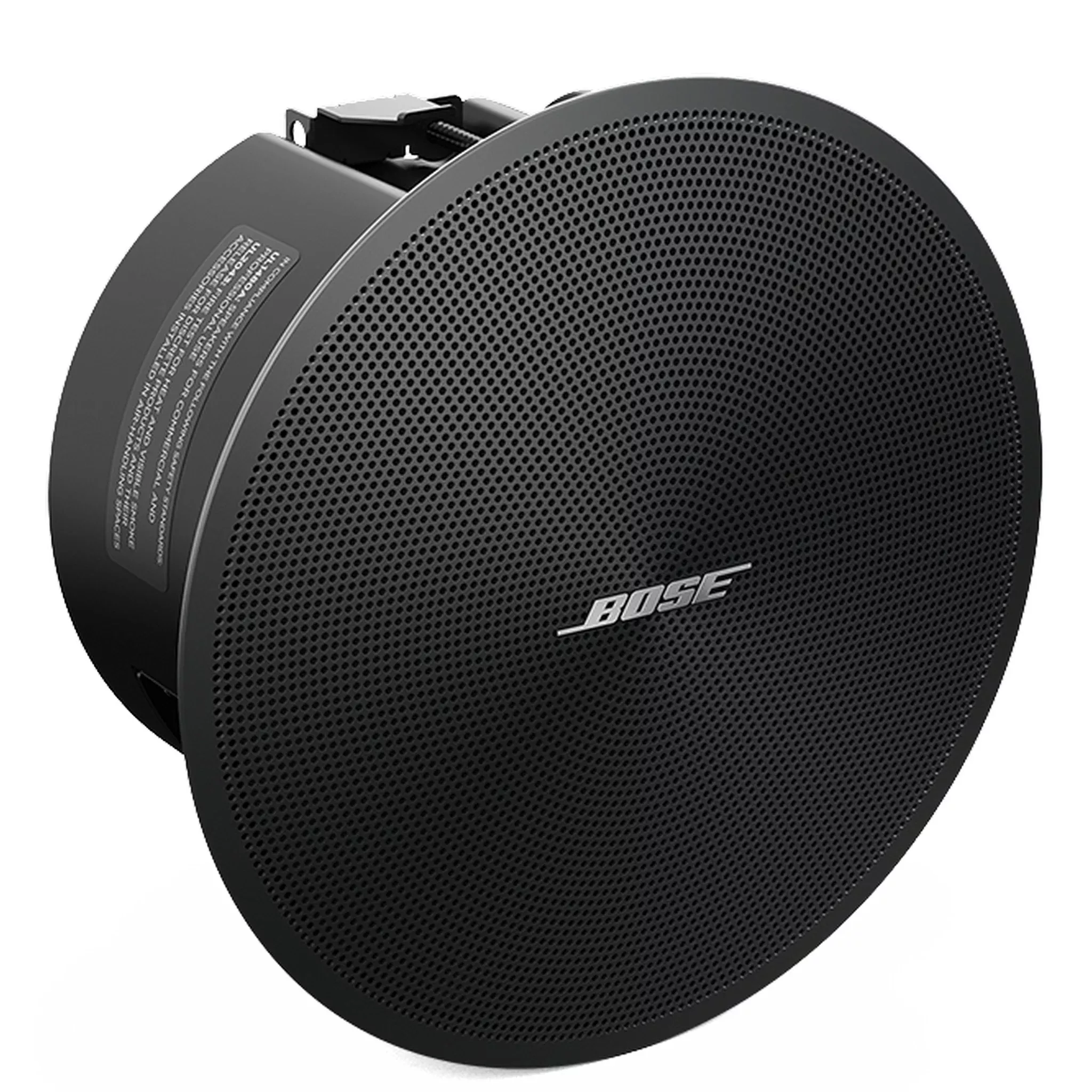

Bose DesignMax DM2C-LP Loudspeaker, Pair
A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs – along with premium aesthetics that complement any commercial sound installation. The 20-watt DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.
Key Features
- Designed for background music applications in commercial spaces
- 2.25-inch transducer for clear, intelligible sound
- Low-profile backcan for installation in confined ceiling spaces
- QuickHold mounting system helps reduce installation time
- In-ceiling design with front-access audio wiring
- Includes plenum-rated backcans and tile bridges
- Part of the Bose DesignMax loudspeaker series for mixed-system installations
Technical Specifications
- Product Type: In-ceiling loudspeaker (pair)
- Driver: 2.25-inch transducer
- Frequency Response (+/-3 dB): 95 – 18,000 Hz
- Frequency Range (-10 dB): 85 – 19,000 Hz
- Nominal Coverage (H x V): 150° conical
- Power Handling, Long-Term Continuous: 20 W
- Power Handling, Peak: 80 W
- Maximum SPL @ 1 m: 97 dB
- Sensitivity (SPL/1W @ 1 m): 84 dB
- Nominal Impedance: 16 Ohm (transformer bypass)
Installation & Use Case
The DesignMax DM2C-LP is intended for installed commercial audio systems where ceiling depth is limited and consistent background sound coverage is required.
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Package Contents
- Bose DesignMax DM2C-LP loudspeakers (pair)
- Plenum-rated backcans
- Tile bridges
