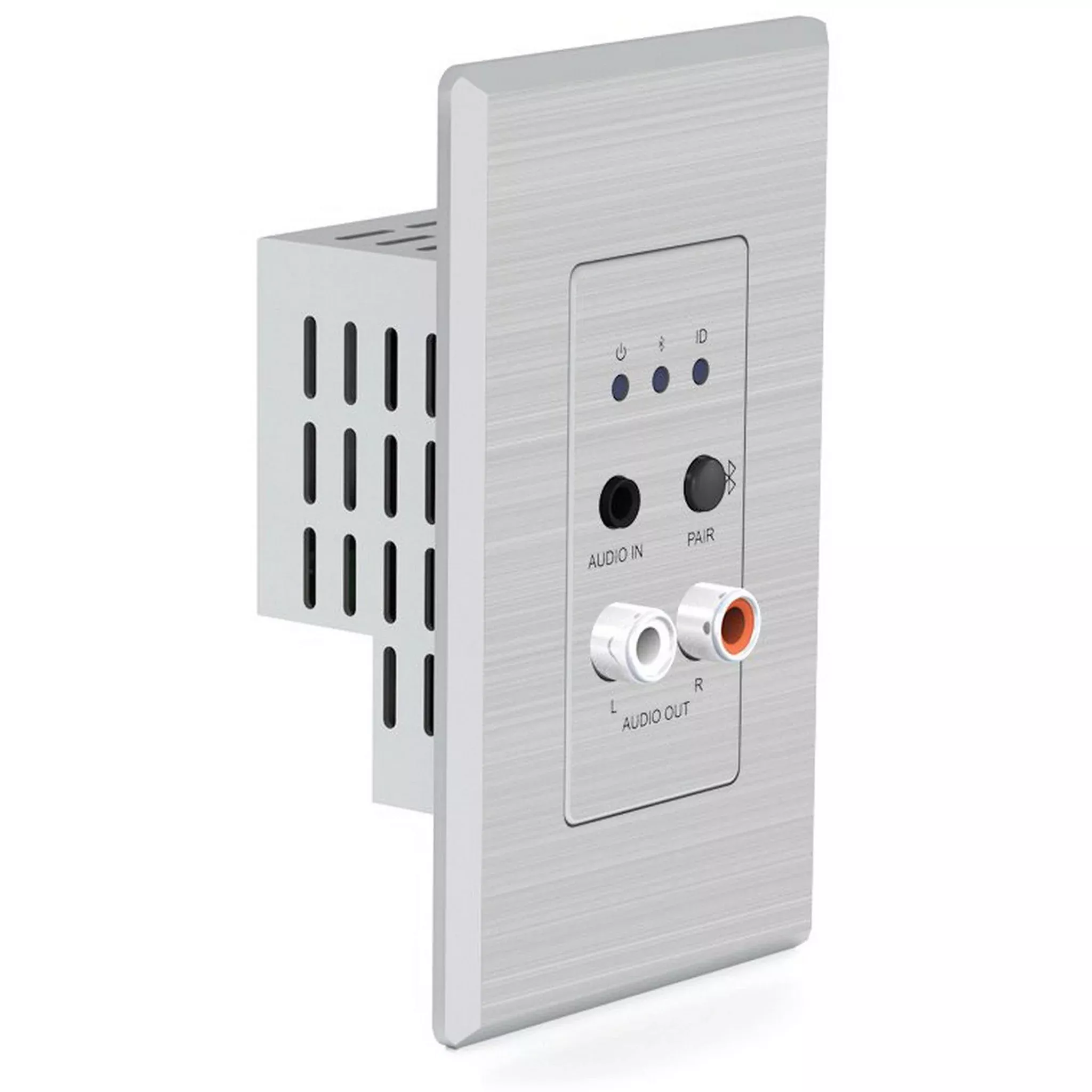

Blustream DA11ABL-WP Dante 2+2 Bluetooth Wall Plate, Single Gang
The Blustream DA11ABL-WP-US is a multi-input / output wallplate to convert Bluetooth and analog audio within a digital Dante networkedaudio system. The DA11ABL-WP converts 2 x input channels of Bluetooth, orunbalanced audio to Dante digital audio, and 2 x channels of Dante audio to 2 xoutput channels of unbalanced audio. Software configuration for the DA11ABL-WPallows for the Bluetooth name to be amended as required where being deployed inmulti-user spaces.
The DA11ABL-WP is a plug & play device that is poweredusing PoE (Power over Ethernet), or via 12V power supply, offers support forAES67 RTP audio transport, and magnetic faceplate design allows for both UK& EU backbox compatibility. The DA11ABL-WP is the ideal BYOD interface toallow any Bluetooth device to stream audio wirelessly to a Dante audio system.
Key Features
- Dante network wall plate interface for Bluetooth and analogL/R audio inputs, and L/R audio outputs
- Converts 2ch Bluetooth, or un-balanced audio sources toDante audio
- Converts 2x Dante audio channels to un-balanced audiooutputs
- Configurable Bluetooth naming allows for simple discovery ofthe unit
- Adjustable input sensitivity from +24dBu to -28dBV viacontrol software
- Adjustable output gain from +20dBu to -28 dBV via controlsoftware
- Supports: 44.1, 48 & 96kHz sample rates @ 16, 24 or 32Bit
- Configurable Dante device latency (supports 1, 2 or 5ms configurableusing Dante Controller)
- Supports AES67 RTP audio transport
- Features Class 0 IEEE 802.3af PoE for powering of productfrom any PoE switch
- Supports power via 12V DC adapter (not included) for whennetwork switch does not support PoE
- Magnetic faceplate surround and US Decora style backboxcompatibility
Technical Specifications
Audio Input Connections
1 x Analog Left / Right audio (3.5mm stereo jack)
Audio Output Connections
2x Analog RCA (Left / Right)
Network Connection
1 x PoE Dante Ethernet Connection (RJ45)
Bluetooth Connection
Bluetooth V5.0 – SBC / MP3 / AAC / APT-X / APTX-LL /APTX-HD, 44.1K-48KHz 16 / 24Bit
Module Dimensions (W x H x D)
50mm x 104mm x 48mm (without faceplate)
Faceplate Dimensions (W x H x D)
70mm x 155mm x 5mm
Cut Out Dimensions (W x H x D)
46mm x 56mm x 39mm
Mounting Hole Spacing
US 83mm CTC
Backbox Requirements
US single gang junction box
Shipping Weight
0.5 Kg
Operating Temperature
32 Degrees F to 104 Degrees F
Storage Temperature
– 4 Degrees F to 140 Degrees F
Power Supply
Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenixconnector
Item Includes
1 x DA11ABL-WP
1 x Magnetic Faceplate
1 x Quick Reference Guide
