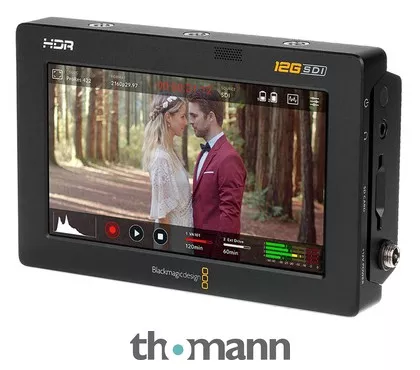

Video monitor with SD card recorder
- Enables professional monitoring and recording with any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats
- Recording also in Blackmagic RAW with compatible cameras
- 5″ 2500 nit HDR touchscreen supports 3D LUTs and features professional scopes and powerful focus and exposure aids for precise focusing, exposing and framing
- SD card recorder stores files from any camera in 10-bit 4:2:2 ProRes and DNx formats
- SDI video input and output via MicroBNC (SDI rates 270 Mbit / 1.5 G / 3 G / 6 G / 12 G)
- HDMI 2.0a video input and output
- 3.5 mm Jeadphone jack
- Built-in mono loudspeaker
- Screen dimensions: 5″ with 1920 x 1080 pixels
- Screen colour: P3 colour space
- SD interface: SD slot for UHS-II cards
- Computer interface: 1 USB Type C 3.1 Generation 1 for recording to external hard drives, initial setup, software updates and software control via Video Assist Utility
- Battery operation possible via 2x NP-F570 batteries (not included)
- Dimensions: 148 x 90 x 36.5 mm
- Weight: 410 g
- Includes 12 V power supply unit
- Suitable adapter cable MicroBNC / BNC male: Art.506690 (not included in delivery)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2020
- Item number489162
- Sales Unit1 piece(s)
- Type Monitor
- DesignField Recorder
- RecorderYes
- Screen size [Inches]5″
- Screen resolution1920 x 1080
- Recording resolution4k
- Record tracks1
- HDMI inputYes
- SDI inputYes
- HDMI OutputYes
- SDI OutputYes
- Streaming FunctionYes
- BatteryOptional
- Storage typeSD Card
- Audio INYes
- Audio MonitorYes
- LoudspeakerYes
- ScopesYes
- TallyYes
- Recording mount1/4 “internal thread
