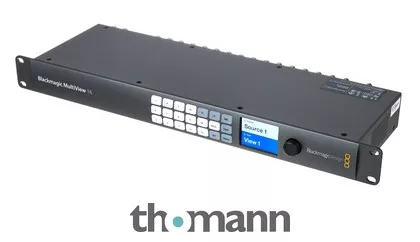

Video Source Monitoring
- Allows monitoring of up to 16 SDI video sources with one Ultra HD monitor or TV (monitor / TV not included)
- This results in twice the resolution per viewing window
- Monitoring of SD, HD or Ultra HD SDI sources, in any combination and in any order
- Full frame resynchronisation at each input
- SDI neutrality: all SDI outputs automatically switch between standard definition, high definition or 6G SDI video
- Reference input: Black Burst and Tri Sync for SD, HD and 4K
- Multirate support: automatic detection of SD, HD or 6G-SDI
- Simultaneous viewing of 4K, HD and SD video.
- Updates: USB 2.0 high-speed interface (480 Mbps) or via Ethernet
- Configuration: Via front panel LCD or via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
- Control: 16 keys for local control of the MultiView 16, five keys and scroll wheel for control of the LCD or RJ45 Ethernet
- Compatible with operating systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or higher, Windows 8.1 and 10
- Input voltage: 90 -240 V AC (IEC power cable not included)
- Power consumption: 45 W
- Dimensions (W x H x D): 482 x 44 (1U) x 153 mm
- Weight: 2.3 kg
Connections:
- SDI video inputs: 16x 10-bit SD-SDI, HD-SDI and 6G-SDI
- SDI video outputs: 16x 10 bit SD-SDI, HD-SDI and 6G-SDI
- SDI rates: 270 MBit /1.5 G /3 G / 6 G
- SDI video outputs for multiple display: 2x 10-bit HD-SDI, 2x 10-bit 6G-SDI
- HDMI video outputs for multiple display: 1 HDMI type A socket (output supports EDID data of the monitor)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2020
- Item number501007
- Sales Unit1 piece(s)
- Design Rack Monitor
- Recorder No
- Screen size [Inches] 2,2″
- Record tracks 0
- HDMI input No
- SDI input Yes
- HDMI Output Yes
- SDI Output Yes
- Streaming Function No
- Battery Not possible
- Storage type Not possible
- Audio IN No
- Audio Monitor No
- Loudspeaker No
- Scopes No
- Tally No
- Recording mount Rack Mount
