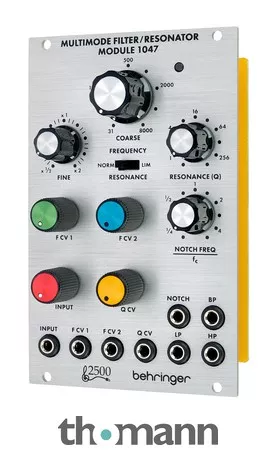

Eurorack Module
- Analogue multimode filter (-12dB / Oct.)
- Controls for input level, filter frequency (coarse and fine tuning), resonance and notch frequency
- Two CV inputs with attenuators for filter frequency
- CV input with attenuator for resonance
- Switchable limiter mode for high resonance settings
- Signal outputs for low pass, band pass, high pass and notch
- Power requirements: 55mA (+ 12V) / 45mA (-12V)
- Width: 16 HP
- Depth: 43 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2021
- Item number508282
- Sales Unit1 piece(s)
- Width 16 TE / HP
