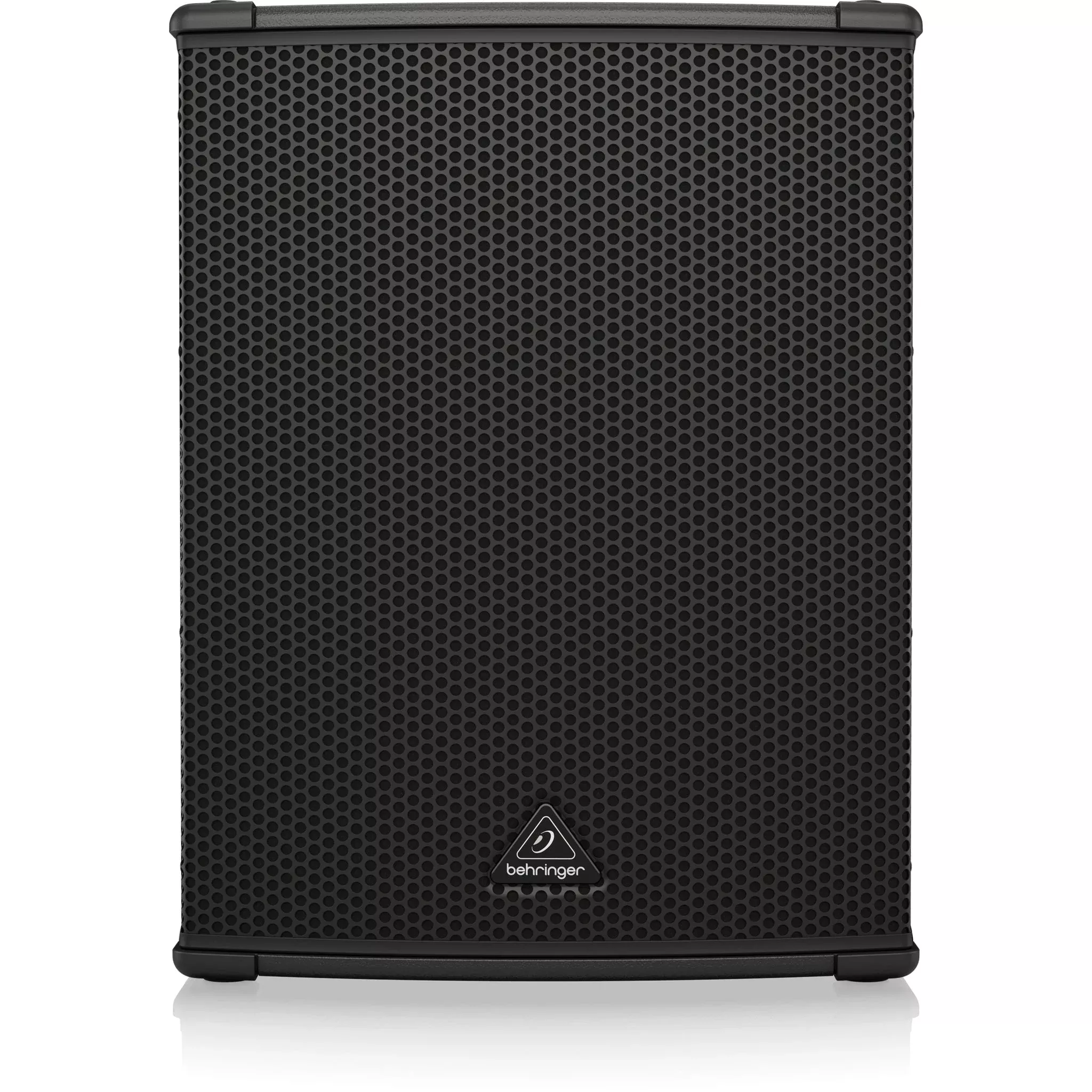

Behringer B1500XP 15″ Active PA Subwoofer with Stereo Crossover
Behringer B1500XP is an active PA subwoofer designed for low-frequency reinforcement in live sound and playback systems. It enables extended bass reproduction for performers, DJs, and audio operators, supporting full-range PA workflows. This makes it ideal for live events, mobile DJ systems, and installed sound setups where controlled sub-bass output is required.
The system uses a Class-D amplifier paired with a 15″ Turbosound low-frequency driver to reproduce sub-bass frequencies. A built-in stereo crossover routes high-pass filtered signals to connected full-range loudspeakers.
Integrated controls allow adjustment of bass boost, crossover alignment, and phase settings for system tuning. The enclosure includes transport handles and a pole mount socket to support portable PA deployments.
Key Features
- High Power Amplification: 3000-watt powered PA subwoofer designed for professional sound reinforcement systems
- Turbosound Driver: British engineered 15″ Turbosound low-frequency speaker
- Class-D Amplifier: High-efficiency amplifier with over-excursion, thermal, RMS, and clip protection
- Active Stereo Crossover: Built-in crossover provides high-pass outputs for full-range loudspeakers
- Bass System Control: Tunable bass boost and phase switch for system alignment
- Variable High Cut: Adjustable high-cut filter allows integration with full-range speakers
- Subwoofer Level Control: Dedicated level control balances the subwoofer with main speakers
- Status Indicators: Power, signal, and clip LEDs provide system monitoring
- Transport and Mounting: Pole socket and ergonomic handles support portable PA systems
- Protective Construction: Rugged steel grill protects the speaker during transport and use
Technical Specifications
Amplifier
Maximum output power: 3000 W
Type: Class-D
Audio Inputs
Input A B: XLR servo-balanced
Sensitivity: +4 dBu to 0 dB center position for full rated power
Max input: +22 dBu balanced, less than 1 percent THD+N
Input impedance: 12 kΩ unbalanced, 24 kΩ balanced
Audio Outputs
Thru A B: XLR servo-balanced
Output A B: XLR servo-balanced
High-pass filter: 100 Hz Butterworth, 18 dB slope
Controls
Level: minus infinity to plus 6 dB
Boost: Switchable
Highcut: 70 to 150 Hz Butterworth, 24 dB slope
Phase: 0 degree or 180 degree phase reverse switch
System Data
Frequency range: 32 Hz to 200 Hz -10 dB
Frequency response: 45 Hz to 150 Hz plus or minus 3 dB
Signal to noise ratio: greater than 100 dB A-weighted
Sound pressure level: max 128 dB at 1 m
Woofer: 15″
Limiter: Optical
Indicators
Signal LED: Green
Limit LED: Red
Power LED: Amber
Circuit Protection
Amplifier protection: Full short circuit, thermal protection
Load protection: Turn on off muting
Power Supply Voltage Fuses
USA Canada Japan: 100 to 120 V AC, 50 / 60 Hz (T 15 A H 250 V)
UK Australia Europe Korea China: 220 to 240 V AC, 50 / 60 Hz (T 10 A H 250 V)
Power consumption at 1/8 rated power: 180 W
Mains connection: Standard IEC receptacle
Weight
75.68 lbs
Height
23.94″
Width
18.39″
Length
20.94″
