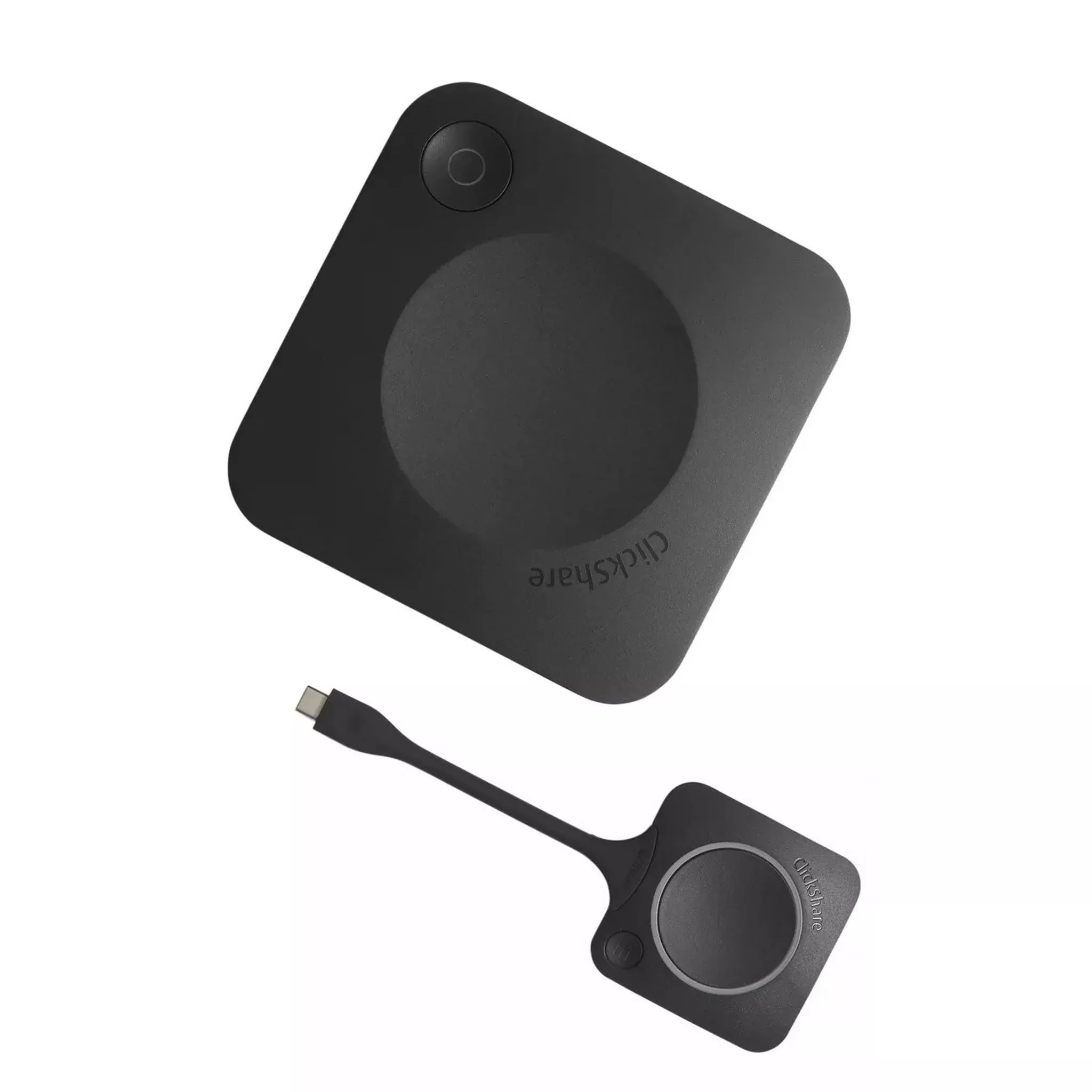

Experience the convenience of interactive wirelesspresentations in any meeting space with the Barco ClickShare C‑10Gen 2 Wireless Conferencing System with 1 Button. Sharing content has neverbeen easier – simply click the ClickShare Button (compatible with Windows orMac) or use the ClickShare App on your laptop, mobile, or tablet. Withinseconds, you can start presenting without the hassle of cables, software downloads,or the need for training.
Key Features
- ClickShare C-10 enables interactive wireless presentationsin any meeting space.
- Sharing content is made easy with a single click using theClickShare Button or App.
- Presentations can be started within seconds, without theneed for cables, software, or training.
- Interactive features such as touchback, annotation, andblackboarding are available.
- Collaboration is enhanced with the ability to display 2sources on the screen simultaneously.
- The ClickShare Button is an iconic tool that can be used byboth employees and guests.
- The system ensures 100% security with encryption and cloudmanagement.
- No additional software downloads are required for theClickShare App.
- The ClickShare C-10 is compatible with Windows, Mac,laptops, mobile devices, and tablets.
- The wireless presentation system offers a seamless anduser-friendly experience.
Technical Specifications
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App) *
iOS 12 and higher (ClickShare App) *
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort1.2 (only Gen2)
Audio output
HDMI
USB
1 X USB-A, 1 X USB-C
ClickShare Buttons
1 or 2
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast*
Maximum number of simultaneous connections (with Buttonsand/or App)
32
Noise Level
Max. 25dBA @ 0-30 Degrees C
Max. 30dBA @ 30-40 Degrees C
Authentication protocol
WPA2-PSK in standalone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button innetwork integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Adjustable with signal strength modulation; max. 30m (100ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZand 5 GHz
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select numberof countries)
Connections
1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) – only Gen2: 1xUSB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0 Degrees C to +40 Degrees C (+32 Degrees F to+104 Degrees F)
Max: 35 Degrees C (95 Degrees F) at 3000m
Storage: -20 Degrees C to +60 Degrees C (-4 Degrees F to+140 Degrees F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
Yes
Room Dock (peripheral support)
No
Local view
Yes
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage upon registering viaSmartCare
*
* depends on configuration, available in future firmwareupdates
