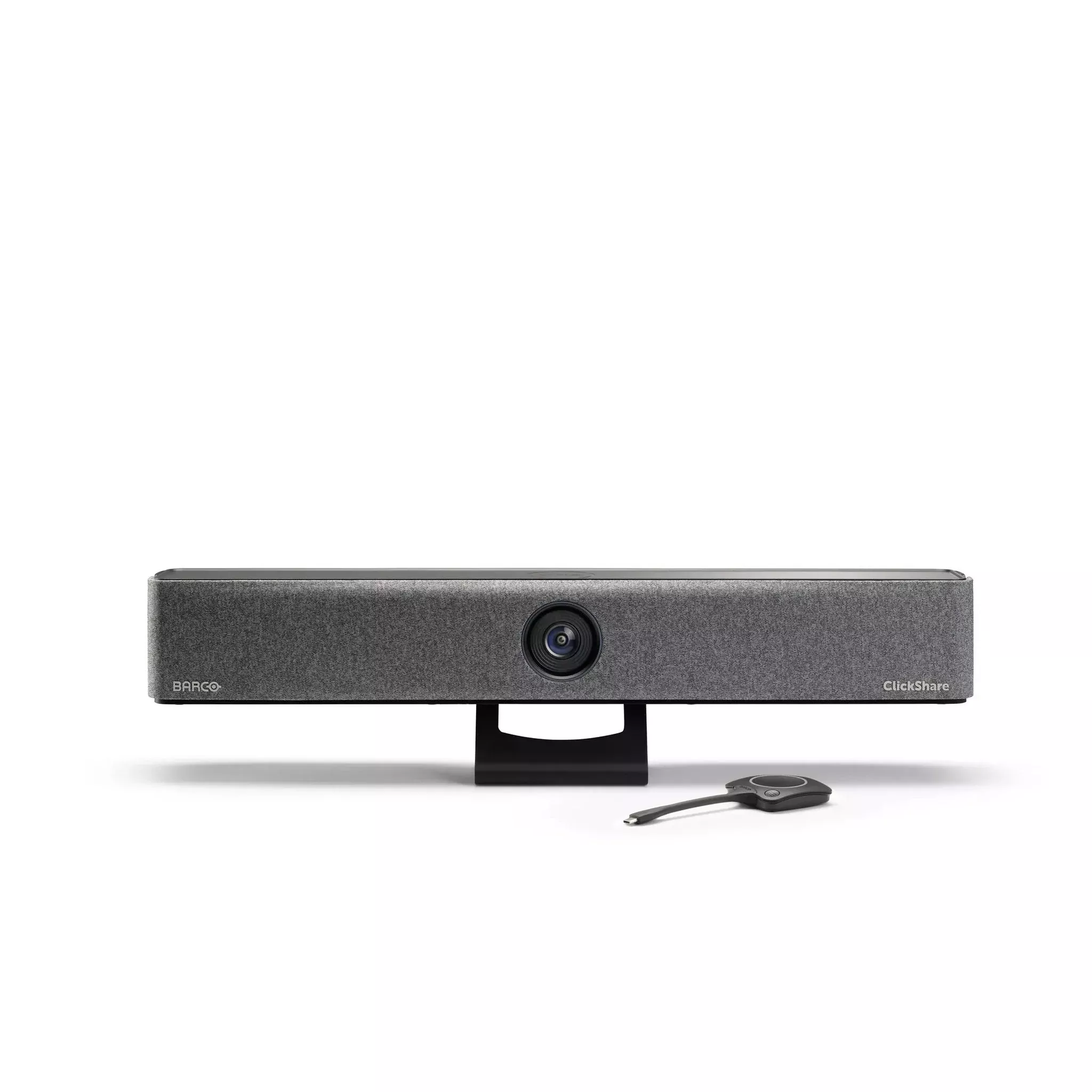

The ClickShare Bar CoreWireless Video Conferencing Bar is an eco-friendly video conferencingsolution designed for small to medium-sized meeting rooms. It provides aseamless wireless conferencing experience with any videoconferencing platform,ensuring that all participants can engage effortlessly. With its carbon-neutraldesign, this video bar not only enhances communication but also reduces theenvironmental impact of meetings.
One of the key features of theClickShare Bar Core is its high-quality AV capabilities, which guaranteecrystal-clear views and audio during meetings. The stereo speakers, acousticecho cancellation, and background noise cancellation ensure that all participantsfeel heard and seen, regardless of their location. This technology creates anatural and immersive communication experience, enhancing collaboration amongteam members.
Moreover, the ClickShare Bar Coreoffers a comprehensive view of the meeting room and participants with its 4Kcamera. The camera features a 120° field of view, group framing, andcomposition views, providing an extensive and sharp visual representation ofthe meeting space. This ensures that all participants are visible on-screen,promoting engagement and active participation during conferences. Withsimplified installation and reduced Total Cost of Ownership, the ClickShare BarCore is a valuable addition to any modern meeting room.
Key Features
- Exceptional stereo audio qualitywith crystal-clear sound
- Cutting-edge 4K camera powered byadvanced AI technology
- Easy and straightforwardinstallation process
- A wise investment with reducedinterventions, less downtime, and a platform that is future-proof
- Environmentally friendly productthat is carbon-neutral
Technical Specifications
Operating System
Windows 10 and higher macOS 11(Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher(ClickShare App)
System Requirements
For a smooth experience withMicrosoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS:Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i54-core processor / 8GB RAM / OS:Windows 11 latest build or Mac OS latest build
Video Outputs
4K UHD (3840*2160) @ 30Hz. HDMI1.4b or USB-C DP ALT mode (DisplayPort 1.2)
Video Inputs
–
Camera
4K camera, 3x zoom/ePTZ, 120˚FOV
Camera AI
Group framing and composition modewith up to 4 people
Audio Output
2x 10W full duplex and stereospeakers, 8 Ohms impedance (available mid 2024)
Audio Pickup
6 beamforming MEMS microphoneswith echo and background noise cancellation. Pickup range up to 15 feet / 4.5meters
ClickShare Buttons
1
ClickShare App
Desktop & Mobile
Native Protocols
Airplay, Google Cast, Miracast(available mid 2024)
Noise Level
Fanless
Authentication Protocol
WPA2-PSK in stand-alone modeWPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless Transmission Protocol
IEEE 802.11 a/g/n/ac and IEEE802.15.1
Reach
Max. 30m (100 ft) betweenClickShare Button and ClickShare Bar
Frequency Band
2.4 GHZ and 5 GHz (DFS channelssupported in select number of countries in network integration mode)
Connections
1x USB-C 3.1 (DP) to screen, 1xUSB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
Temperature Range
Operating: 0°C to +40°C (+32°F to+104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relativehumidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-Theft System
Kensington lock (back and bottom)
Certifications
FCC/CE
Touch Screen Support & INTERACTIVITY
No
Wireless Conferencing
via App or Button
Local View
Yes
Network Connection
LAN & WiFi
Management and Reporting
Yes
Warranty
1 year standard. 5 years coverageupon registering via SmartCare
Dimensions (HxWxD)
98 mm x 640 mm x 101 mm
Power Consumption
Operational: 5-20W, 65W Max
Power Supply
Standard 110/220 V AC plug orUSB-C (back)
Weight
2500 gr
