Enhanced Learning Experience

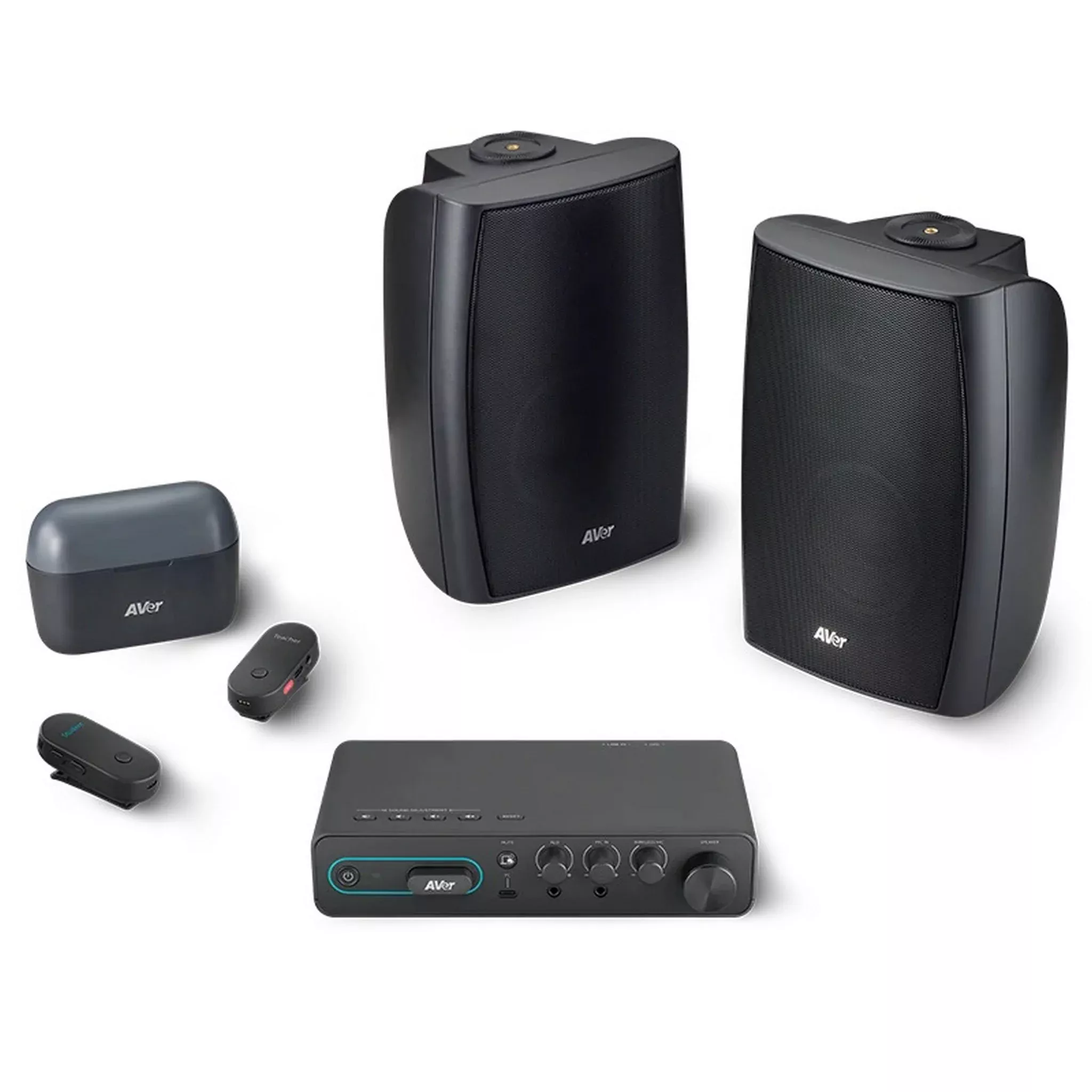

Introducing the AVer AmpliWaveSAA5 Wireless Instructional Audio System, a revolutionary wirelessclassroom audio amplification system that is revolutionizing student listeningand learning! This system includes a plug-and-play receiver, wall-mountspeakers, and wireless microphones, enabling teachers to effectively manage theirclassrooms through amplified sound.
AmpliWave allows teachers toamplify their voice across a classroom area of up to 1500 sq ft, ensuring thatstudents can hear instructions clearly from any seating position. It alsofeatures anti-howling technology to eliminate disruptive audio interference. Byintegrating AmpliWave into your classroom, you can enhance academic performancethrough amplified audio!
Key Features
- Sound Amplification Coverage of Upto 1500 sq ft: Reach every student with crystal clear sound projection,enhancing lesson engagement and inclusivity.
- Plug & Play Convenience:Simply plug and pair to start using AmpliWave instantly, saving time and efforton complex setup procedures.
- Anti-Howling Technology: Enjoyuninterrupted sound quality without feedback or distortion, providing aseamless learning experience.
- Effortless Hybrid Learning:Seamlessly combine classroom and remote audio to facilitate hybrid learning,improving the educational process.
- Seamless Audio Mixing: AmpliWaveallows teachers to blend microphone audio with other sources like backgroundmusic, creating an immersive learning environment.
- Long Talk Time with Fast Charging:The wireless microphones offer 8 to 10 hours of talk time, ensuringuninterrupted usage throughout the day. Fast charging capabilities provide a10% charge in just 10 minutes with the included charger.
Technical Specifications
Streaming Audio Box
Power Requirement
19V
Power Consumption
65W max.
Audio Output Power
30W RMS (15W per channel)
Power Indicator
1
Wireless Mic ConnectionIndicator
1
PC mute (PC Speaker) Indicator
1
Sound Adjustment
System mute / volume down / volumeup / input lock
RESET
Yes
Wake-On-LAN
Yes, <1.5W (connected to power)
PC
USB 3.0 Type-C device mode
ALD (Assistive ListeningDevice)
Yes
Mic In
3.5 mm Mono
UAC
USB 2.0 Type-A host mode
Line In
3.5 mm Stereo
Page Mute
Yes, 10-100 V
Line Out
3.5 mm Stereo
Speaker Out
Speaker push-in terminal connectorblock
Ethernet
Yes
Kensington Lock
Yes
Mic Receiver Dongle Slot
Connect supplied dongle
Software
AVer Device Management: SupportWindows® 7 or later
Web UI
HTML
Net Dimension
8.27” x 4.33” x 1.91” (210mm x48.5mm x 110mm) (W*D*H), excluding rubber
Net Weight
1.17lbs + 0.11/-0.11lbs (0.53kg +0.05/-0.05kg)
Gross Weight (with Package)
4.63 lbs (2.1kg)
Package Contents
Streaming audio box, poweradapter, power cable, 3.5 Stereo to 3.5 Stereo cable (10M), USB 3.0 Type-C toType-A cable (1.83M), Mic Receiver Dongle, QR code card
Pendant Microphones (TeacherMicrophone / Student Microphone)
Pendant Microphones (TeacherMicrophone / Student Microphone)
Power Requirement
5V
Connection Status
1
Battery Status
1
Microphone Wearing Type
Pendant with clip and lanyard
Transmission Type
2.4G wireless technology
Transmitting Frequency
2.4~2.483 GHz
Frequency Response
50 Hz – 20 kHz
Microphone Capsule
Omni-directional
Talk Time
8-10 hours (fully charged)
Battery Type
Li-ion, 3.7V rechargeable
Operating Range (Line of Sight)
20m (65 ft.)
Volume Control
Volume up / volume down
Safety Alert (Emergency Purpose,Teacher Mic)
Yes
Fast-charge Capable
Up to 10% charge in around 10minutes with supplied charger
Mic In
3.5 m Mono
USB Type-C
USB 2.0 Type-C
Net Dimension
1.3” x 0.8” x 2.89” (33 mm x 20.2mm x 73.3 mm) (W*D*H), excluding clip
Net Weight
1.83 lbs (0.83kg)
Gross Weight (with Package)
4.63 lbs (2.1kg)
Package Contents
Pendant microphones (teachermicrophone / student microphone) , lanyard (x2), Power adapter, USB Type-C toType-A cable (1.5M), Microphone receiver (dongle)
Speakers
Power Output
30W RMS (15W per channel)
Total Harmonic Distortion (THD)
<1% (1 KHz)
Frequency Response
88Hz -25kHz ± 3dB
Sensitivity / SPL
88 dB 1 Watt (1M1W)
Impedance
6 Ohms nominal
Mounting
Wall mount
Net Dimension
6.69” x 9.84” x 5.91”(170 mm x 250mm x 150 mm) (W*D*H)
Net Weight
6.75 lbs (3.06 kg)
Gross Weight (with Package)
13.23 lbs (6kg)
Package Contents
Speaker (x2), wall mount bracket(x2), bracket knob (x4), speaker cable (20M), drill template (x2), QR code card
Operating Range
Max 60ft /1500 sq ft
Microphone Charging Case(Optional)
Input/Charging Voltage
5V
Charging Time
<3 hours
USB Type-C
USB 2.0 Type-C
Kensington Lock
Yes
Net Dimension
4.81” x 3.49” x 2.02”(122.3 mm x88.7 mm x 51.3 mm) (W*D*H)
Net Weight
0.25 lbs (0.115kg)
Gross Weight (with Package)
0.71 lbs (0.323kg)
Package Contents
Microphone charging case, USBType-C to Type-A cable (3M)
Operating Conditions
Temperature: 0°C to +35°CHumidity: 10% to 90%
Storage Conditions
Temperature: -30°C to +60°CHumidity: 10% to 90%
Warranty
5 years
AVer Streaming Audio Box, PendantMicrophones, Microphone receiver (dongle), Speakers, Microphone Charging Case
1 year
Accessories: cables (power cable,speaker cable, USB cable etc.), adapters, lanyards, wall mount brackets,bracket knobs and rechargeable battery
