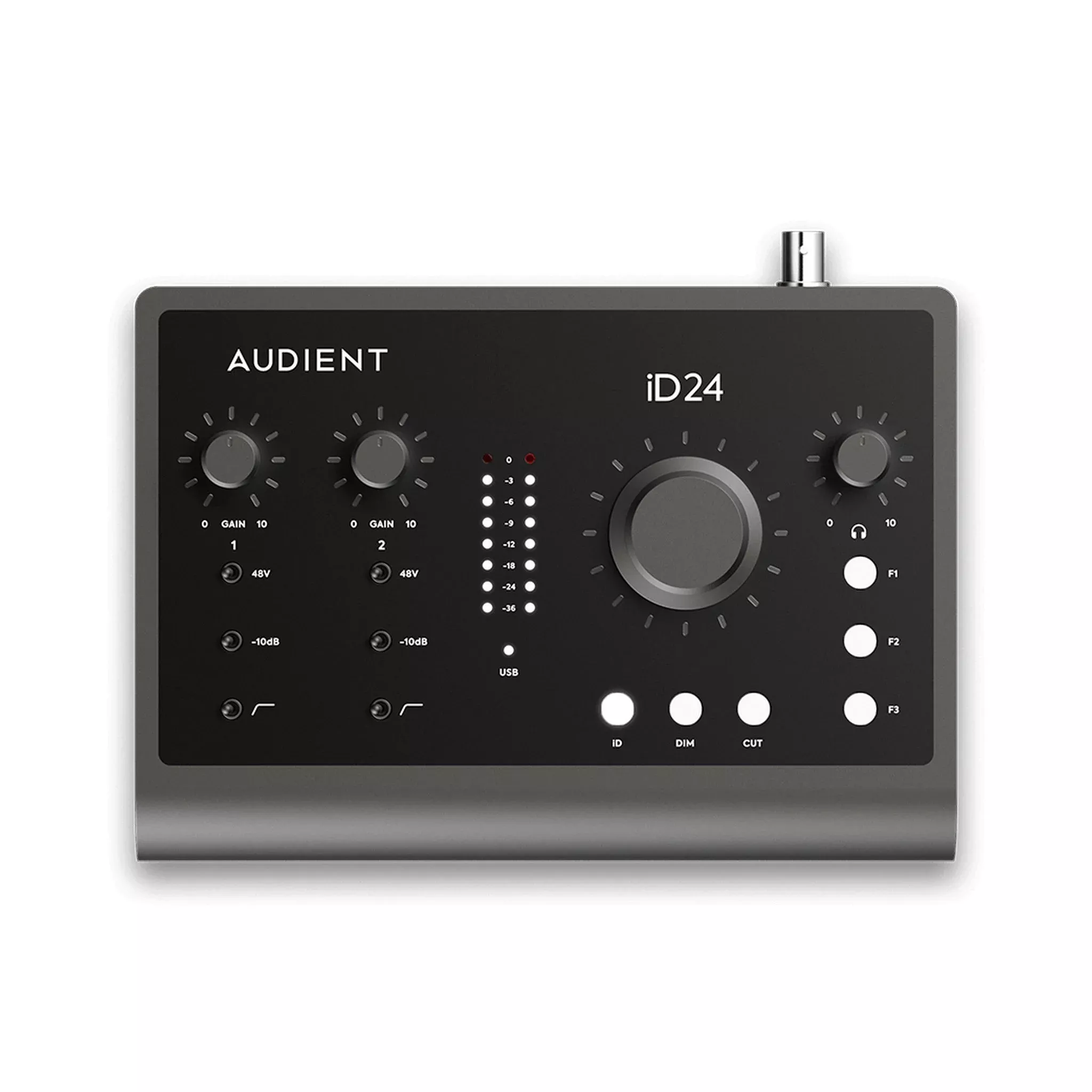

Audient iD24 10-In/14-Out Audio Interface
Your recordings, made better.
Introducing iD24, the audio interface made for producers andengineers. Featuring two Audient Console Mic Preamps, class leading convertersand an intuitive layout, iD24 effortlessly combines astonishing audioperformance with ease of use. Add to that professional must have features likebalanced inserts, ADAT expandability and customizable monitor control, iD24makes getting studio quality results easier than ever.
Every iD interface features the Audient Console Mic Preamp,the same discrete circuit design found in our renowned recording console theASP8024-HE. Designed to deliver ultra- low noise and low distortion with atouch of classic analogue warmth, iD24’s two Audient Console Mic Preampsdeliver a clean, accurate and true to source translation of your audio.
How does It’sound?
The Audient Console Mic Preamp is a high-grade hybriddiscrete and op amp design that delivers a clean, accurate and detailedtranslation of your source.
Now that’s quiet
With a noise floor 30,000 times quieter than the signallevel your recordings will be captured with stunning clarity.
It’s all in the details
Hear every nuance, every aspect of your audio with iD24’sclass leading converters. With 32-bit DAC converter technology and 126dB ofdynamic range, iD24s converters make sure you hear subtle details, identifyproblematic issues and make better mix decisions. Experience remarkable clarityfrom the moment you press play.
Be ready to expand when you need to tackle bigger sessionslike recording drums or a live band with iD24’s optical input and outputconnections. Supporting both ADAT and SPDIF, iD24 lets you boost your I/O byadding up to 8 channels of mic preamps to your setup.
Hardware Integration
Integrate your favorite outboard FX prior to conversion andstart creating signal chains that rival the very best. The insert returns alsogives you direct access to the A/D converters providing the cleanest signalpath possible, making it great for print-backs or integrating outboard linelevel sources.
Plug and play
Designed to replicate the input stage of a classic valveamplifier, iD24’s harmonically rich JFET Instrument Input gives you the perfectsonic foundation for your guitars or basses before you hit your amp sims.
Set up in seconds
iD24 is fully bus powered via USB, meaning there is no needfor an external power supply. Just pro features in a portable desktop packagewith zero compromise on sound quality or performance.
Headphone Outputs
Confidently reference check your mixes on headphones withiD24’s independent stereo headphone amp, providing enough power to supportheadphones up to 600Ohms. And with both a ¼” jack and a mini-jack, iD24 allowsyou to plug in two sets of headphones at once ensuring you and your artist canwork together seamlessly.
Speaker Outputs
Connect and listen to your mixes through two sets ofspeakers with iD24’s four-line outputs. Alternatively use the extra lineoutputs to send audio to an external headphone amp for distribution to yourartists.
Speed up your workflow with iD24’s three programmablefunction buttons. Assign any of the advanced monitoring features, includingSpeaker Select, Talkback, Polarity Invert or Mono Sum, to any of the F-buttonsand quickly take control of your session.
Innovation meets communication
iD24’s dedicated talkback technology enables you to use anyaudio source connected to your computer such as a built-in or USB microphone asyour talkback mic, freeing up valuable mic Preamps for recording.
Experience ultra-low latency
The iD Software Mixer tightly integrates hardware andsoftware, letting you effortlessly set up low latency direct monitoring, createup to two stereo artist cue mixes, name and customize channels, save layoutpresets, assign hardware function buttons and quickly setup advanced routing -all from one easy to use app.
The virtual scroll wheel
Turn iD24’s volume knob into a virtual scroll wheel and takecontrol of a variety of compatible onscreen parameters. Quickly dial insettings, adjust faders or even write in automation without spending hoursstaring at the screen.
Audio Loop-back
Now equipped with Audio Loop-back, iD24 can quicklytransform into a multipurpose powerhouse. Giving you the ability to captureplayback from multiple applications on your computer at the same time as yourmicrophones, Audio Loop-back lets you create a custom audio feed ready to sendto your streaming software. Ideal for content creators, podcasters andstreamers.
iD24’s loop-back feature is controlled via the softwaremixer, enabling you to select the loop-back source from 6 different options tosuit a variety of practical scenarios. Endless possibilities, speedy workflow.
Built-to-last
An all metal, smoke grey chassis alongside hand-milled aluminumknobs and high-grade component selection means iD24 is designed to surviveeveryday use, whether at home on your desktop or up against the wear and tearof travel.
Key Features
- 2 x Class-A Audient Console Mic Preamps
- Class Leading AD/DA Converters
- 1 x Discrete JFET Instrument Input
- Main and Alt Speaker Outputs
- 1 x Independent Dual Headphone Output
- 1 x ADAT Input & Output
- 2 x Fully Balanced Inserts
- Ultra-low Latency DSP Mixer
- Audio Loop-back
- ScrollControl
- 3 x User Defined Function Keys
- Dedicated Dim and Cut Controls
- +48V, Pad, and HPF Switches
- USB 3.0 Compliant
- 24bit/96kHz
- Word Clock Output
- All-Metal Design
- Free Software + Plugins
Technical Specifications
Microphone Preamplifier
MIC GAIN
0 to +58dB
MAXIMUM INPUT LEVEL
+12dBu
CROSSTALK
<-100dBu @ 1kHz & 10kHz
THD+N
@0dBu 1kHz: 0.0015%, -96dB
MIC EIN
-13dBu A-Weighted CMRR:>75dB@1kHz
SNR
97.5dB Unweighted, 100dB A-Weighted
FREQUENCY RESPONSE
+/- 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE (Mic)
3kΩ balanced
INPUT IMPEDANCE (Line)
10kΩ balanced
PAD
-10dB
HPF CUTOFF FREQUENCY
100Hz
PHANTOM POWER
48V +/-4V @ 10mA/Channel
XLR COMBI FEMALE
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Line Inputs
LINE GAIN
-10 to +48dB
MAXIMUM INPUT LEVEL
+22dBU
THD+N @0dBu 1kHz
0.0013%, -97dB
D.I / Instrument Input
D.I GAIN
0 to 58dB
MAXIMUM INPUT LEVEL
+12 dBu
THD+N @ 0dBu (1kHz)
0.0075%, -82dB
SNR
95dB unweighted, 97.5dB A-weighted
FREQUENCY RESPONSE
+/- 0.5dB 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE
500kΩ unbalanced
1/4” JACK
TIP (Hot) & SLEEVE (Shield)
Analogue to Digital Converter
MAXIMUM INPUT LEVEL
12.5dBu=0dBFS
CROSSTALK
@1k -135dB, @10k -125dB
FREQUENCY RESPONSE
+/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz)
0.0004%, -108dB
DYNAMIC RANGE
122dB A-weighted
INPUT IMPEDANCE
>10kΩ
1/4” JACK
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter
MAXIMUM OUTPUT LEVEL
12dBu=0dBFS
THD+N @ 1kHz -1dBFS
0.0003%, -110dB
DYNAMIC RANGE
126.5dB A-weighted
CROSSTALK
-130dB @ 1kHz, -115dB @ 10kHz
FREQUENCY RESPONSE
+/- 0.1dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE
<100Ω
1/4” JACK
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs
MAXIMUM OUTPUT LEVEL
18.5dBu=0dBFS
THD+N @ -1dBFS (1kHz)
0.0006%, -104dB
DYNAMIC RANGE
124dB A-weighted
CROSSTALK
-117dB @ 1kHz, -101dB @ 10kHz
FREQUENCY RESPONSE
+/- 0.2dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE
<50Ω unbalanced
MAX LEVEL INTO 30R
2.63V Peak, 1.87V RMS, 232mW
MAX LEVEL INTO 60R
4.28V Peak, 3.03V RMS, 295mW
MAX LEVEL INTO 600R
7.91V Peak, 5.6V RMS, 104mW
USB 2.0 High Speed
NO. OF INPUT CHANNELS
10 (2 Analogue, 8 Digital)
NO. OF OUTPUT CHANNELS
14 (6 Analogue, 8 Digital)
CONNECTOR
USB Type-C
INCLUDED CABLES
1m USB 2.0 Type-C to Type-C
Digital Input
8-CHANNEL ADAT
44.1kHz to 48kHz
4-CHANNEL ADAT
88.2kHz to 96kHz (SMUX)
STEREO S/PDIF44.1kHz to 96kHz (Stereo)
Digital Output
8-CHANNEL ADAT
44.1kHz to 48kHz
4-CHANNEL ADAT
88.2kHz to 96kHz (SMUX)
STEREO S/PDIF44.1kHz to 96kHz (Stereo)
DSP Mixer Latency
Round Trip (in-to-out)
44.1kHz:0.344ms
48kHz:0.312ms to 96kHz (SMUX)
88.2kHz:0.188ms
96kHz:0.177ms
Word Clock Output
WORD CLOCK OUTPUT
44.1kHz to 96kHz
