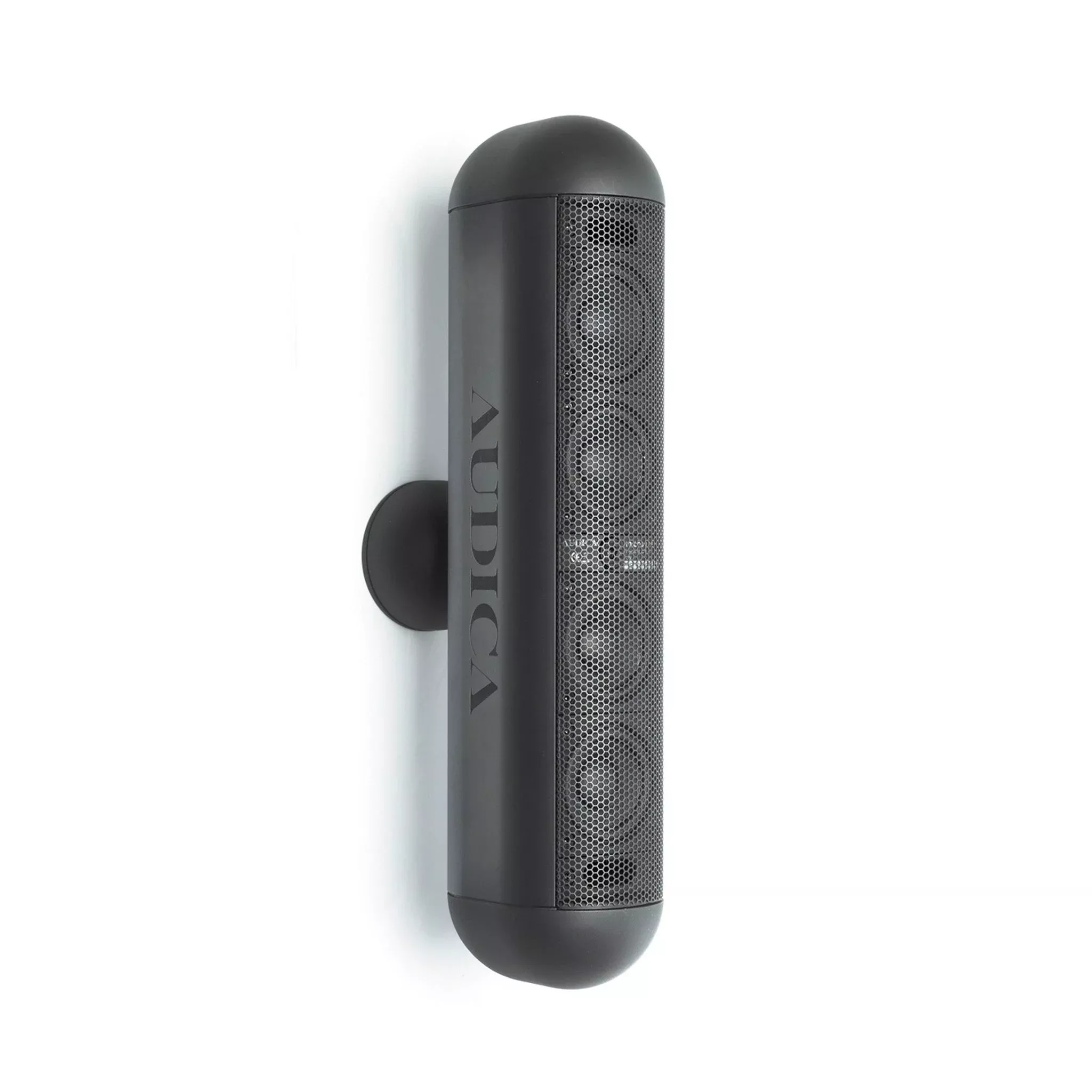

Audica MICROline Wall-Mount Column Speaker, Black
Traditional design of loudspeakers for these applicationshas either been large boxes that give full-range audio, but which areinherently less attractive or more visible, or sub-sat systems that use tinysatellite loudspeakers for mid/high frequencies and a subwoofer for mid/bass.The main problem with sub-sat systems in public spaces is that people are oftenlistening close to thin sounding satellites with the mid/bass rumbling away inthe distance, disconnected in bringing the critical mid-band together for audioquality.
With the MICROline we’ve designed the smallest possibleloudspeakers to give high quality over a wide audio band so that, no matterwhere you are in the room, the sound from the main loudspeakers remainscoherent and pleasing. For most applications no additional bass loudspeakersare required.
For applications requiring extended, higher level bassperformance, such as an Audio-Visual system playing back film material, theMICROsub 3 can be used to augment the output of the MICROline and carefullytuned just to add extended bass and not confuse the mid-band.
With all of the MICROseries loudspeakers, aesthetics hasbeen a prime consideration. This starts with the family look, which is softlyshaped to merge into the environment. Secondly with the selection of materials,which have to be acoustically excellent but also provide for flexibility ofdesign and quality of appearance. The MICROline uses aluminum extrusions withmoulded aluminum end-caps. Grilles are micro-perf steel for acoustictransparency with durability.
Equally important for aesthetics, and speed and quality ofinstallation, are the fixings and brackets. The MICROline has a unique andsecure integral bracket, merging the design of loudspeaker and bracket. Onlythe bracket needs to be fixed and connected during first-fix. Fitting theloudspeaker, with pre-wired cable management through the bracket, is then doneas required and the position locking screw is hidden behind the loudspeakergrille. A high degree of tilt and pan are catered for, allowing for wall orceiling mounting with the required angle of coverage.
Key Features
- 2 x 50mm full range drive unit
- 2 x 50mm low frequency drive unit
- Frequency response: 70Hz to 20kHz
- Power Handling: 50W
- Impedance: 8 Ohm
- Dispersion: 120 degrees Horizontal x 30 degrees Vertical-6dB at 4kHz
Technical Specifications
Drive units
2 x 50mm full range drive unit
2 x 50mm low frequency drive unit
Frequency response
70Hz to 20kHz
Power Handling
50W
Impedance
8 Ohm
Dispersion
120 degrees Horizontal x 30 degrees Vertical -6dB at 4kHz
Finish
Black or White
Fixing
Integral bracket allowing 360º rotation, 120º pan and 60ºtilt
Dimensions (mm)
H 378 x W 80 x D 151 (including bracket)
Weight
1.8Kg
