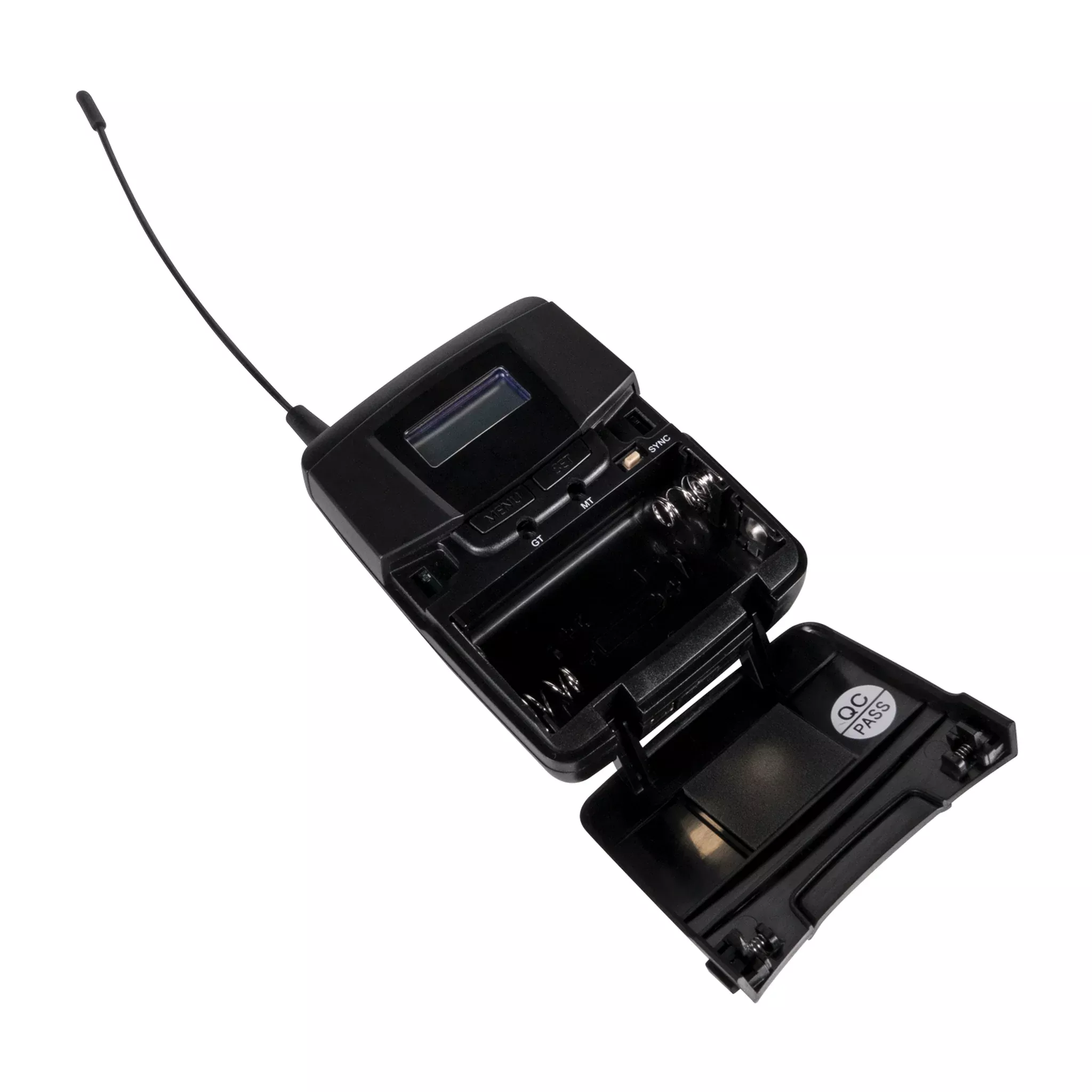

AtlasIED MWBPT Wireless Belt‑Pack Microphone Transmitter
The AtlasIED MWBPT is a UHF wireless belt-pack transmitter engineered for classrooms, conference rooms, lecture halls, and live presentations. It operates across 100 selectable UHF frequencies and supports both headset and lavalier microphones.
Its multi-function LCD displays channel, frequency, battery type, and power level. It runs on two AA batteries (alkaline or NiMH) for up to 16 hours and offers both high/low impedance gain controls to accommodate various mic types.
Key Features
- UHF Frequency Range: 566–585.8 MHz with 100 selectable channels
- Transmission Power: Up to 35 mW RF output
- Battery Operation: Two AA batteries (alkaline or NiMH) with 16 h runtime
- Gain Controls: High and low impedance selectable
- Connector: Standard 4‑pin mini‑XLR for headset/lavalier
- Display & Sync: LCD display and 2‑way IR synchronizing with receiver
- Antenna: ¼‑wave whip
- Portable Design: Detachable belt clip with compact housing
Technical Specifications
- Frequency Range: UHF 566–585.8 MHz
- Switching Bandwidth: 20 MHz
- Selectable Frequencies: 100
- RF Power Output: <35 mW
- Dynamic Range:> 110 dB
- THD: <0.5 %
- Spurious Emission:> 60 dB below carrier
- Peak Deviation: ±40 kHz
- Display: LCD multi-function
- Power Source: 2 × AA batteries (alkaline or NiMH)
- Battery Life: 16 hours (alkaline)
- Connector: 4‑pin mini‑XLR
- Antenna: 1/4‑wave whip
- Dimensions: 3.31″ × 2.52″ × 0.91″ (84 × 64 × 23 mm)
- Weight: 0.17 lbs (0.076 kg)
- Shipping Weight: 0.45 lbs (0.20 kg)
- Shipping Dimensions: 9.0″ × 4.5″ × 2.0″ (229 × 114 × 51 mm)
- Warranty: 12 months from purchase
What’s Included
- MWBPT transmitter unit
- Detachable belt clip
- Battery compartment cap
- User manual and datasheet (available online)
