AtlasIED BBWP-K1 Series BlueBridge Level Audio Controller
The AtlasIED BBWP-K1B is a professional-grade level controller from the BlueBridge® DSP product line, designed to give precise control over audio processing parameters such as gain, threshold, and frequency adjustments. Seamlessly integrated with BlueBridge® Designer software, this controller allows users to assign level values virtually and stack multiple actions for efficient audio management in commercial audio installations.

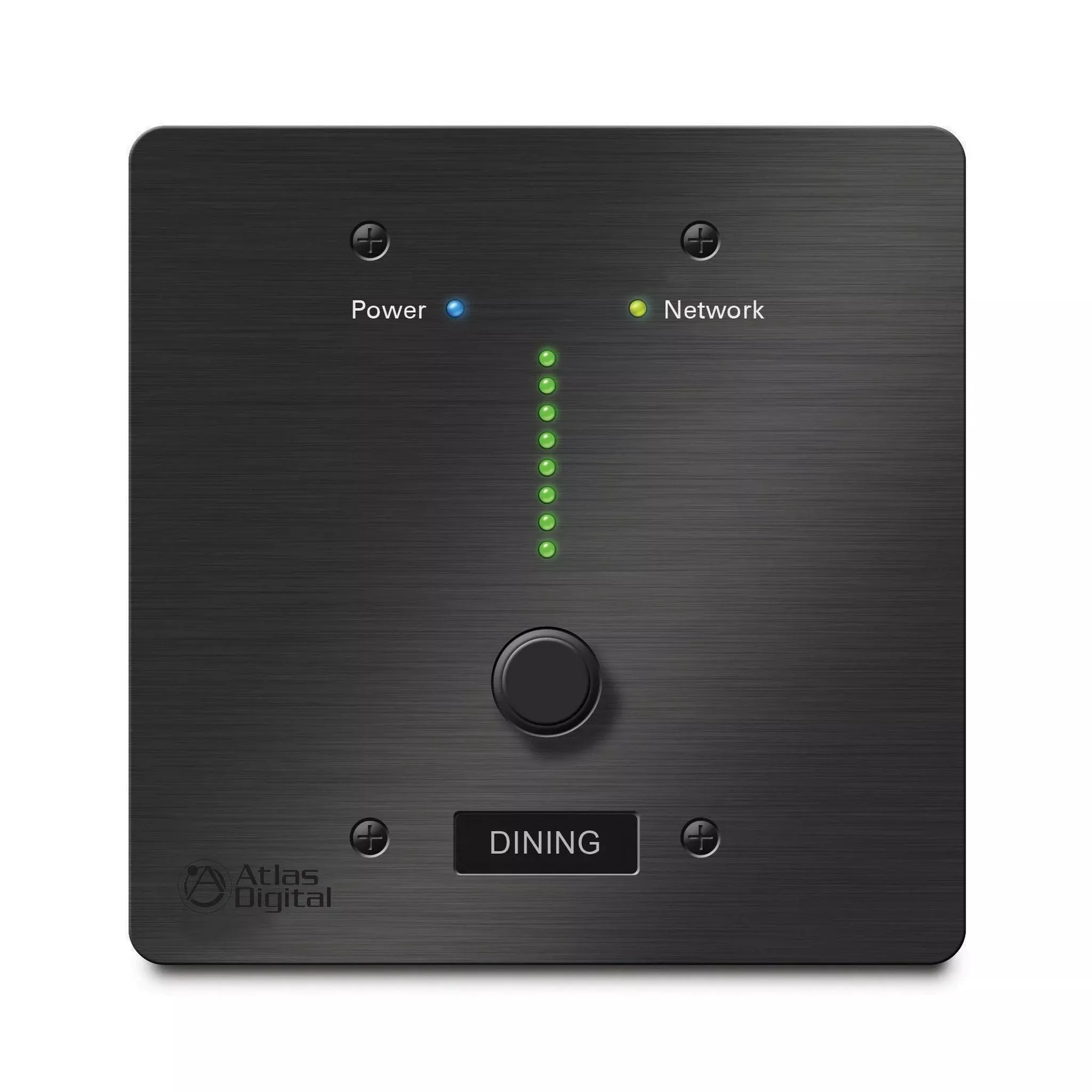

Featuring a sleek aluminum front panel with an LED ladder level indicator, the BBWP-K1B provides visual feedback on power and network status via dedicated LEDs. It supports easy wall mounting in a standard 2-gang back box and offers versatile connectivity options, including an RJ45 Ethernet connector and a 2-pin detachable Euro power connector. Designed for convenience and reliability, this PoE-enabled unit simplifies installation with one-cable networking and power support.
Key Features
- Power and Network Status Indicator LEDs
- Single Label Slot with Plastic Protective Cover
- Level Control with LED Ladder Level Indicator
- Aluminum Front Panel for durability and style
- RJ45 Ethernet Connector for network communication
- External Power via 2-Pin Detachable Euro Connector
- IP Reset Switch Push Button
- Available in Black (BBWP-K1B) and White versions
- PoE Enabled for single cable installation
- UL Listed and Network Ready
Technical Specifications
- Model: BBWP-K1B
- Power: 5V DC @ 1A (Power Supply Included), 48V DC PoE
- Wall Mounting: 2-Gang Back Box
- Height: 4.5-Inch (114.3mm)
- Warranty Period: 36 months from date of purchase
