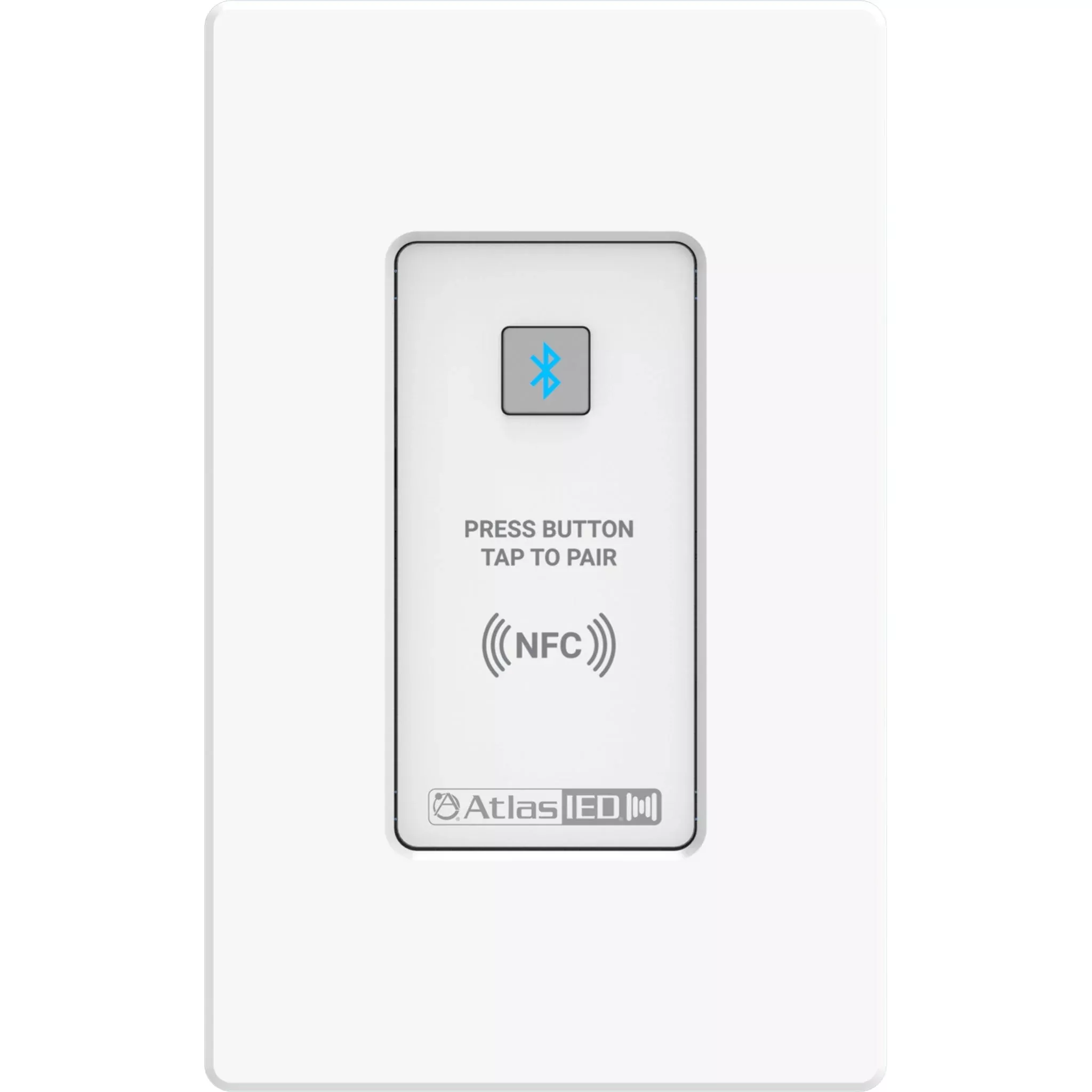

AtlasIED A-BT Atmosphere Remote-Controlled Bluetooth Audio Wallplate
The AtlasIED A-BT is a remote Bluetooth audio input designed for seamless integration with the Atmosphere™ AZM audio processor. This wall-mounted device enables wireless audio streaming, allowing users to connect their Bluetooth-enabled devices effortlessly. With its plug-and-play functionality, the A-BT simplifies the setup process, making it an ideal choice for both commercial and residential audio applications.
Featuring NFC tap-to-pair technology, the A-BT ensures quick and secure connections. The device automatically detects the connected Bluetooth source and dynamically adjusts audio settings such as makeup gain, EQ, and auto gain control. Additionally, the A-BT supports user-defined broadcast names (SSID) and accommodates up to eight Bluetooth connections simultaneously, providing flexibility and convenience for various audio environments.
Key Features
- Bluetooth Standard: V4.2
- Audio Profile: A2DP
- Open Air Range: 60 ft
- Pairing Indicator: Front panel LED (Green = Paired, Red = Error, Blue = Pairing Mode)
- Pairing Method: NFC Tap-to-Pair
- Broadcast Name: User-defined SSID
- Simultaneous Connections: Up to 8 Bluetooth devices
- Audio Output: Mono (Stereo source summed to mono)
- Digital Audio Return: Yes, to host processor
Technical Specifications
- Dimensions: 1.78″ H × 4.2″ W × 1.4″ D
- Weight: Approximately 0.3 lbs
- Minimum Box Depth: 2.25 inches
- Mounting: Decora-style wall plate
- Connectivity: RJ-45 (Ethernet) for data and audio
- Compatibility: AtlasIED Atmosphere™ AZM audio processors
- Warranty: 36 months from date of purchase
What’s Included in the Box
- AtlasIED A-BT Remote Bluetooth Audio Input Wallplate
- Quick Start Guide
- Installation Instructions
- Warranty Information
