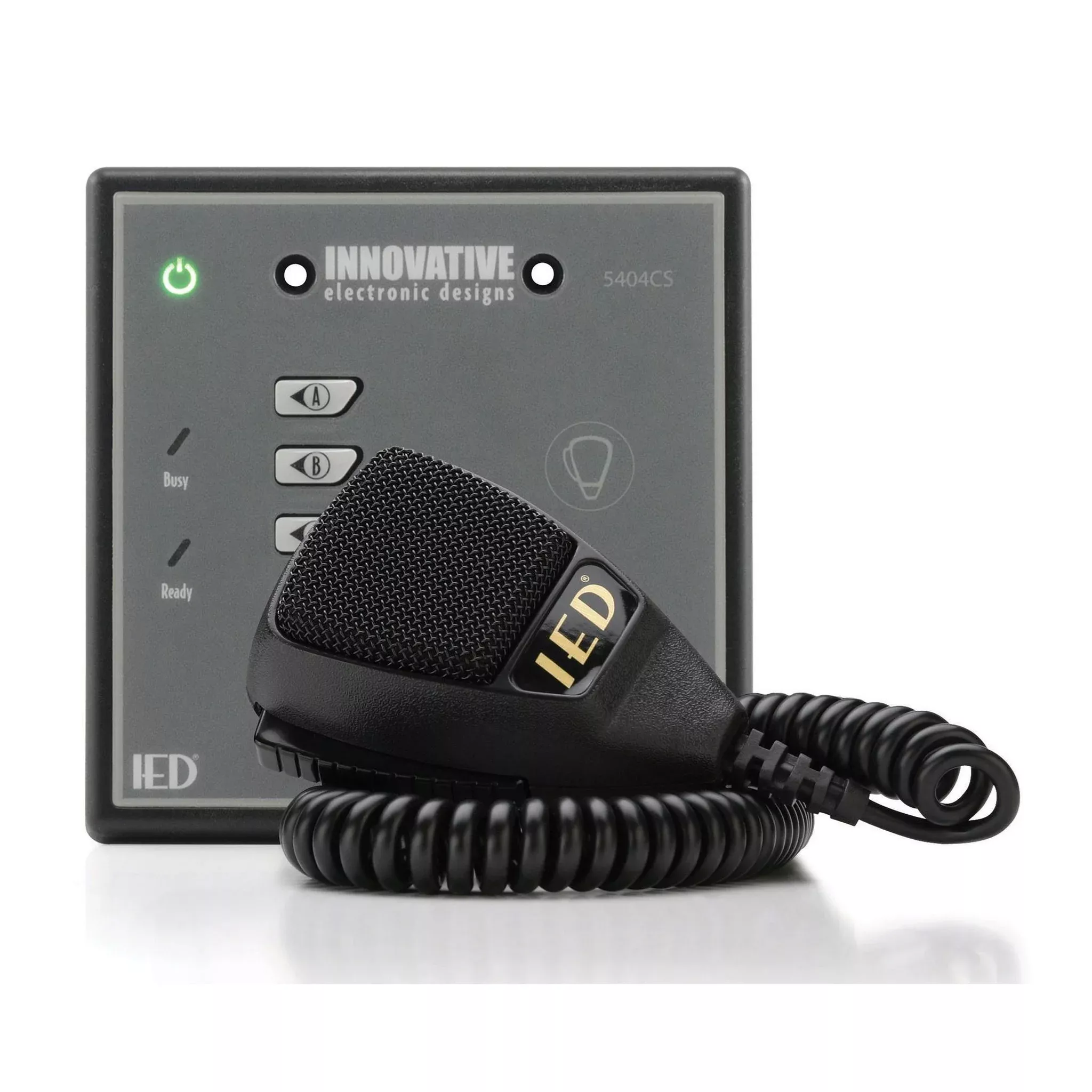

AtlasIED 5404CS 4-Button Dante Digital Microphone Station
The AtlasIED 5404CS is a four-button digital microphone station designed for initiating audio and visual announcements with 5400ACS Announcement Control Systems. It connects via a single Ethernet interface for both audio and control data, requiring no additional configuration.
Equipped with Dante™ networking technology, the 5404CS delivers full-bandwidth, low-latency audio over standard Ethernet infrastructure. It operates on IEEE 802.3af Power over Ethernet (PoE), making it compatible with off-the-shelf PoE network switches. Ideal for day-to-day paging in dual-use life safety systems, the 5404CS mounts using standard 1- or 2-gang electrical boxes.
Key Features
- Four-button interface: Triggers audio/visual messages and pages
- Dante-enabled: Digital audio transmission with low latency
- PoE compatible: Operates via any IEEE 802.3af PoE switch
- Network-ready: Single Ethernet interface handles audio and control
- Status indicators: Power, busy, and ready LEDs
Technical Specifications
- Model: 5404CS
- Dimensions: 4.95 x 1.9 x 4.95 inches (126 x 48 x 126 mm)
- Connectivity: Ethernet (Dante audio and control), IEEE 802.3af PoE
