AtlasIED 1112PSM 12VDC Power Module for 1112PS Rack Supply

AtlasIED 1112PSM 12VDC Power Module for 1112PS Rack Supply

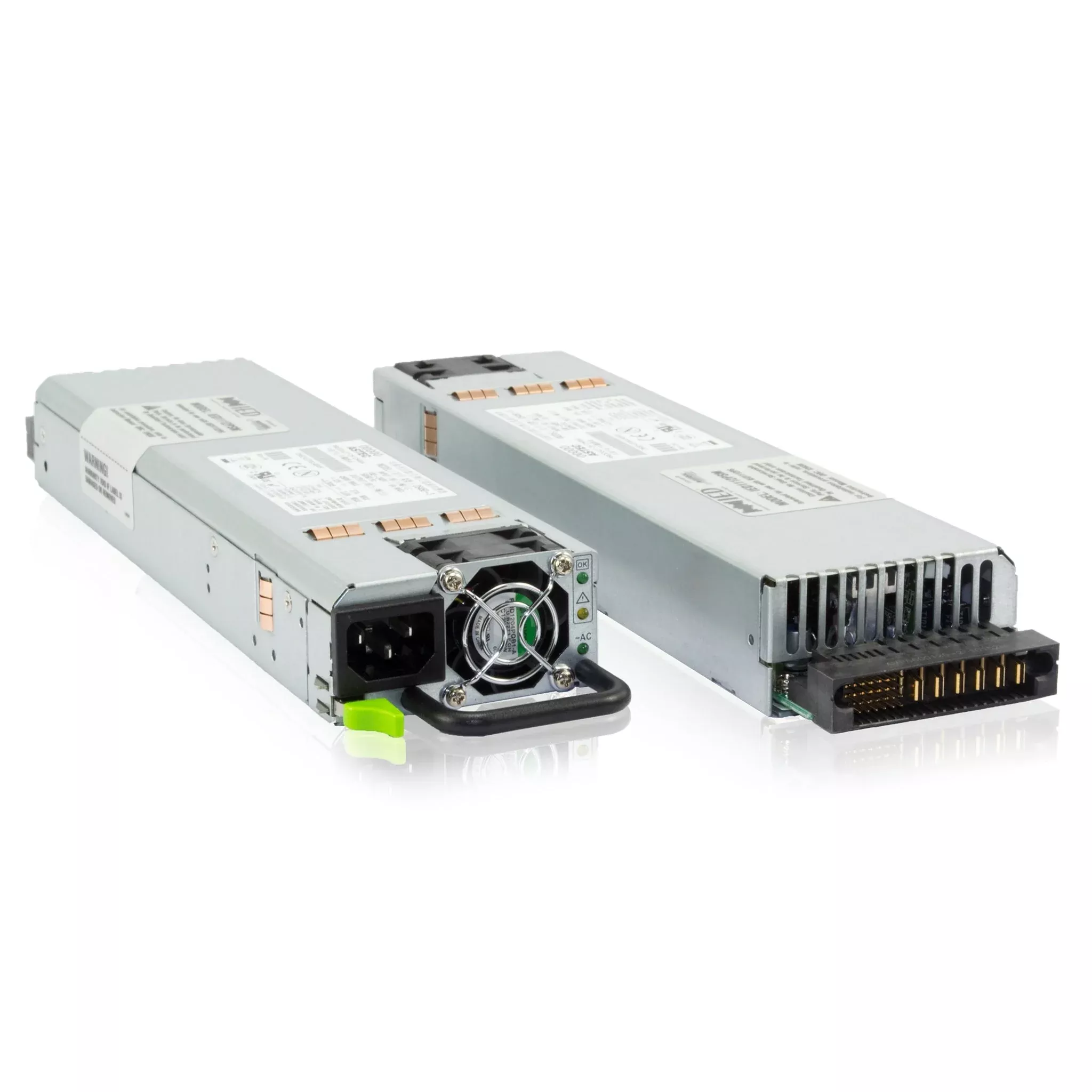

The AtlasIED 1112PSM is a high-efficiency, plug-in power supply module engineered for use with the 1112PS rack mount chassis. Each module provides up to 37 amps of +12V DC power and supports redundant load sharing when two modules are installed in the same chassis. If one module fails, the second automatically assumes the full load while communicating a fault to the system.

Designed for global use, the 1112PSM accepts universal AC input and integrates built-in cooling fans with variable speed control. Diagnostic LEDs indicate AC input, DC output, and fault status. Its compact design ensures compatibility with AtlasIED power management hardware in mission-critical AV and life safety environments.

Key Features

• High Output: Supplies up to 37 amps of +12V DC power
• Redundant Operation: Two modules in tandem ensure uninterrupted load delivery
• Thermal Management: Integrated fans with auto speed control for optimal cooling
• Built-In Diagnostics: Rear-panel LEDs indicate input/output/fault status
• Global Input Range: Accepts 100–240VAC for worldwide installation

Technical Specifications

• Model: 1112PSM
• Dimensions: 13.29 x 3.07 x 1.52 inches (338 x 78 x 39 mm)
• Weight: 2.6 lbs (1.2 kg)
• Input Voltage: 100–240VAC, 50–60 Hz, 8 amps max
• Output Voltage: +12VDC (±5%)
• Output Current: 37 amps
• Input Connector: IEC 60320 Type C-13
• Output Connector: FCI Power Blade
• Warranty: 36 months from date of purchase
