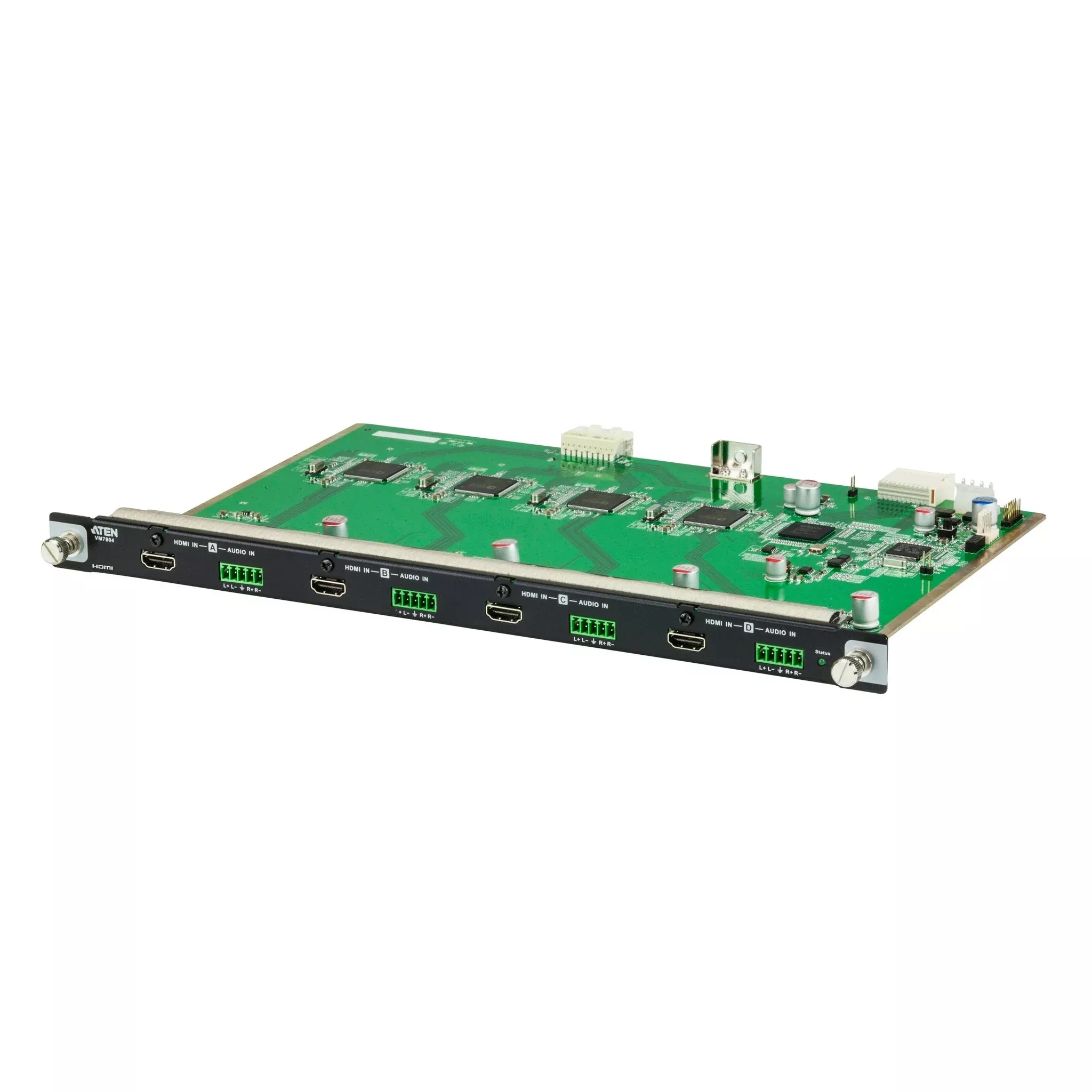

The VM7804 4-Port HDMI Input Boardprovides a simple solution for routing up to 4 audio/video sources to 4displays when used with an ATEN Modular Matrix Switch.
Additionally, the VM7804 allowsfor HDMI audio extraction and the embedding of stereo audio.
Key Features
- Excellent video clarity – HDTVresolutions available in 480p, 720p, 1080i, and 1080p (1920 x 1080)
- HDMI compatibility with supportfor 3D and Deep Color; HDCP 1.4 Compatible
- Convenient Consumer ElectronicsControl (CEC) support
- Enhanced EDID Expert feature foroptimal EDID settings and seamless power-up
- Simplified customization of EDIDsettings with the built-in EDID wizard
- Easy integration of I/O boardswith hot-swappable design
- Audio-enabled with the ability toextract HDMI audio and embed stereo audio.
Technical Specifications
Video Input Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
Up to 5m
Max. Data Rate
6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
Up to 1920 x 1080
Audio Input
4 x Captive Screw Connector, 5Pole
*Audio signal type: stereo,balanced/unbalanced.
Power Consumption
7W:33BTU
Operating Temperature
0 – 40°C
Storage Temperature
-20 – 60°C
Humidity
0 – 80% RH, Non-Condensing
Housing
Metal
Weight
0.58 kg ( 1.28 lb )
Dimensions (L x W x H)
35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Note
For some of rack mount products,please note that the standard physical dimensions of WxDxH are expressed usinga LxWxH format.
Included
1x VM7804 4-Port HDMI Input Board
4x Terminal Blocks
1x User Instructions
