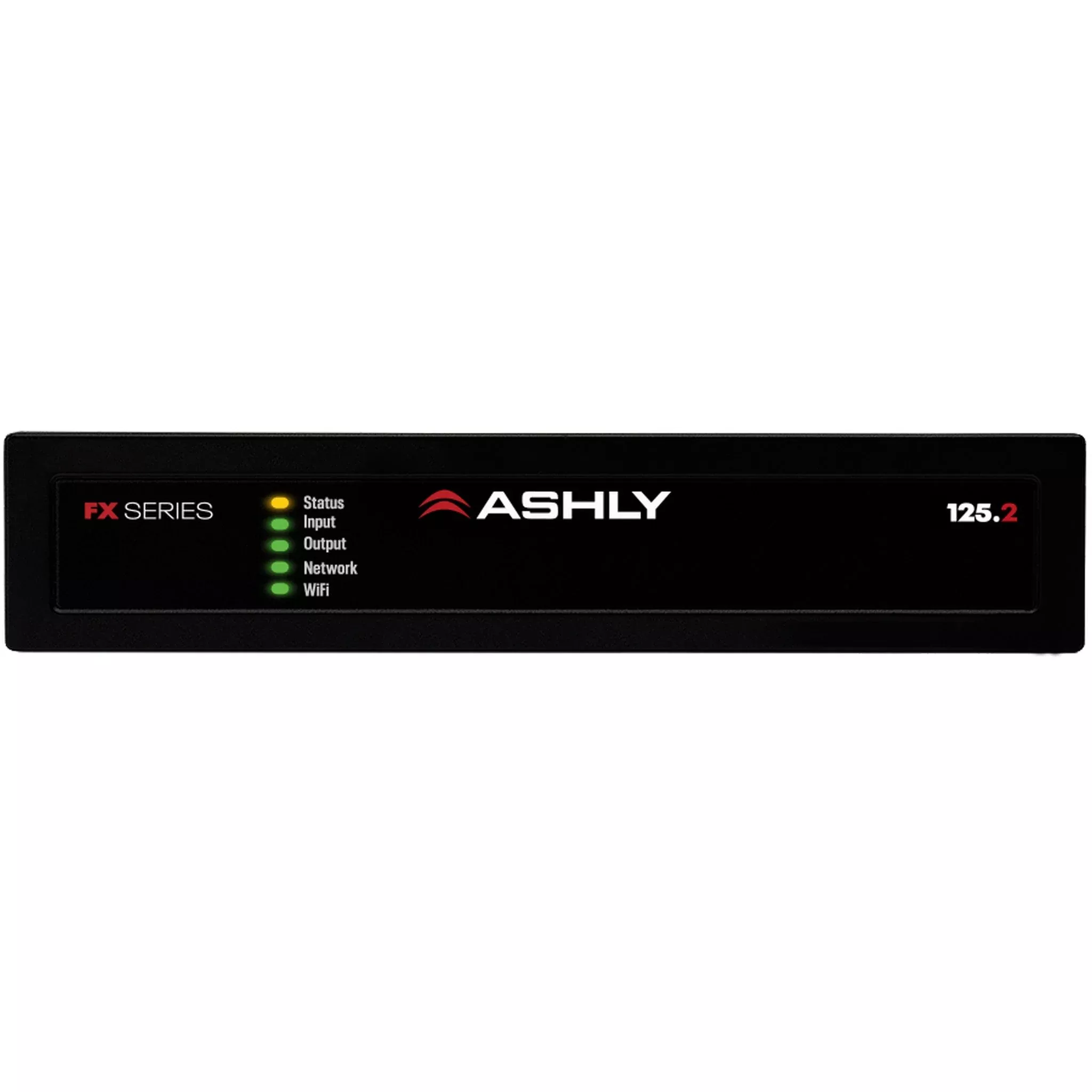

Ashly FX125.2 Half-Rack Compact 2-Channel 125W DSP Power Amplifier
The FX Series’ pedigree is the culmination of compact ClassD design and Ashly’s years of developing easy-to-use software. Along with anewly incorporated DSP engine & software UI, the FX series takesamplification to new levels. Each FX model offers a healthy compliment of IO(include Digital SPDIF In & Out) and programmable integration ports forremote Volume Control, GP triggers and more. FX is networkable via Ethernet forwired LAN connection, or via its built-in WiFi hotspot. FX allows systemconfigurations that don’t require additional equipment, such as stand-alone DSPor speaker system processors. All of that is in one box.
The FX Series features a powerful DSP engine that canconfigure to suit virtually any task, without the need for additionalequipment. From processing input sources, routing and output DSP that can finetune the sound of any speaker. Everything you need is right there. These willmix into Zones A-D and then into Outputs (2 or 4 depending on the number ofamplifier channels). All models have a 4-channel DSP configuration with Inputprocessing, Zone Processing, Output Processing, Speaker Processing and DeviceSettings
Key Features
- 125W x 2 @ 4/8 Ohms, 1 x 250W @70/100V
- Intuitive Browser-based software Interface
- Comprehensive DSP (4 Input x 2 Output)
- Ethernet & Wi-Fi (WAP) connectivity for DSP control
- Dynamic Power Sharing-up to 250W (single channel driven)
- Advanced Dynamic Power Sharing distributes power betweenchannels, with 2x channel power
- Networkable via Ethernet or built-in WiFi
- Built-in advanced DSP on all inputs & outputs,including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters,X-Over, Polarity & Delay
- Browser-based UI accessed via PC or mobile device. Nosoftware to install
- All models have 4 Input channels x 2 or 4 Output channels
- Auto/Manual Power Saver Mode (sleep/standby), adjustable inSoftware
- Customized Speaker Presets made be created, saved &loaded for each output channel
- Addressable GPIO, Standby/Mute & VC remote ports. VCassignable per channel via software
- 1/2 RU models easy to hide in “non-rack” installations
- Highly efficient Class D and lightweight
- Optional hardware for 1/2 RU models for rack &wall/surface mounting
