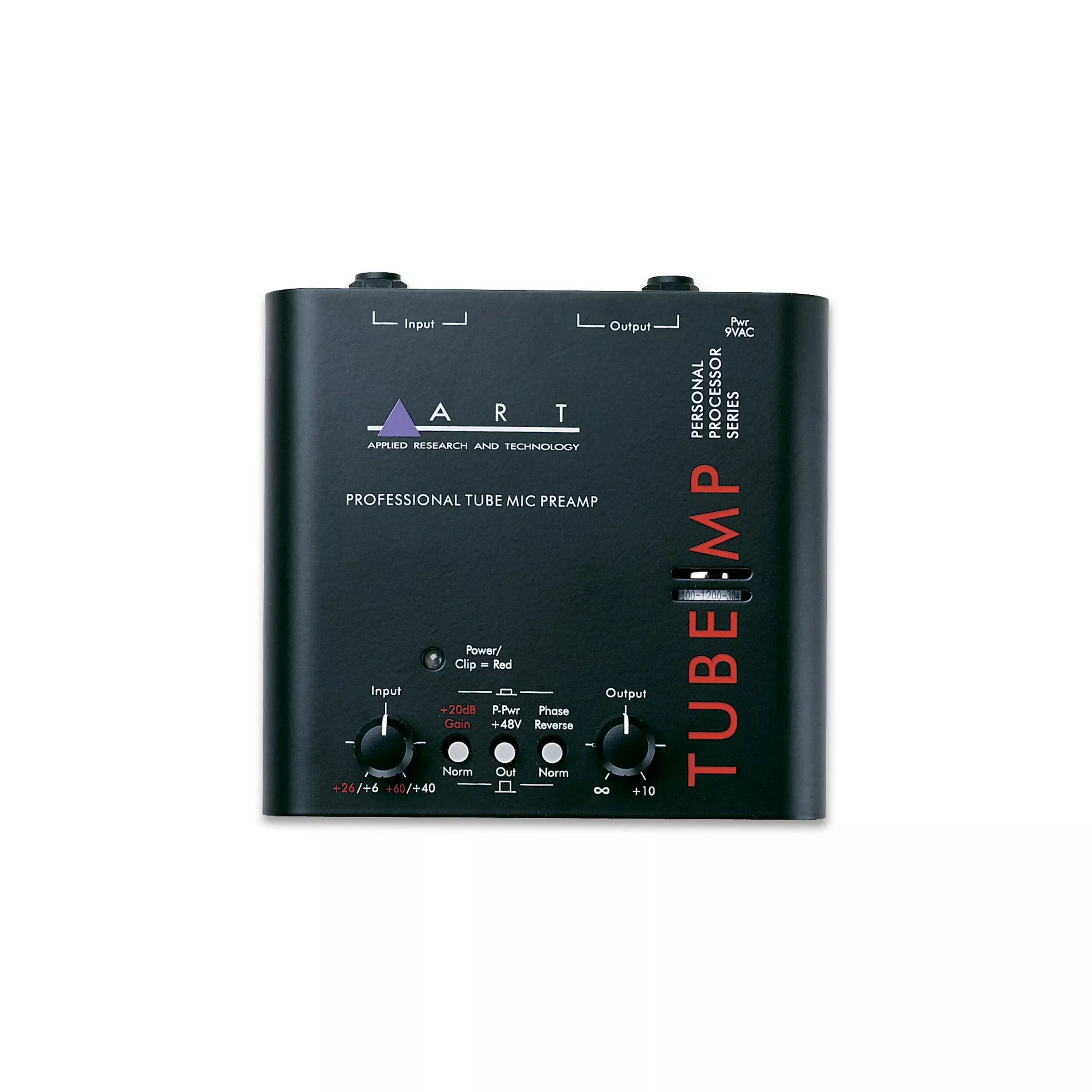

ART Tube MP Microphone Preamplifier
The Tube MPis the world’s most popular external tube microphone preamp. Whether you’reworking with a digital, computer or analog recording system, the Tube MP’s TECaward nominated design will allow you to obtain professional recording studioresults at a fraction of the cost of comparable equipment. The hybrid design ofthe Tube MP allows it to add warmth and fatness to a signal while maintainingexceptionally low-noise and high quality. While its primary application is tobe used with a microphone, the Tube MP is an exceptional direct box – impedancematching, amplifying and improving the sound of any instrument plugged into it.
The usage ofexternal mic/line preamps has become increasingly popular over the past severalyears. The Tube MP offers superior performance and sound quality to the“on-board” preamps found in today’s low-cost mixers and multi-trackers. It’ssound has been consistently favored over other products costing upwards toten-times its price. Professional quality sound combined with professionalfeatures like
ahand-selected 12AX7a tube, phantom power and phase reverse are what have madethe Tube MP a staple in thousands of studios worldwide. For a minimalinvestment, a Tube MP can provide the single largest improvement to the soundof your studio.
Key Features
- ProvidesSuperior Preamplification for
- Microphones,Instruments and Line Level Sources
- HandSelected 12AX7a Provides 70dB of Gain Smooth, Warm and Fat Sound Quality
- VariableInput and Output Gain Controls
- Excellent asa Tube DI
- XLR and 1/4”Inputs and Outputs +48 volts
- PhantomPower
- PhaseReversal Switch
- SuperiorSonic Performance to On-Board Preamps
- TEC-AwardNominated Design
- Portable,All Steel Construction
- 1 YearWarranty
TechnicalSpecifications
Frequency Response
10Hz to 20kHz(+0,-1dB)
Total Harmonic Distortion
<0.1%(typical)
CMMR
> 75dB(typ @1kHz)
Dynamic Range
> 100dB(20Hz to 20kHz)
Equivalent Input Noise
-129dBu (‘A’weighted XLR to XLR)
Input Impedance
2k OHM(XLR), 840K OHM (1/4”)
Maximum Gain
70dB (XLR toXLR typical)
Maximum Input Level
+14dBu(XLR), +22dBu (1/4”)
Maximum Output Level
+28dBu(XLR), +22dBu (1/4”)
Output Impedance
600 OHM(XLR), 300 OHM (1/4”)
Power Requirements
9 VAC @700ma (typ)
Dimensions
5.0”D x 5.5”Wx 2.0”H
Weight
1.5 lbs
