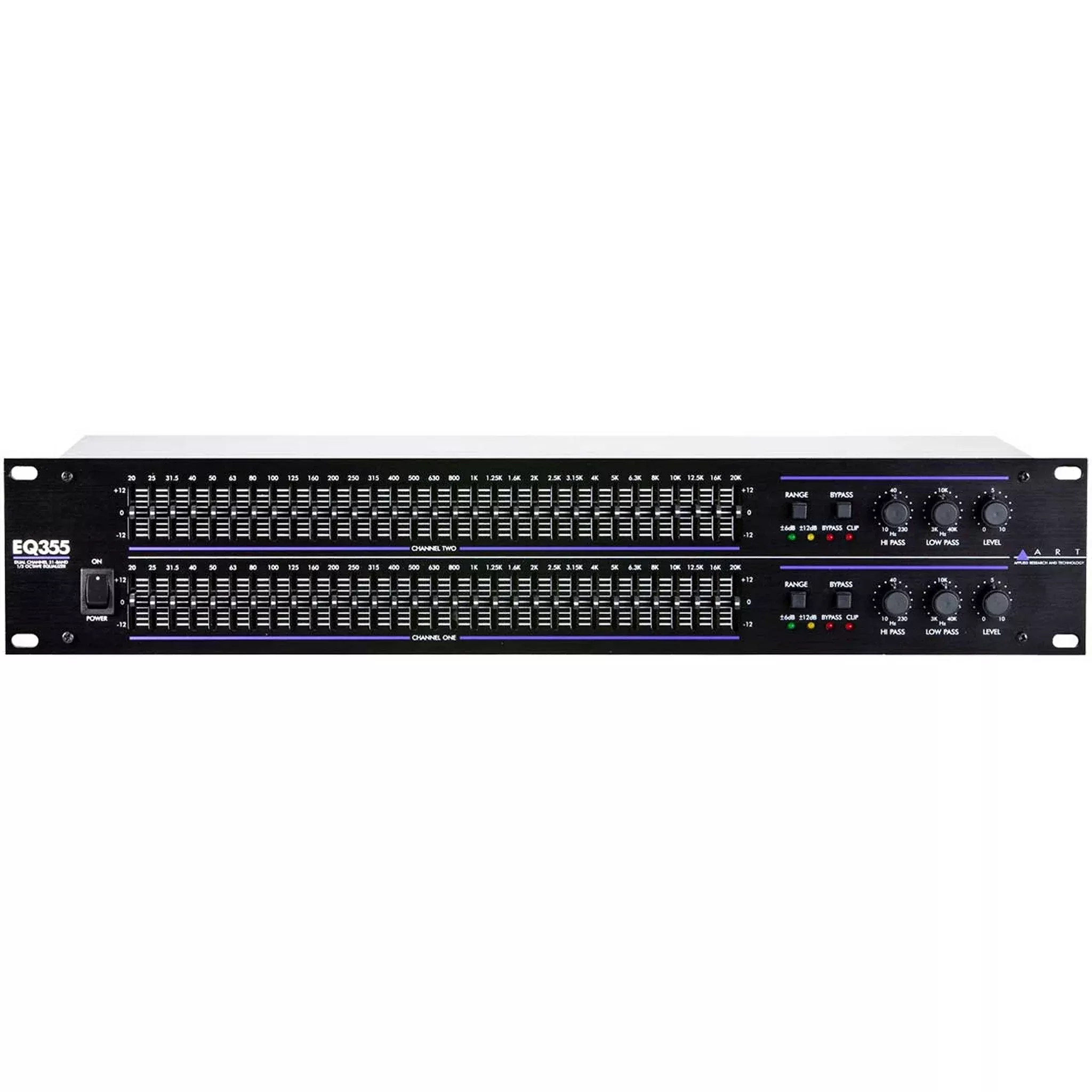

ART EQ355 Dual 1/3 Octave EQ (Used)

ART EQ355 Dual 1/3 Octave EQ (Used)

Like New: Open box product with no signs of use.

The ARTEQ300 Series of graphic equalizers have been designed and engineered toextremely high standards for audio performance and functionality. Theseinnovative, high-quality equalizers are perfect for virtually any audioapplication where precision frequency tailoring, reliable performance, ruggeddesign and extremely silent processing is important. Rugged construction andsolid audio performance make these equalizers particularly well suited to fixedinstallation as well as touring live sound systems.

Key Features

• Dual Channel31-Band Graphic Equalizer
• BalancedXLR, Active Balanced 1/4”, and Unbalanced RCA Input and Output Connectors
• IndependentLevel and Bypass Controls Per Channel
• Rugged AllSteel Construction
• Constant-QFiltering
• VariableHigh-Pass and Low-Pass Filters
• 20mm CenterDetented Frequency Band Sliders

TechnicalSpecifications

Filter Type
Constant Q -3% center accuracy
Frequency Bands
31, 1/3octave, ISO spacing
Frequency Response
20Hz to20kHz, +0.5dB
High Pass Filter
10Hz to250Hz, 12dB/oct
Input Impedance
20k(bal),15k(unbal)
Input/Output Connections
Activebalanced XLR and 1/4” TRS {XLR pin 2, 1/4” tip = Hot (+)} Unbalanced RCA
Low Pass Filter
3kHz to40kHz, 12dB/oct
Maximum Input Level
+22dBm
Maximum Output Level
+18dBm(bal), +22dBm (unbal)
Power
(Switchable)95-130VAC, 50/60Hz, 22 W (USA)
Range
+/-6dB or+/-12dB selectable
Signal to Noise Ratio
-94dB
Slider Travel
20mm w/positive center detent
Total Harmonic Distortion
0.0001
Warranty
One Year
Dimensions
3.5”H x 19”W x 8.5” D
Weight
9.0lbs(4.1kg)
