Anton Bauer D-Box for Sony Venice, V-Mount, 8075-0298

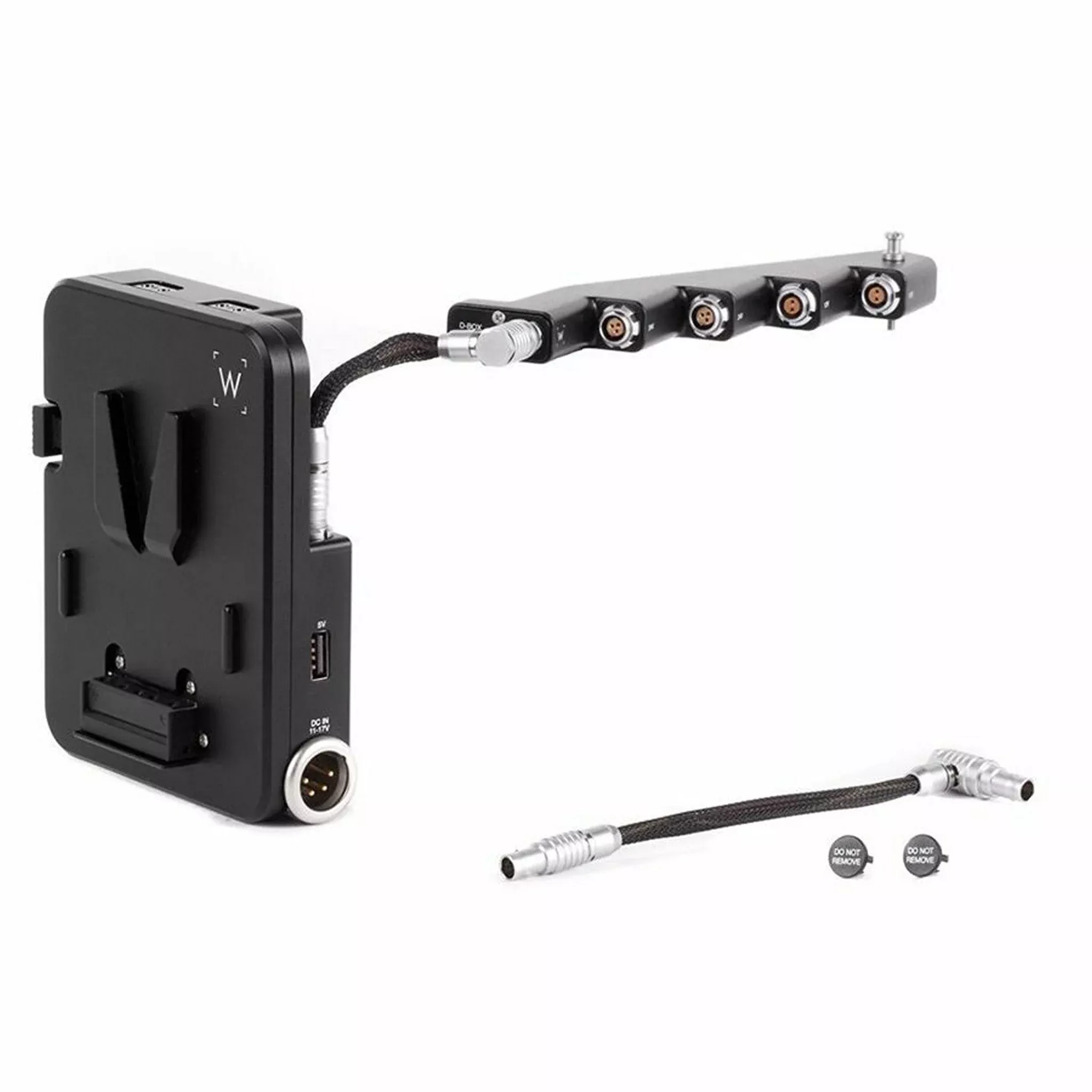

D-Box (Sony Venice, V-Mount) adds power distribution,standardized remote start/stop, and hot swap abilities for the Sony Venicecamera. The D-Box main unit attaches to the back of the AXS-R7 or to theV-Mount plate on the camera rear and the Power Strip portion attaches to thetop right side of the camera via a 3pin Fischer and the tape hook threadedhole. Connectors on the D-Box Power Strip are contoured to match the cameraprofile and connector angle which allows for all cables to be installed with noobstructions. The module communicates with the camera and allows any ARRIstandard start/stop trigger to be used with the 3pin Fischer port including theARRI UMC-4 / WCU-4. The DC input on the D-Box is the same as the camera’s 4pinXLR connector allowing for an AC power supply, external power plate, or VCLXblock battery to be connected to power accessories and camera during a batterychange. When both battery and DC input are utilized, the D-Box defaults to theDC input, leaving the onboard battery fully charged. Physical fuses have beenreplaced by a processor-controlled amp limit which is settable to 3.8, 5.8, or9 amps using the slide switch on the operator’s side. Should the user exceedthe set current for accessories, only the accessory outputs are disabledleaving the camera running normally. Once the current load has been reduced byeither removing accessories or reconfiguring, the reset button can be pressedto enable accessory power again. The “DC IN” and “BATT” LEDs are dual LEDs.This means the LED If battery voltage is above 12.5V the LED will be green. Ifthe battery voltage is below 12V the LED will be red. If the battery voltage isbetween those values the LED will be orange (red + green). Flashing may occurduring phase transition. Highest quality Anton/Bauer components are used in theV-Mount assembly and the unibody power plate design is both extremely durable andlightweight.
Technical Specifications
Mount type
V-Mount
Camera Brand
Sony
Weight
16.94 oz
Height
4.46 in
Width
1.24 in
Depth
5.20 in
What’s in the box?
Interfaces: 1x V-Mount Power Plate
2x 3pin Fischer at 24V with Run Stop
Regulator built in to convert battery voltage to 24V
Maximum 3A surge, 2.5A sustained shared between connectors
2x 2pin LEMO at 12V unregulated
ARRI standard wiring
Maximum 7A current rating, shared between connectors
2x P-Tap at 12V unregulated
Maximum 9A current rating, shared between connectors
1x 5V USB
Maximum 2.5A
1x 4pin XLR DC Input
For use with 14.4V block batteries
DC Input takes priority when voltage is between 12.9-18V
Accessories are powered when utilizing DC Input
