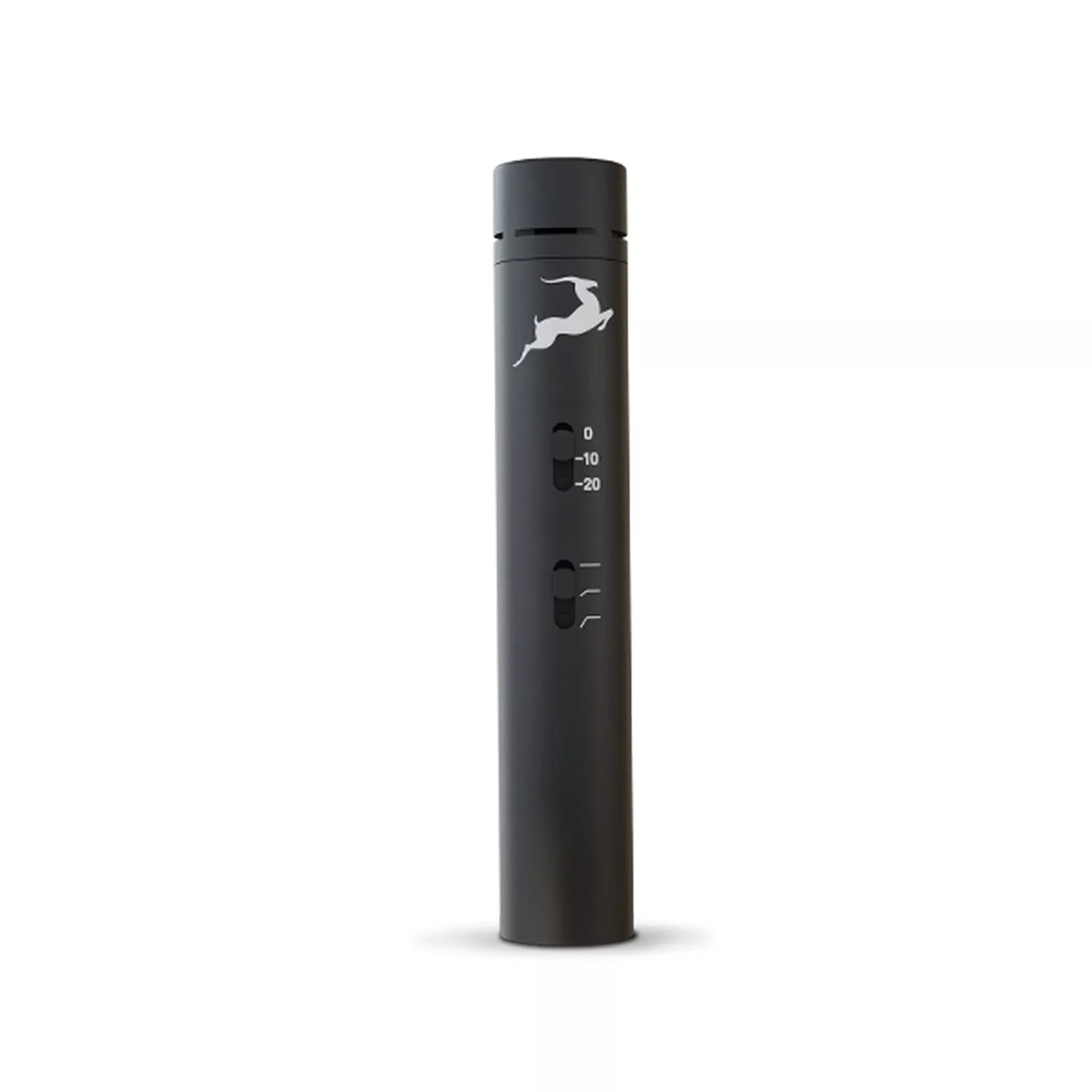

Antelope Audio Edge Note Small-Diaphragm Modeling Microphone
The Edge Note is a compact small-diaphragm condenser microphone that combines physical audio capture with powerful real-time modeling. Featuring 13 emulations of classic microphones, it offers unmatched versatility for a wide range of instruments—from delicate strings to booming snares and brass.
Key Features
- Modeling Capability: 13 iconic microphone emulations, selectable in real time or via plugins
- High SPL Handling: Handles up to 146 dB SPL; includes –10 dB and –20 dB pads
- Filters: Switchable high-pass filters at 75 Hz and 115 Hz to reduce low-end rumble
- Mic Design: Back-electret small diaphragm, cardioid polar pattern
- Sound Quality: Transparent, detailed, and neutral response for accurate modeling
- Connectivity: Powered by 48 V phantom; standard XLR output
- Durability: Rugged matte black metal housing
Technical Specifications
- Diaphragm Diameter: 16.1 mm
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz – 20 kHz
- Sensitivity: –42 dB / 8 mV/Pa (±3 dB)
- SNR / Self-Noise: 69 dB(A)
- Max SPL: 146 dB
- Pads: –10 dB, –20 dB
- High-Pass Filters: 75 Hz, 115 Hz
- Output Impedance: 65 Ω
- Power Requirement: 48 V Phantom Power
- Dimensions: 11.4 cm × 2.0 cm (4.5″ × 0.8″)
- Weight: 0.56 kg (1.23 lbs)
Included in the Box
- 1x Edge Note microphone
- 1x Shock mount
- 1x Getting started leaflet
