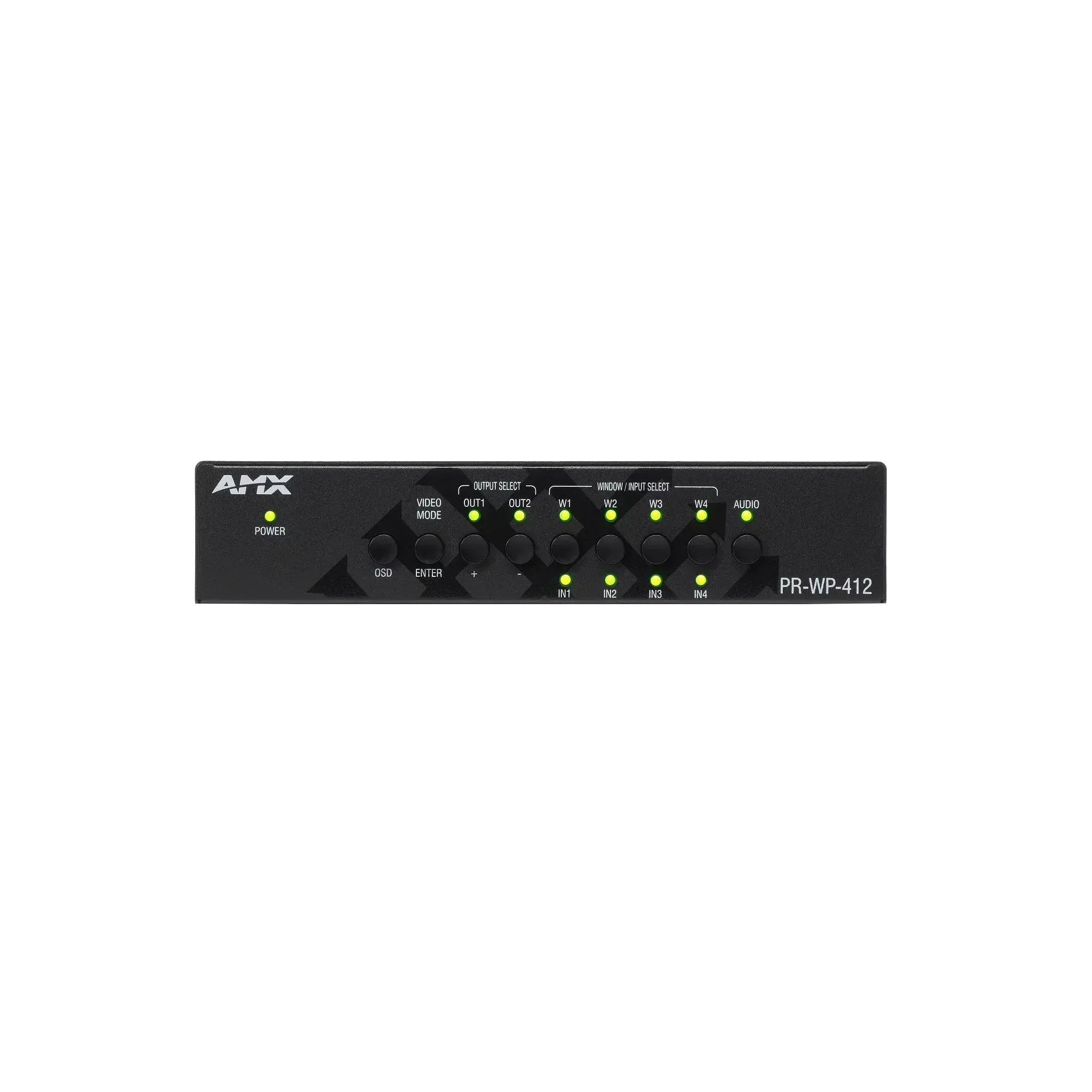

AMX PR-WP-412 Precis 4 x 1+1 4K60 HDMI Windowing Processor
The PR-WP-412 is an incredibly versatile and powerful AVsolution that is both a fully featured 4×1+1 windowing processor with mirroredoutputs and a 4×2 seamless matrix switcher. When configured as a windowingprocessor, the four video inputs can be arranged in any configuration andcomposited into a single output. In matrix switcher mode, the PR-WP-412 acts asa 4×2 seamless video switcher. It is loaded with best-in-class features,including truly seamless switching, class-leading 4K60 4:4:4 video quality,integrated audio breakaway, and extreme control flexibility with an opencontrol API, a simple-to-manage HTML5 web interface, and front panel controls.
When paired with the AMX UVC1-4K USB Capture Device, thePR-WP-412 is an ideal complement to software video conferencing systems such asZoom and Teams as it enables multiple sources to be shared at the same time.With an open API and full 4K60 support, the PR-WP-412 can be leveraged toenable creative solutions to unique design requirements in all types ofapplications.
Key Features
- Perfect HDMI 2.0 4K60 4:4:4 Video – Ideal for users runningcritical viewing applications such as casinos and courtrooms that can benefitfrom processing the full fidelity of their displays
- High Dynamic Range (HDR) Support – Support HDR10 in MatrixMode
- HDCP 2.2 – Supports the latest video standards to realizethe full capabilities of HDMI interfaces
- Multi-windowing Processing – Up to four simultaneous, freelyscalable windows can be processed using the 4×1+1 multi-windowing mode
- Seamless Switching – Ensures uninterrupted screentransitions during source selections when switching in 4×2 matrix mode
- Audio Pass-Through & De-Embedding – Empowers independentaudio source selection and routing to HDMI outputs in all modes
- H-Control Upgradable – Ready to support H-control in thefuture by firmware re-writing via USB
- Multiple Control Options – Multiple control options areavailable including: Open API Control over IP and Serial, full Web GUI console,and front panel buttons
Technical Specifications
Video Inputs
(4) HDMI; supports HDMI/HDCP
Video Outputs
(2) HDMI; supports HDMI/HDCP
Video Resolution Support
Various up to 4096 x 2160@ 60 Hz – Reference Data Sheet forSpecific Resolution Support
Audio Inputs
Embedded audio on HDMI; supports 2 CH L-PCM de-embedding andpass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby DigitalPlus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA
Audio Outputs
(2) 3 Position 3.5mm pluggable Phoenix Terminal Block;supports Unbalanced Analog Stereo
Ports
12V Power: (1) Screw Down Locking Power Connector; HDMIInput: (4) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet:(1) RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggablePhoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable PhoenixTerminal Block; Program Port: (1) USB Type A Socket
Environmental
Temperature (Operating): 32 Degrees F (0 Degrees C) to 122Degrees F (50 Degrees C)
Temperature (Storage): -4 Degrees F (-20 Degrees C) to 140Degrees F (60 Degrees C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): 77.1 BTU/hr
Regulatory Compliance
FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D)
1.73” x 8.4” x 8.07” (4.4 cm x 21.35 cm x 20.5 cm)
Weight
3.1 lbs (1.4 kg)
FG Numbers
AMX-PR-WP-412
