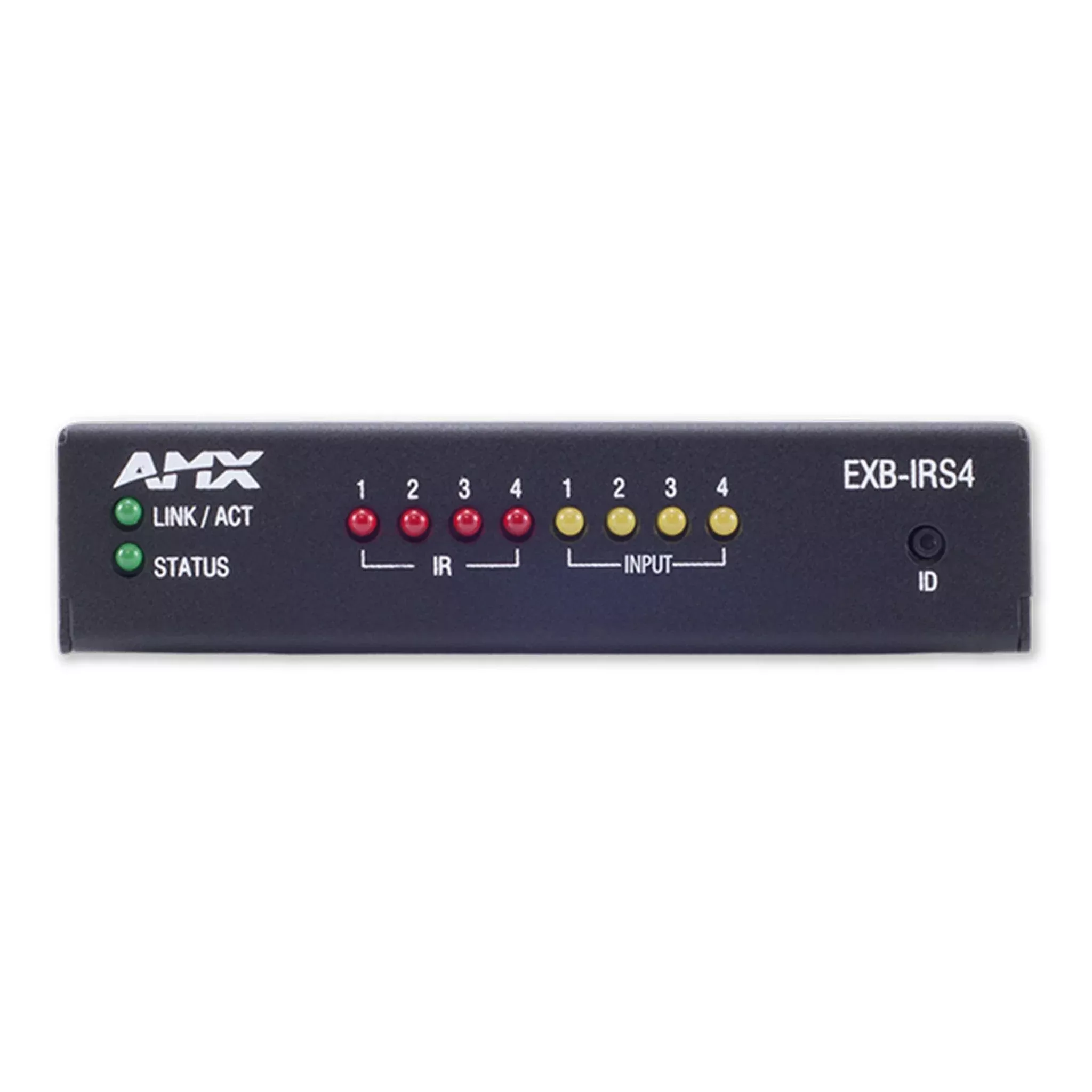

AMX EXB-IRS4 ICSLan Device Control Box
ICSLan Device Control Boxes allow users to manage devicesremotely from a Controller over an Ethernet network. This provides abeautifully simple method for a centralized control environment allowing usersto share a controller among multiple smaller rooms versus controllers in everyroom. Ethernet has become the industry standard for connecting devices and theICSLan Device Control Boxes make it easy to introduce control to equipment suchas projectors located extended distances from a Controller. Additionally, thenumber of ports on an AMX Controller can be expanded when all ports are fullypopulated. Because they employ Native NetLinx technology, it is extremelysimple to add an EXB to an AMX installation.
Key Features
- Enable Ports over Ethernet – Provides a future proofsolution to add ports anywhere
- Easy to Program – Programming is identical to any otherdevice ports on the Controller
- Power over Ethernet – Eliminate the need for a power sourceat the install location
- Small Form Factor – Compact design makes it easy to hide fora clean installation
- NetLinx Studio Tools – Configuration tools make ICSLanDevice Control Boxes easy to deploy
Technical Specifications
Dimensions (HWD)
1” x 4 3/8” x 5 1/8” (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight
1 lb (454 g)
Power Over Ethernet (PoE)
No local Power Supply needed
Power Draw
Typical power draw: 1.9 Watts, Max power draw: 2.4 Watts
Connectors
(1) RJ-45 ICS-LAN Ethernet Connector, (1) 8-Pin 3.5mmcaptive-screw terminal for I/R ports, (1) 6-Pin 3.5mm captive-screw terminalfor inputs
FG Numbers
FG2100-23
