AMX DXF-TX-MMS DXLink Multi-Format Multimode Fiber Transmitter, Simplex
The DXLink Multi-Format Fiber Transmitter sends analog anddigital audio and video signals including HDMI with HDCP up to 300 meters overmultimode fiber. Use the DXLink Fiber Transmitter in conjunction with the EnovaDGX 8, 16, 32 or 64 to transmit clear, uncompressed video at the fastest datarate in the industry – 10 Gbps.
Key Features
- HDCP Compliance Over Fiber – Transmit HDCP compliant videoincluding HDMI up to 300 m
- Industry Leading Data Rate – DXLink is leading the way withan optical transport rate of 10 Gbps
- Secure and Isolated – Fiber inherently provides extrasecurity and electrical isolation making it the transport method of choice formany mission-critical secure environments
- InstaGate Pro Technology – Easily integrate HDCP into systemdesigns and enjoy hassle free matrix switching to all compliant displays, notools, no delays and no key constraints – it just works
- Field Serviceable Fiber Modules – Easily remove and replaceSFP modules in the field
- Multi-Format Analog Port and HDMI Port – Supports legacyanalog signals – RGBHV, Component, S-Video, and Composite, and digitalHDMI/HDCP, DisplayPort and DVI signals
Technical Specifications
Dimensions (HWD)
1” x 8 3/4” x 5 1/5” (2.54 cm x 22.12 cm x 13.08 cm)
DxLink Fiber
Fiber Connector: LC Duplex conforming to ANSI TIA/EIA 604-10(FOCIS 10A); Fiber Cable Type: 50/125µm; Fiber Cable Length: 300 m (984 ft)
USB (HID)
(1) USB Mini A/B Connector (“HOST”)
Front Connectors
Advanced Configuration Interface: (1) USB Mini-B Connector (“PROGRAM”);Local Loopback Output Connector: (1) HDMI Type A Female, non-scaling (“LOCALOUT”)

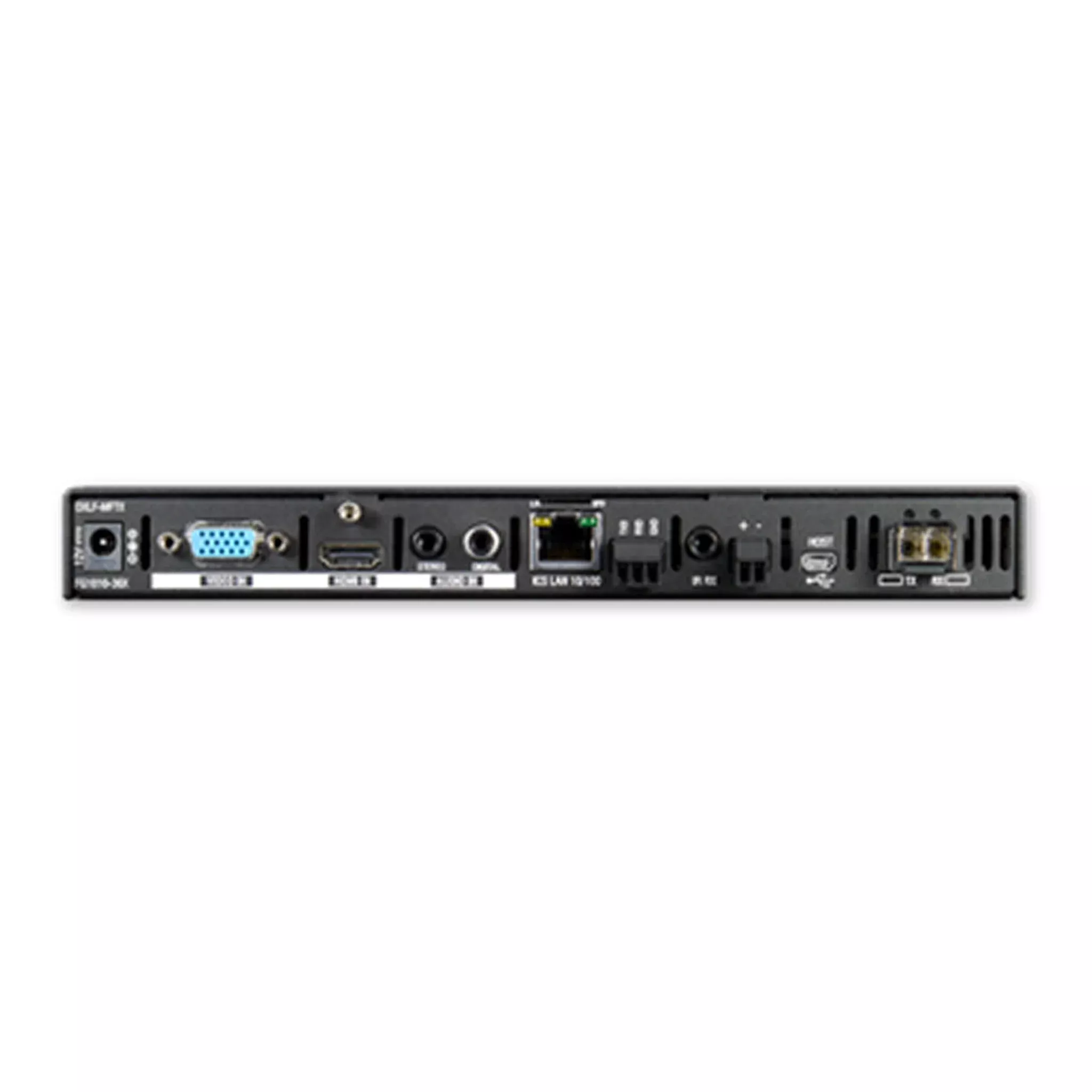

Back Connectors
Video Input: (1) HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c /S-Video, composite (breakout cable is required for RGB formats); HDMI Input:(1) HDMI Type A Female; Analog Stereo Input: (1) 3.5mm Mini-Stereo Jack; S/PDIFDigital Audio Input: (1) RCA Jack
HDMI
Compatible Formats: HDMI, HDCP, DVI
HDMI Support
Progressive Resolution Support: 480p up to 1920×1200 @ 60Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio
Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HDMaster Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to48kHz, 5.1 channels; Audio Resolution: 16 bits to 24 bits
HDCP & DDC/EDID
HDCP Support: Supports AMX HDCP InstaGate Pro Technology.DXLink fiber products have HDCP key support for up to 16 sinks per output,independent of source device; DDC/EDID Support: Yes
Analog Video Compatible Formats
RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C(Composite)
Analog Video Resolution Support
Progressive Resolution Support: 480p up to 1920×1200 @ 60Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF)
S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM,Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16to 24 bits
FG Numbers
FG1010-363
