AJA HD/SD SDI Distribution Amplifier/Repeater

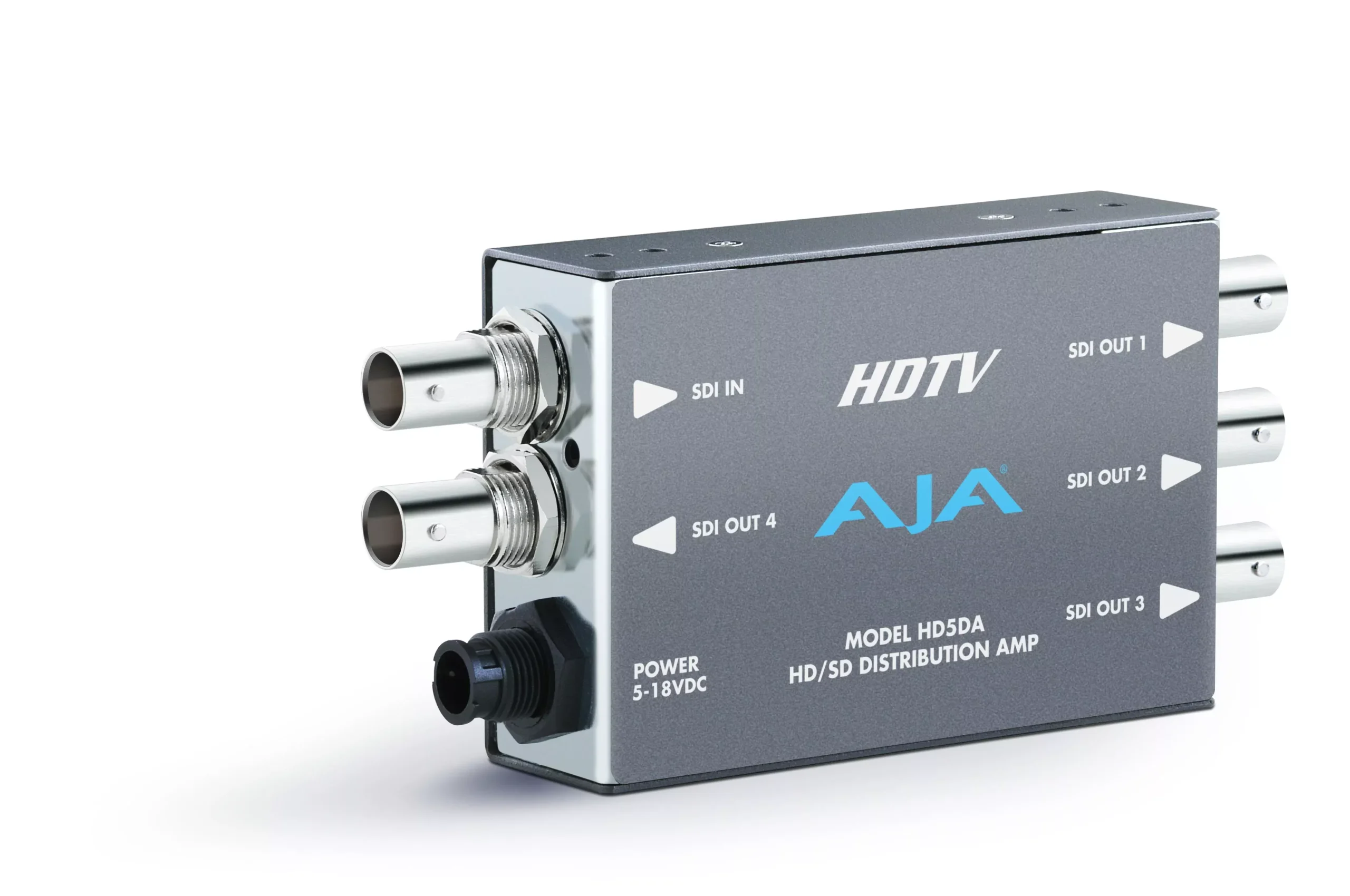

The AJA HD/SD SDI Distribution Amplifier/Repeater is a miniature 1×4 unit that takes a single HD-SDI or SDI input and feeds four separately buffered outputs. It is a low cost answer for sending one serial digital signal to multiple monitors, recorders, or downstream devices, and its small footprint fits behind a monitor, in the back of a rack, or directly on a camera rig.
Automatic input cable equalization recovers signals over runs up to 100 meters, and the unit adapts on its own to 143, 177, 270, and 360 Mb plus 1.5 Gb rates, also serving as a low cost repeater. Return loss is better than 15 dB to 270 MHz, power draw is 2.5 watts from the included supply, and a locking power connector keeps the unit from accidentally coming unplugged.
Key Features
- 1×4 HD-SDI/SDI distribution with four separately buffered outputs
- Automatic input cable equalization to 100 meters
- Auto-adapts to 143, 177, 270, and 360 Mb plus 1.5 Gb rates
- Doubles as a low cost SDI repeater
- Return loss greater than 15 dB to 270 MHz
- Miniature chassis with locking power connector; power supply included
Specifications
- 1.5 Gb, 143, 177, 270, 360 Mb, Auto Select
- 1 HD-SDI, SDI (SMPTE 292/296), 1x BNC
- 4 HD-SDI, SDI, 4x BNC
- Equalizing
- >15dB – 270 Mhz (Input and Output)
- 5.8″ x 2.4″ x 1.0″ (131 x 61 x 25mm)
- 5-18 VDC Regulated, 2.5 watts, power supply required, included
- with purchase
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
- Formats
- Inputs
- Outputs
- Return Loss
- Size (w x d x h)
- Power
- Environment
What’s Included
- 1 XHD/SD SDI Distribution Amplifier/Repeater
- Industry Leading Support
- AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
- Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
