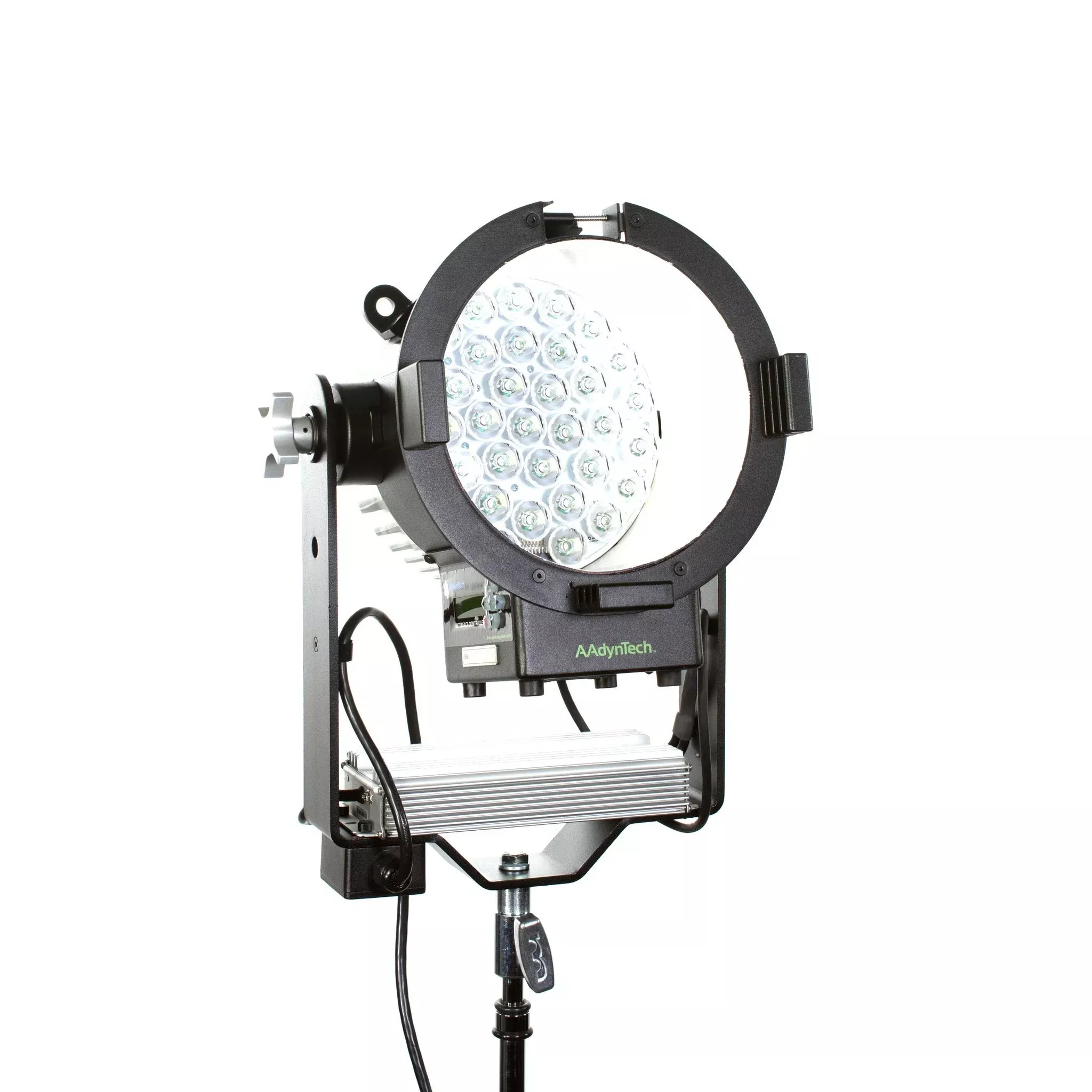

The AAdynTech JAB Variable Cinema 6000K LED Fixture,manufactured by AAdynTech, offers a wide range of adjustable color temperaturesfrom 2,800°K to 6,000°K. With an impressive output of 1,414 fc at a distance of10 feet, this lighting fixture is truly remarkable. What sets it apart is itslow power consumption, drawing only 1.78 amp at full output. Additionally, itcan be powered by a 48v DC battery, making it ideal for situations wheretraditional A/C supply is not available or problematic.
One of the standout features of the Variable is its opticalefficiency, which provides a single light source, eliminating multiple shadows.It comes with four quick change lenses that allow for varying the beam angle,whether you need a spot, medium, or flood lighting effect. Despite theseadjustments, the Variable maintains a flat and even field of light.
Controlling the Variable is a breeze, thanks to its multipleoptions. It has a built-in User Interface Module (UIM) with a Kelvintemperature display, allowing for easy adjustments. Alternatively, it can becontrolled via DMX with DMX loop-thru or with the optional corded UIMController, which also displays the Kelvin temperature. The Variable comes witha heavy-duty yoke and offers a range of accessory options, including barndoors, ATA Mil-spec Road cases, speed rings, light banks, filters, and more. Itis available in several Kit versions, each housed in a rugged Mil-Specwaterproof molded rolling case. When you need precise color temperature controland reliable even lighting, the JAB Variable Cinema by AAdynTech is unmatchedin its performance and versatility.
Key Features
- Output of 1,414-foot candle @ 10 feet
- Adjustable color temperature range of 2,800°K to 6,000°K
- Accurate color temperature readout on UIM
- Draws only 1.78 amp at full output
- Can be operated at 48v DC battery power
- Up to 90% energy savings
- Precise brightness control with no color shift
- Single light source eliminates multiple shadows
- No heat generation, operates cool to the touch
- No need for head cables, ballast, or spare lamps
- Optional corded digital User Interface Module (UIM) control
- Certified UL, ETL, CSA, CE & RoHS compliant
- 2-year warranty on fixture
- Full DMX control with DMX loop-thru
- Programmable multiple lightning and strobe effects
- Multiple user memory storage with recall
- Recalibration countdown hour ‘smart’ meter
- 5-pin XLR DMX In/Out
Technical Specifications
Control
Local, UIM, DMX
Source
LED, 2,800K to 6,000°K, 92+ CRI
Cooling
Passive
Mounting
Baby Pin or Junior
Certifications
ETL, UL, CSA, CE and RoHS Compliant
Dimensions
Length
339.0 mm / 13.3 in
Width
326.5 mm / 12.9 in
Height
554.9 mm / 21.8 in
Weight
8.9 kg / 19.5 lbs
Power
Input Voltage
100-277v AC Battery (48v DC)
Input Freq
50/60 Hz
Input Current
1.78 Amp @ 120V 212 Watts @ full
Connection
US NEMA 5-15
RoHS Compliant
Variable Kelvin – 2800k to 6000k
Dimmable with no color shift
Draws 1.78 amps at max output
No Harmful UV or IR Radiation
